Brand: TP-Link | Category: Network Switches
SKU: SG2008P | Part #: SG2008P | MPN: SG2008P
Contact for Pricing — Request a Quote

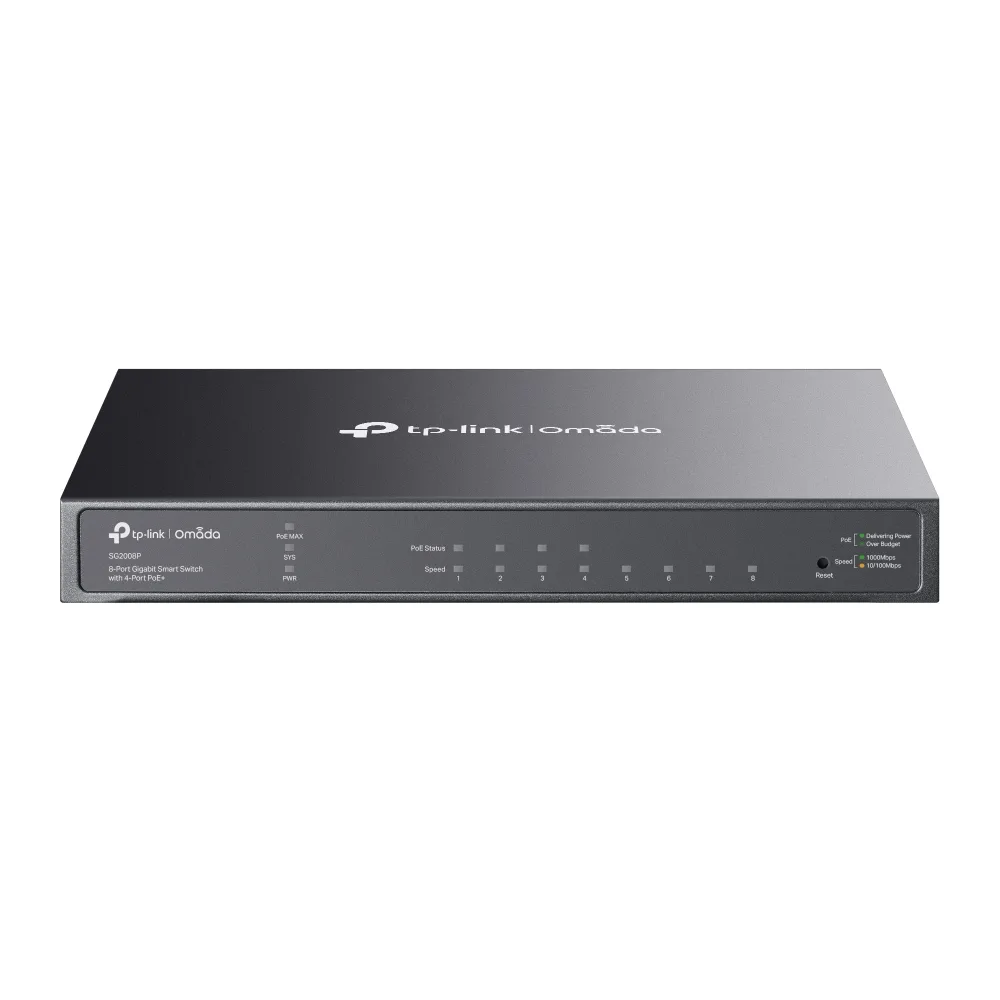

The TP-Link Omada SG2008P is an 8-port managed Gigabit desktop switch with PoE+ on 4 ports and a 62W PoE budget. All eight RJ-45 ports support 10/100/1000 Mbps with auto-negotiation and Auto MDI/MDI-X. The fanless design suits installations where silent operation matters.
Management features include support for up to 4094 VLANs, link aggregation, spanning tree, port mirroring, rate limiting, broadcast storm control and flow control. The switch provides 8 queues, a 4.1 MB packet buffer, 9000-byte jumbo frames and an 8000-entry MAC address table. Supported standards include IEEE 802.1Q, 802.1p, 802.1x, 802.1s, 802.1w, 802.3ad, 802.3af and 802.3at.
The SG2008P is suited to small offices, branch sites and desktop deployments that need managed switching and PoE power for devices such as access points or IP cameras.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | SG2008P |
| Part Number | SG2008P |
| Condition | New |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Number of VLANs | 4094 |
| VLAN support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Auto-negotiation | Yes |
| Port mirroring | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Fanless | Yes |
| Packet buffer memory | 4.1 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Number of queues | 8 |
| MAC address table | 8000 entries |
| Forwarding rate | 11.9 Mpps |
| Switching capacity | 16 Gbit/s |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| IPv4 & IPv6 features | IPv6 Telnet, IPv6 ping, IPv6 tracert |
| Management protocols | SNMPv1/v2c/v3 |
| Security algorithms | 802.1x RADIUS |
| MAC address filtering | Yes |
| Authentication | MAC-based authentication, Web-based authentication |
| Authentication type | RADIUS |
| IGMP snooping | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP snooping, DHCPv6 server, DHCPv6 snooping |
| MIB support | MIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs RMON MIB(RFC1757, rmon 1,2,3,9) |
| System event log | Yes |
| ARP inspection | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L2+ |
| Switch type | Managed |
| Power consumption (max) | 77.3 W |
The TP-Link Omada 8-PORT Managed Gigabit Desktop Switch, POE+(4), 62W is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Omada 8-PORT Managed Gigabit Desktop Switch, POE+(4), 62W: new condition; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 8; number of vlans 4094; vlan support Yes; flow control support Yes; link aggregation Yes. Manufacturer part number SG2008P. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link Omada 8-PORT Managed Gigabit Desktop Switch, POE+(4), 62W interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
