Brand: TP-Link | Category: Network Switches
SKU: SG2016P | Part #: SG2016P | MPN: SG2016P
Contact for Pricing — Request a Quote

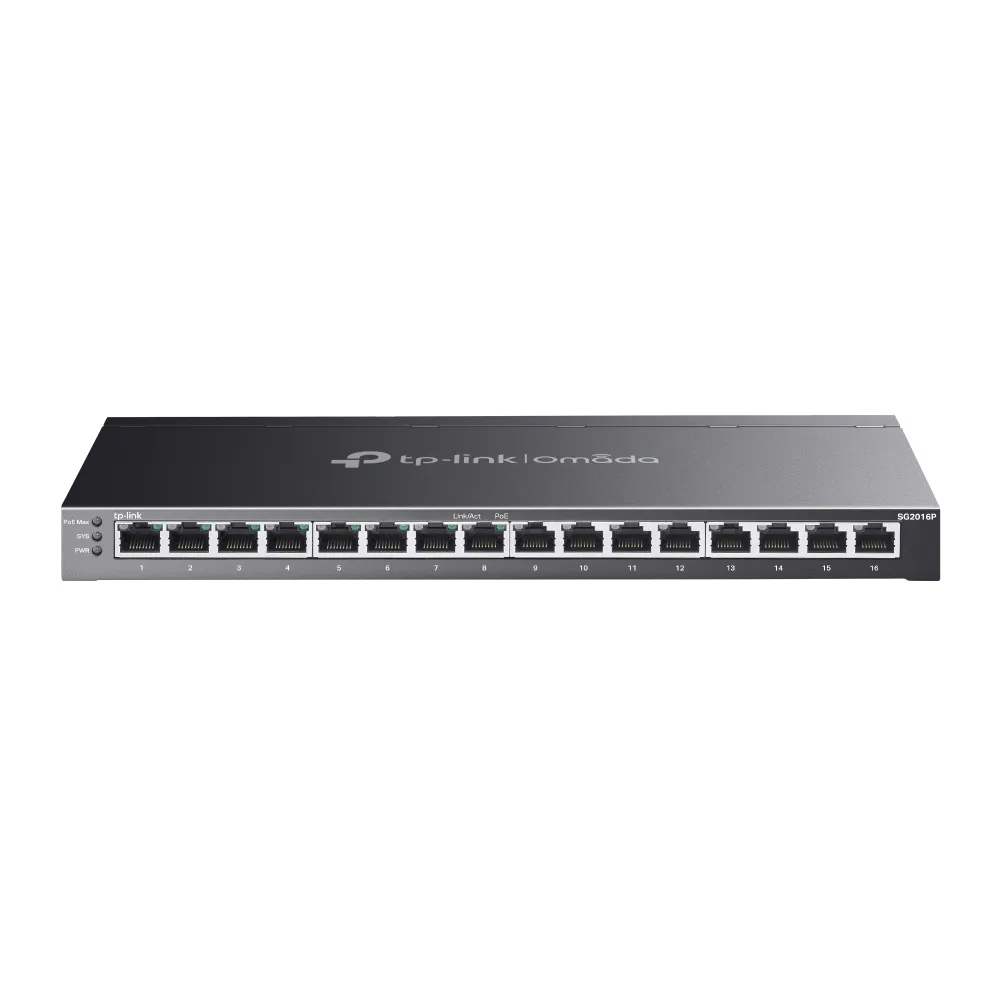

The TP-Link Omada SG2016P is a managed Gigabit desktop switch with 16 RJ-45 Ethernet ports supporting 10/100/1000 Mbit/s with auto-negotiation and Auto MDI/MDI-X. Eight ports provide PoE+ with a 120W power budget, in line with IEEE 802.3af and 802.3at, for powering compatible devices over the network cable. The switch is fanless and is powered through a DC-in jack.
Management features include support for up to 4000 VLANs with Tagged, Voice and Multicast VLAN options, link aggregation (IEEE 802.3ad), spanning tree protocol (IEEE 802.1D/802.1s), IEEE 802.1x, flow control, broadcast storm control, rate limiting and port mirroring. QoS prioritisation follows IEEE 802.1p, and the firmware is upgradeable.
The SG2016P suits small offices and branch networks where PoE-powered endpoints and managed VLAN segmentation are needed. Its fanless design makes it suitable for desk or shelf placement in noise-sensitive spaces.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | SG2016P |
| Part Number | SG2016P |
| Condition | New |
| Power connector | DC-in jack |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Number of VLANs | 4000 |
| Virtual LAN features | Multicast VLAN, Tagged VLAN, Voice VLAN |
| VLAN support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto-negotiation | Yes |
| Port mirroring | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x |
| Fanless | Yes |
| Firmware upgradeable | Yes |
| Packet buffer memory | 4.1 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Number of queues | 8 |
| MAC address table | 8000 entries |
| Forwarding rate | 23.81 Mpps |
| Switching capacity | 32 Gbit/s |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Supported network protocols | ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2 |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Security algorithms | EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
The TP-Link Omada 16-PORT Managed Gigabit Desktop Switch, POE+(8), 120W is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Omada 16-PORT Managed Gigabit Desktop Switch, POE+(8), 120W: new condition; power connector DC-in jack; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 16; number of vlans 4000; virtual lan features Multicast VLAN, Tagged VLAN, Voice VLAN; vlan support Yes. Manufacturer part number SG2016P. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link Omada 16-PORT Managed Gigabit Desktop Switch, POE+(8), 120W interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
