Brand: TP-Link | Category: Network Switches
SKU: SG2210MP | Part #: SG2210MP | MPN: SG2210MP
Contact for Pricing — Request a Quote

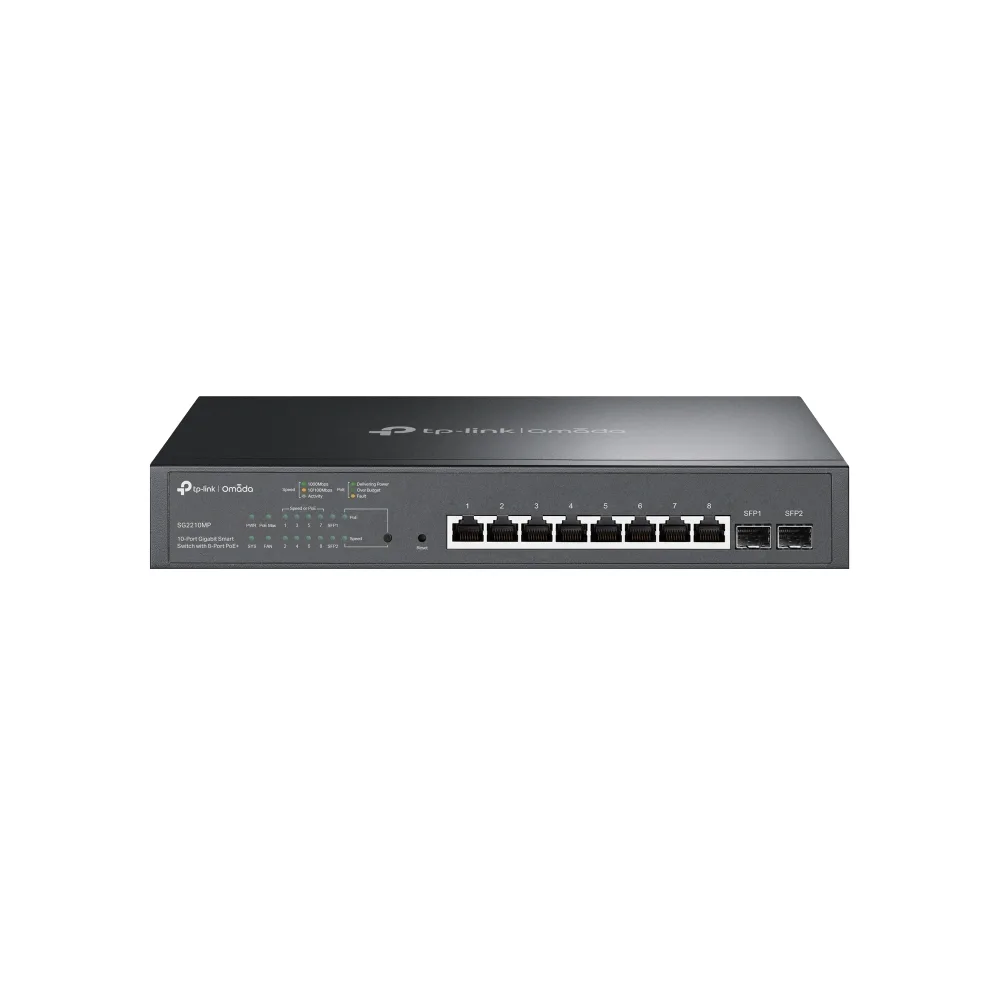

The TP-Link Omada SG2210MP is a 10-port managed Gigabit switch with eight 10/100/1000 RJ-45 ports offering PoE+ and two SFP slots. It supports IEEE 802.3af and 802.3at power delivery with a 150W PoE budget, so a single unit can supply both data and power to connected devices.
Layer 2 management features include support for up to 4000 VLANs, with MAC address-based, protocol-based, tagged, multicast and voice VLAN options. It also provides link aggregation (IEEE 802.3ad), spanning tree (802.1D, 802.1s, 802.1w), 802.1x authentication, 802.1p prioritisation with eight queues, rate limiting, broadcast storm control, flow control and port mirroring. The switch has 4.1 MB of packet buffer memory, supports 9000-byte jumbo frames and includes Energy Efficient Ethernet (802.3az).
The SG2210MP suits small offices and branch networks that need to power and manage PoE devices such as IP phones, wireless access points or IP cameras, with SFP uplinks for connection to the wider network.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | SG2210MP |
| Part Number | SG2210MP |
| Condition | New |
| SFP module slots quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Number of VLANs | 4000 |
| Virtual LAN features | MAC address-based VLAN, Multicast VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| VLAN support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Packet buffer memory | 4.1 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Number of queues | 8 |
| MAC address table | 8000 entries |
| Forwarding rate | 14.9 Mpps |
| Switching capacity | 20 Gbit/s |
| Total Power over Ethernet (PoE) budget | 150 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| Security algorithms | EAP-LEAP, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| MIB support | RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1213, RFC2233, RFC1643, RFC1493 |
| System event log | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Web-based management | Yes |
The TP-Link Omada 10-PORT Managed Gigabit Switch, POE+(8), SFP(2), 150W is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Omada 10-PORT Managed Gigabit Switch, POE+(8), SFP(2), 150W: new condition; sfp module slots quantity 2; gigabit ethernet (copper) ports quantity 8; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 8; number of vlans 4000; virtual lan features MAC address-based VLAN, Multicast VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN. Manufacturer part number SG2210MP. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link Omada 10-PORT Managed Gigabit Switch, POE+(8), SFP(2), 150W interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
