Brand: TP-Link | Category: Network Switches
SKU: SG2218 | Part #: SG2218 | MPN: SG2218
Contact for Pricing — Request a Quote

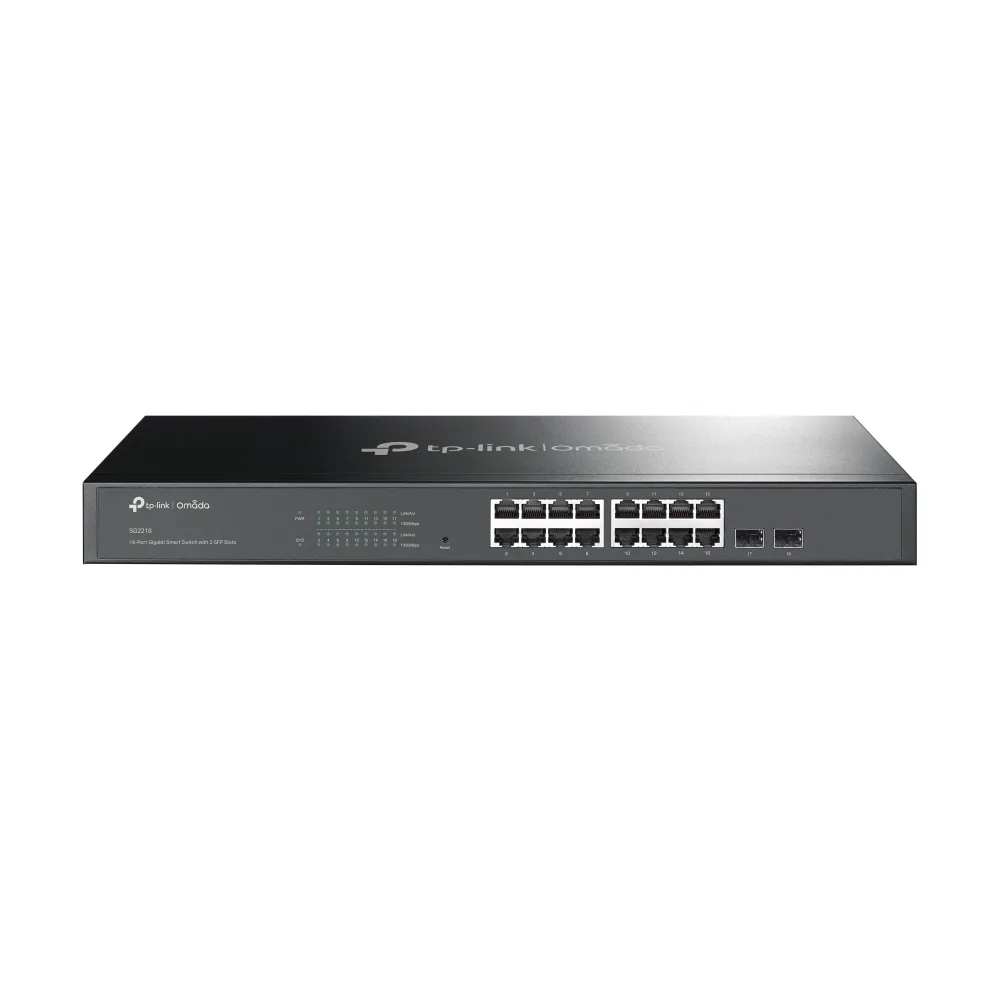

The TP-Link Omada SG2218 is a 16-port managed Gigabit rack switch. It provides 16 RJ-45 Gigabit Ethernet ports supporting 10/100/1000 Mbit/s data rates, plus 2 SFP module slots. The switch conforms to IEEE 802.3ab, 802.3i, 802.3u and 802.3z standards and has a fanless design.
Management features include VLAN support for up to 4000 VLANs, with port-based, private, protocol-based, tagged and voice VLAN options. It also supports link aggregation, spanning tree protocol, flow control, broadcast storm control, rate limiting and port mirroring. A 4.1 MB packet buffer and jumbo frame support up to 9000 bytes are included.
The SG2218 suits rack-mounted network installations where traffic needs to be segmented and managed, such as office networks, server rooms and branch sites using Gigabit copper connections.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | SG2218 |
| Part Number | SG2218 |
| Condition | New |
| SFP module slots quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Number of VLANs | 4000 |
| Virtual LAN features | Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| VLAN support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Port mirroring | Yes |
| 10G support | No |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Fanless | Yes |
| Packet buffer memory | 4.1 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Number of IP interfaces | 16 |
| Number of static routes | 32 |
| Static route | Yes |
| Store-and-forward | Yes |
| MAC address table | 8000 entries |
| Forwarding rate | 26.8 Mpps |
| Switching capacity | 36 Gbit/s |
| Power over Ethernet (PoE) | No |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| MIB support | Yes |
| System event log | Yes |
| ARP inspection | Yes |
| Web-based management | Yes |
The TP-Link Omada 16-PORT Managed Gigabit Rack Switch, GbE(16), SFP(2) is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Omada 16-PORT Managed Gigabit Rack Switch, GbE(16), SFP(2): new condition; sfp module slots quantity 2; gigabit ethernet (copper) ports quantity 16; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 16; number of vlans 4000; virtual lan features Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN. Manufacturer part number SG2218. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link Omada 16-PORT Managed Gigabit Rack Switch, GbE(16), SFP(2) interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
