Brand: TP-Link | Category: Network Switches
SKU: SG2452LP | Part #: SG2452LP | MPN: SG2452LP
Contact for Pricing — Request a Quote

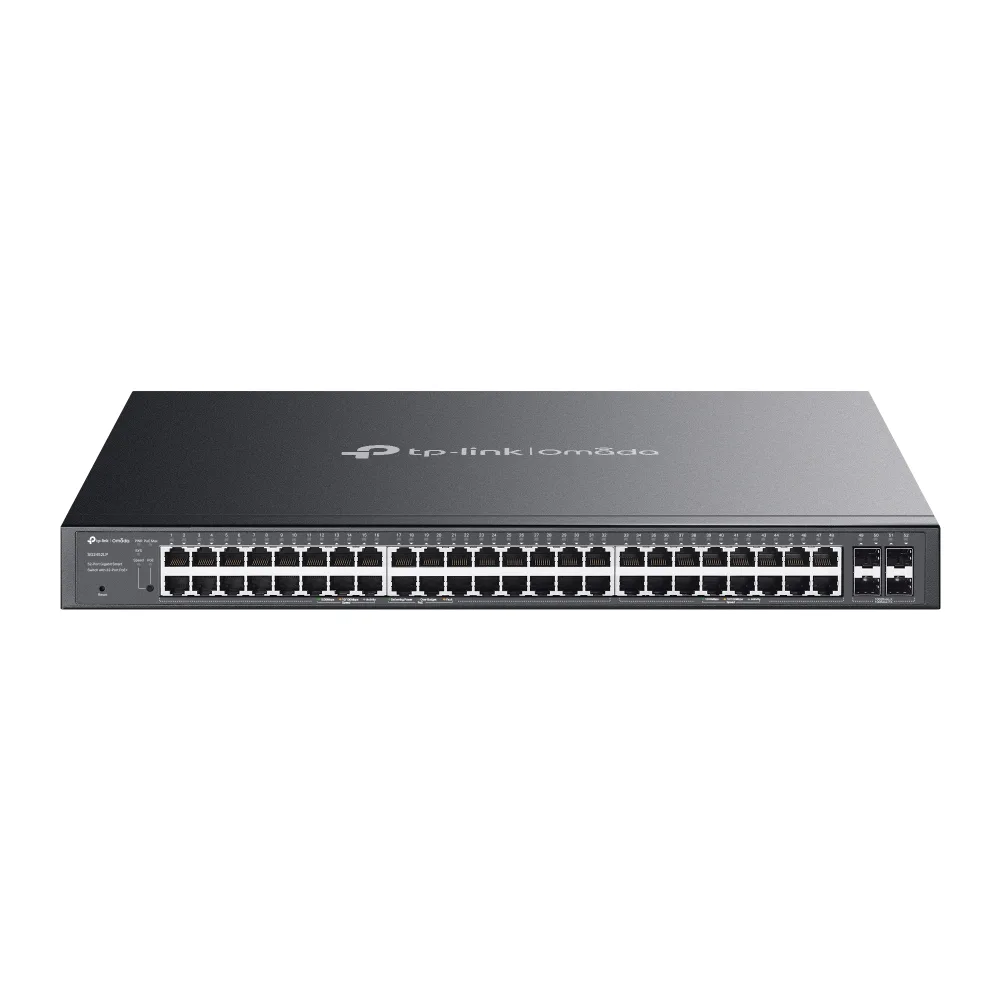

The TP-Link Omada SG2452LP is a 52-port managed Gigabit rack switch with 48 RJ-45 Gigabit Ethernet ports (10/100/1000 Mbit/s) and 4 SFP module slots. 32 of its ports provide PoE+, with a 230W power budget, and the unit is powered through an AC-in jack.
The switch offers 104 Gbit/s switching capacity, a 77.37 Mpps forwarding rate and a 16,000-entry MAC address table. Management features include VLAN support, link aggregation, port mirroring, flow control, static routing and IP routing, along with Auto MDI/MDI-X and active link detection. It supports jumbo frames up to 9000 and the IEEE 802.1Q, 802.1p, 802.3ab and 802.3x standards. It does not support 10G.
This switch is suited to rack-mounted access-layer deployments in business networks where PoE+ devices and wired endpoints share the same switch.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | SG2452LP |
| Part Number | SG2452LP |
| Condition | New |
| Power connector | AC-in jack |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| VLAN support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Active link detection | Yes |
| IP routing | Yes |
| Port mirroring | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3x |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Static route | Yes |
| MAC address table | 16000 entries |
| Forwarding rate | 77.37 Mpps |
| Switching capacity | 104 Gbit/s |
| Total Power over Ethernet (PoE) budget | 230 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 32 |
| Power over Ethernet (PoE) | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| Authentication type | RADIUS |
| IGMP snooping | Yes |
| DHCP features | DHCP relay, DHCP server |
| MIB support | Y |
| System event log | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L2+ |
| Switch type | Managed |
The TP-Link Omada 52-PORT Managed Gigabit Rack Switch, POE+(32), SFP(4), 230W is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Omada 52-PORT Managed Gigabit Rack Switch, POE+(32), SFP(4), 230W: new condition; power connector AC-in jack; sfp module slots quantity 4; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 48; vlan support Yes; flow control support Yes. Manufacturer part number SG2452LP. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link Omada 52-PORT Managed Gigabit Rack Switch, POE+(32), SFP(4), 230W interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
