Brand: TP-Link | Category: Network Switches
SKU: SG3428 | Part #: SG3428 | MPN: SG3428
Contact for Pricing — Request a Quote

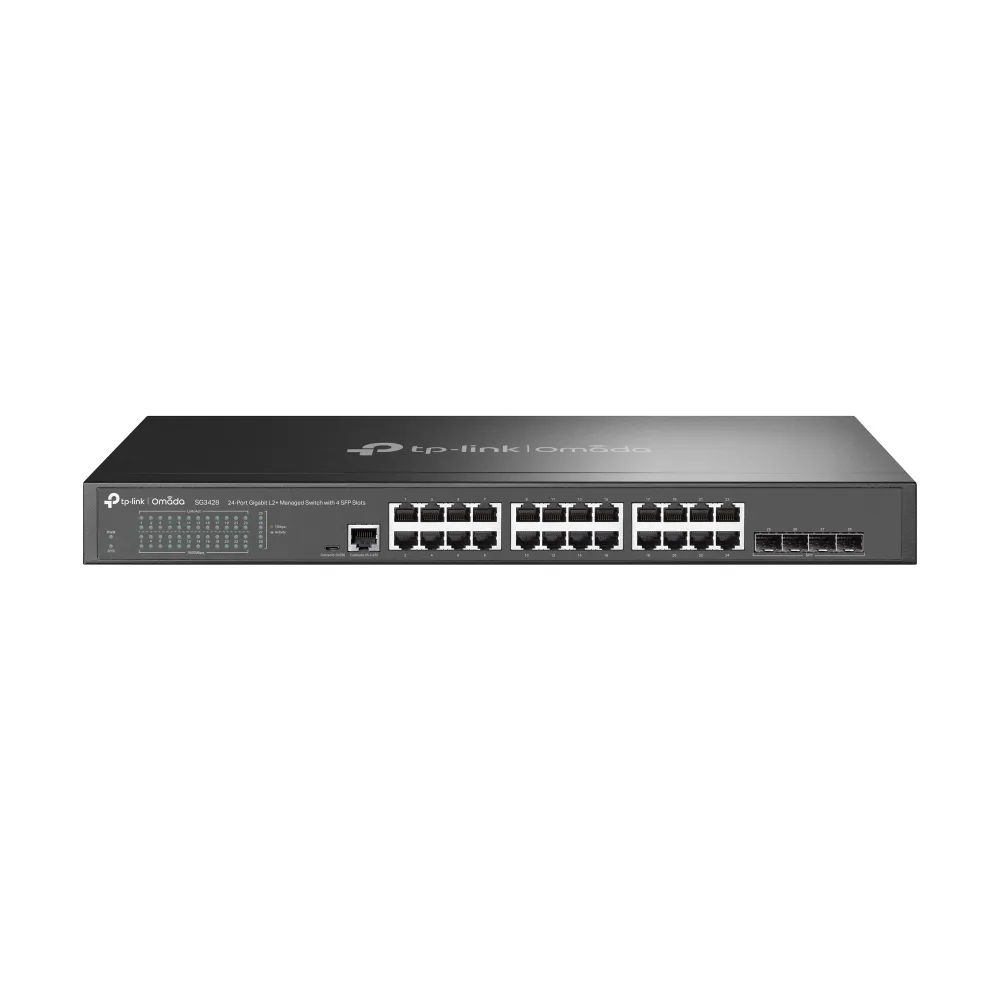

The TP-Link Omada SG3428 is a 24-port managed Gigabit L2 rack switch. It provides 24 Gigabit Ethernet RJ-45 ports supporting 10/100/1000 Mbit/s data rates, along with 4 SFP module slots. Management access is available through an RJ-45 or Micro-USB console port.
The switch supports up to 4000 VLANs, including private, protocol-based, tagged and voice VLANs. Traffic control features include flow control, link aggregation, broadcast storm control, rate limiting, spanning tree protocol, head-of-line blocking prevention and port mirroring. It also supports IP routing and policy-based routing, with 48 IPv4 routes and 48 IPv6 routes.
As a rack-mounted managed switch, the SG3428 suits business and enterprise networks that need segmented, controlled connectivity for wired devices. Its SFP slots allow connections to other network equipment.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | SG3428 |
| Part Number | SG3428 |
| Condition | New |
| Console port | RJ-45/Micro-USB |
| SFP module slots quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Number of VLANs | 4000 |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| VLAN support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| IP routing | Yes |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| 10G support | No |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Packet buffer memory | 12 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Number of static routes | 48 |
| Static route | Yes |
| Store-and-forward | Yes |
| MAC address table | 16000 entries |
| Forwarding rate | 41.66 Mpps |
| Switching capacity | 56 Gbit/s |
| Power over Ethernet (PoE) | No |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| MAC address filtering | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
The TP-Link Omada 24-PORT Managed Gigabit L2 Rack Switch, GbE(24), SFP(4) is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Omada 24-PORT Managed Gigabit L2 Rack Switch, GbE(24), SFP(4): new condition; console port RJ-45/Micro-USB; sfp module slots quantity 4; gigabit ethernet (copper) ports quantity 24; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 24; number of vlans 4000. Manufacturer part number SG3428. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link Omada 24-PORT Managed Gigabit L2 Rack Switch, GbE(24), SFP(4) interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
