Brand: TP-Link | Category: Network Switches
SKU: SG3428X-M2 | Part #: SG3428X-M2 | MPN: SG3428X-M2
Contact for Pricing — Request a Quote

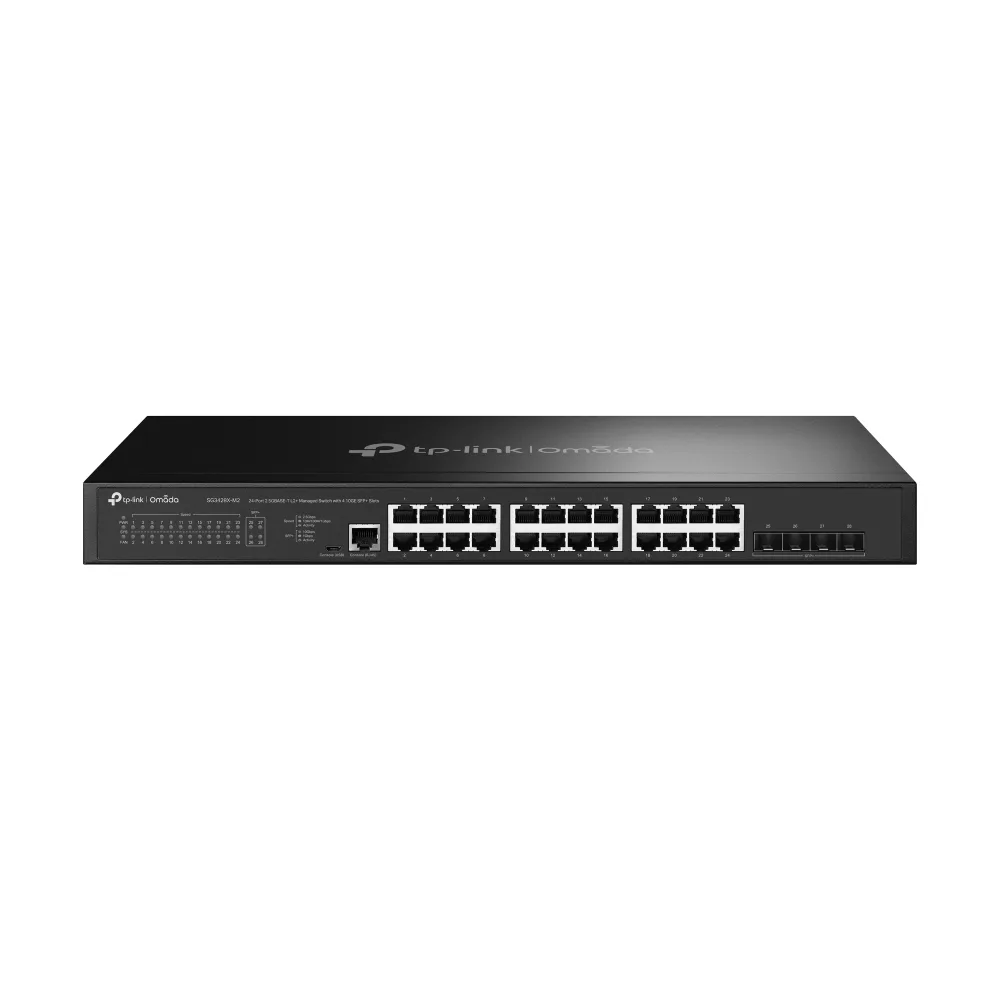

The TP-Link Omada SG3428X-M2 is a managed L2+ rack switch with 24 RJ-45 2.5G Ethernet ports supporting 100/1000/2500 speeds, plus 4 SFP+ module slots for 10G connectivity. Management access is provided through RJ-45 and Micro-USB console ports, and the unit is powered via an AC-in jack.
Layer 2 features include VLAN support with Private, Protocol-based, Tagged and Voice VLANs, along with link aggregation, spanning tree protocol, flow control, broadcast storm control, rate limiting, head-of-line blocking prevention, active link detection and port mirroring. L2+ capabilities cover 48 IPv4 routes, 48 IPv6 routes and policy-based routing.
This switch suits rack-mounted network deployments where multi-gigabit copper access and 10G SFP+ uplinks are needed, such as office access and aggregation layers, wireless access point backhaul and small business or branch networks requiring traffic segmentation and control.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | SG3428X-M2 |
| Part Number | SG3428X-M2 |
| Condition | New |
| Power connector | AC-in jack |
| Console port | RJ-45/Micro-USB |
| SFP+ module slots quantity | 4 |
| 2.5G Ethernet (copper) ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| VLAN support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Active link detection | Yes |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Packet buffer memory | 16 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Number of static routes | 48 |
| Static route | Yes |
| Store-and-forward | Yes |
| MAC address table | 32000 entries |
| Forwarding rate | 148.8 Mpps |
| Switching capacity | 200 Gbit/s |
| Power over Ethernet (PoE) | No |
| IPv6 FIB entries | 100 |
| IPv4 FIB entries | 100 |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Management protocols | SNMP v1/v2c/v3, SNTP |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
The TP-Link Omada 24-PORT Managed Gigabit L2+ Rack Switch, 2.5G(24), 10G SFP+(4) is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Omada 24-PORT Managed Gigabit L2+ Rack Switch, 2.5G(24), 10G SFP+(4): new condition; power connector AC-in jack; console port RJ-45/Micro-USB; sfp+ module slots quantity 4; 2.5g ethernet (copper) ports quantity 24; basic switching rj-45 ethernet ports type 2.5G Ethernet (100/1000/2500); basic switching rj-45 ethernet ports quantity 24. Manufacturer part number SG3428X-M2. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link Omada 24-PORT Managed Gigabit L2+ Rack Switch, 2.5G(24), 10G SFP+(4) interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
