Brand: TP-Link | Category: Network Switches
SKU: SG3452P | Part #: SG3452P | MPN: SG3452P
Contact for Pricing — Request a Quote

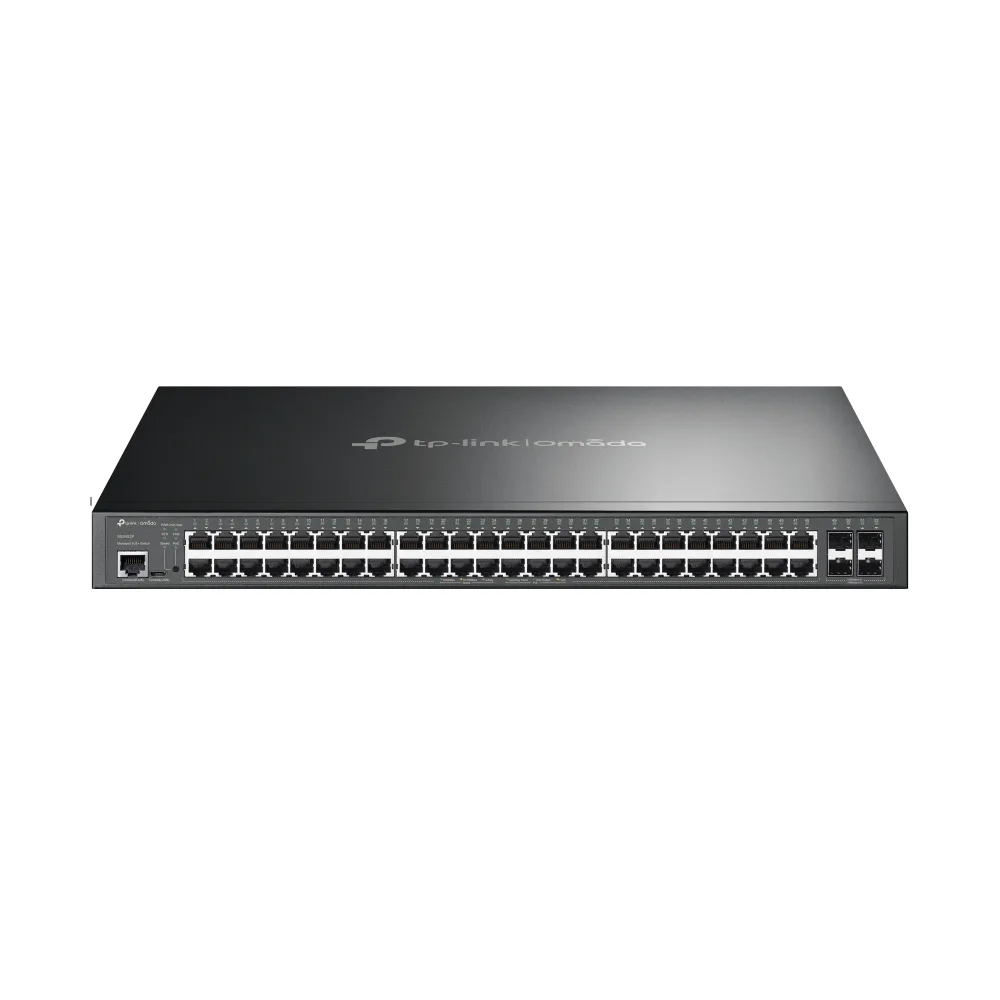

The TP-Link SG3452P is an Omada 52-port managed Gigabit L2+ rack switch. It provides 48 Gigabit Ethernet RJ-45 ports (10/100/1000 Mbit/s) with PoE+ and a 384W PoE budget, plus 4 SFP module slots for uplinks. Management access is through an RJ-45 or micro-USB console port, and the unit is powered via an AC-in jack.
The switch supports up to 4000 VLANs, including MAC address-based, private, protocol-based, tagged and voice VLANs. Traffic and resilience features include link aggregation, spanning tree protocol, flow control, rate limiting, broadcast storm control, head-of-line blocking prevention and active link detection. It also offers IP routing, policy-based routing and port mirroring. The switch does not support 10G.
This switch suits rack-mounted access and aggregation roles in business networks where PoE+ devices such as IP phones, wireless access points or IP cameras are powered and connected from a single managed unit.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | SG3452P |
| Part Number | SG3452P |
| Condition | New |
| Power connector | AC-in jack |
| Console port | RJ-45/micro-USB |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Number of VLANs | 4000 |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| VLAN support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Active link detection | Yes |
| IP routing | Yes |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x |
| Packet buffer memory | 12 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Number of static routes | 48 |
| Static route | Yes |
| Store-and-forward | Yes |
| MAC address table | 16000 entries |
| Forwarding rate | 77.38 Mpps |
| Switching capacity | 104 Gbit/s |
| Total Power over Ethernet (PoE) budget | 384 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Power over Ethernet (PoE) | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
The TP-Link Omada 52-PORT Managed Gigabit L2+ Rack Switch, POE+(48), SFP(4), 384W is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Omada 52-PORT Managed Gigabit L2+ Rack Switch, POE+(48), SFP(4), 384W: new condition; power connector AC-in jack; console port RJ-45/micro-USB; sfp module slots quantity 4; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 48; number of vlans 4000. Manufacturer part number SG3452P. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link Omada 52-PORT Managed Gigabit L2+ Rack Switch, POE+(48), SFP(4), 384W interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
