Brand: TP-Link | Category: Network Switches
SKU: SG3452XP | Part #: SG3452XP | MPN: SG3452XP
Contact for Pricing — Request a Quote

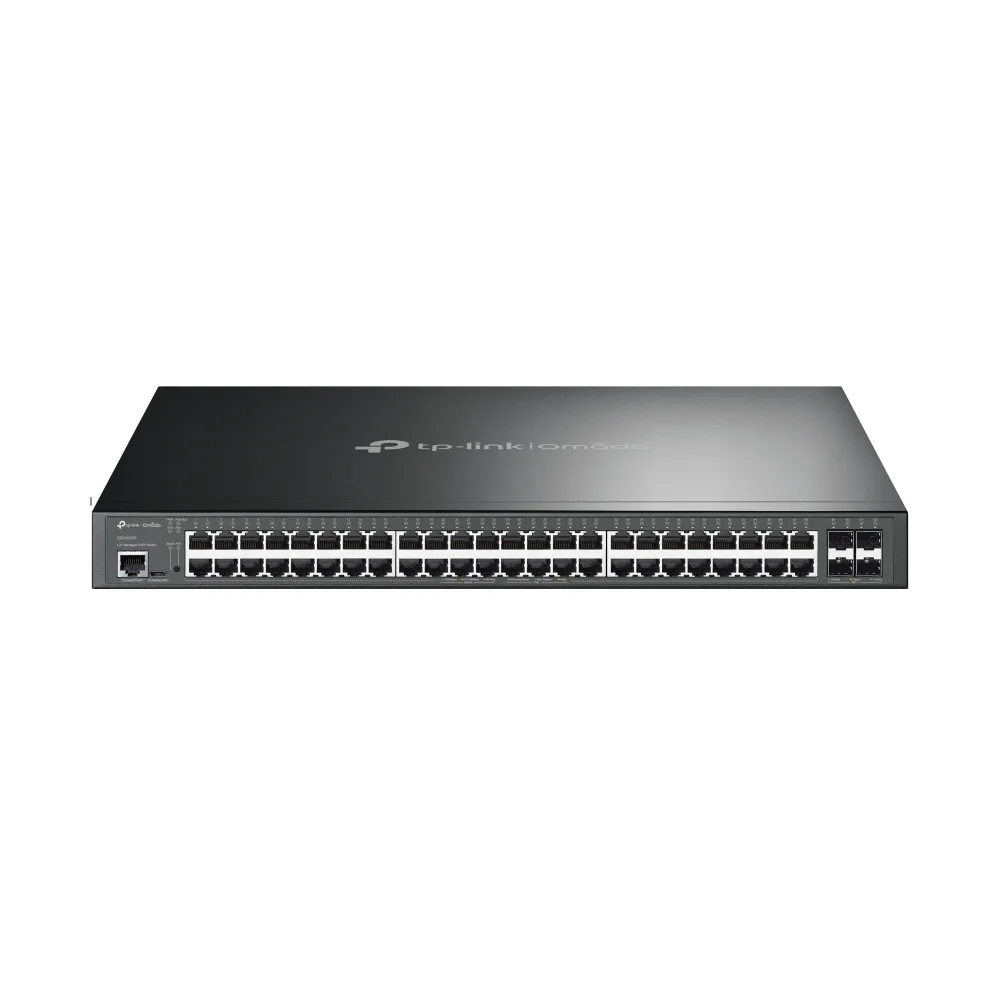

The TP-Link Omada SG3452XP is a 48-port managed Gigabit L2+ rack switch for network switching deployments. It provides 48 Gigabit Ethernet (10/100/1000) RJ-45 ports with PoE+ and four 10G SFP+ module slots for uplinks, with a 500W PoE+ power rating. Management access is available through RJ-45 and Micro-USB console ports, and power is supplied via an AC-in jack.
Layer 2 features include VLAN support, link aggregation, spanning tree protocol, port mirroring, flow control, rate limiting, broadcast storm control and head-of-line blocking prevention. The switch uses store-and-forward switching with 12 MB of packet buffer memory, a 16,000-entry MAC address table and 9000-byte jumbo frame support. Supported standards include IEEE 802.1D, 802.1Q, 802.1s, 802.1w, 802.3ab, 802.3ae, 802.3af, 802.3at, 802.3i, 802.3u and 802.3z.
It suits rack-mounted access or aggregation roles in business networks that power PoE devices and connect to the core over 10G uplinks.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | SG3452XP |
| Part Number | SG3452XP |
| Condition | New |
| Power connector | AC-in jack |
| Console port | RJ-45/Micro-USB |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| VLAN support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Packet buffer memory | 12 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| MAC address table | 16000 entries |
| Forwarding rate | 130.9 Mpps |
| Switching capacity | 176 Gbit/s |
| Total Power over Ethernet (PoE) budget | 500 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Power over Ethernet (PoE) | Yes |
| MAC address filtering | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Authentication | Auto VLAN, Guest VLAN |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server |
| System event log | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
The TP-Link Omada 48-PORT Managed Gigabit L2+ Rack Switch, POE+(48), 10G SFP+(4), 500W is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Omada 48-PORT Managed Gigabit L2+ Rack Switch, POE+(48), 10G SFP+(4), 500W: new condition; power connector AC-in jack; console port RJ-45/Micro-USB; sfp+ module slots quantity 4; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 48; vlan support Yes. Manufacturer part number SG3452XP. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link Omada 48-PORT Managed Gigabit L2+ Rack Switch, POE+(48), 10G SFP+(4), 500W interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
