Brand: TP-Link | Category: Network Switches
SKU: SG3452X | Part #: SG3452X | MPN: SG3452X
Contact for Pricing — Request a Quote

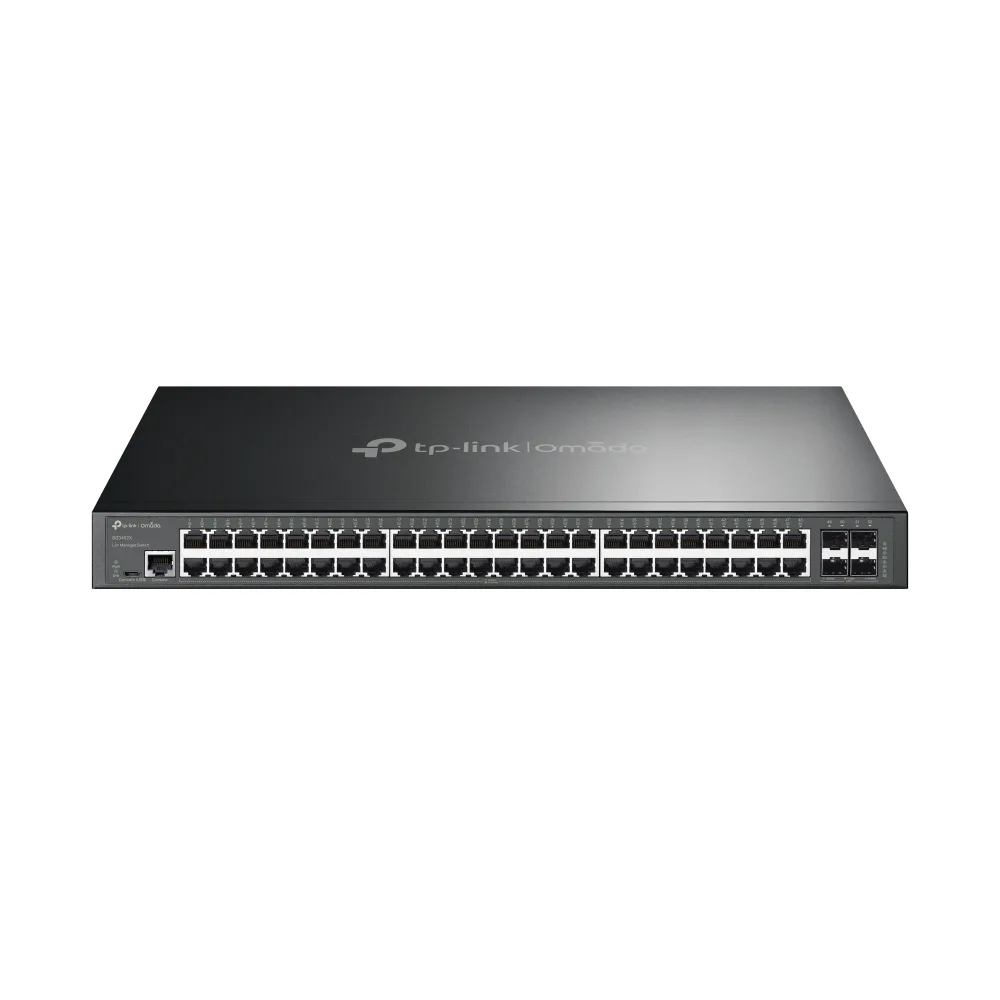

The TP-Link Omada SG3452X is a managed Gigabit L2+ rack switch with 48 Gigabit Ethernet (10/100/1000) RJ-45 ports and 4 10G SFP+ module slots. It has an AC-in power connector, an RJ-45/Micro-USB console port and 12 MB of packet buffer memory.
VLAN support covers up to 4000 VLANs, with Private VLAN, Tagged VLAN, VLAN mapping and Voice VLAN features. Traffic management functions include flow control, link aggregation, broadcast storm control, rate limiting, head-of-line (HOL) blocking prevention and port mirroring. The switch supports spanning tree protocol and 48 IPv4 and 48 IPv6 routes. Listed standards are IEEE 802.1D, 802.1Q, 802.1s, 802.1w and 802.3ad.
This type of rack-mounted managed switch is used for access or aggregation in office, campus and server room networks. The SFP+ slots provide 10G uplinks to core switches or servers.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | SG3452X |
| Part Number | SG3452X |
| Condition | New |
| Power connector | AC-in jack |
| Console port | RJ-45/Micro-USB |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Number of VLANs | 4000 |
| Virtual LAN features | Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN |
| VLAN support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad |
| Packet buffer memory | 12 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Number of static routes | 48 |
| Static route | Yes |
| MAC address table | 16000 entries |
| Forwarding rate | 130.9 Mpps |
| Switching capacity | 176 Gbit/s |
| Power over Ethernet (PoE) | No |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| MAC address filtering | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Authentication | Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication |
| Password protection | Yes |
| Authentication type | AAA, RADIUS, TACACS+ |
The TP-Link Omada 48-PORT Managed Gigabit L2+ Rack Switch, GbE (48), 10G SFP+(4) is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Omada 48-PORT Managed Gigabit L2+ Rack Switch, GbE (48), 10G SFP+(4): new condition; power connector AC-in jack; console port RJ-45/Micro-USB; sfp+ module slots quantity 4; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 48; number of vlans 4000. Manufacturer part number SG3452X. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link Omada 48-PORT Managed Gigabit L2+ Rack Switch, GbE (48), 10G SFP+(4) interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
