Brand: TP-Link | Category: Network Switches
SKU: SG3452 | Part #: SG3452 | MPN: SG3452
Contact for Pricing — Request a Quote

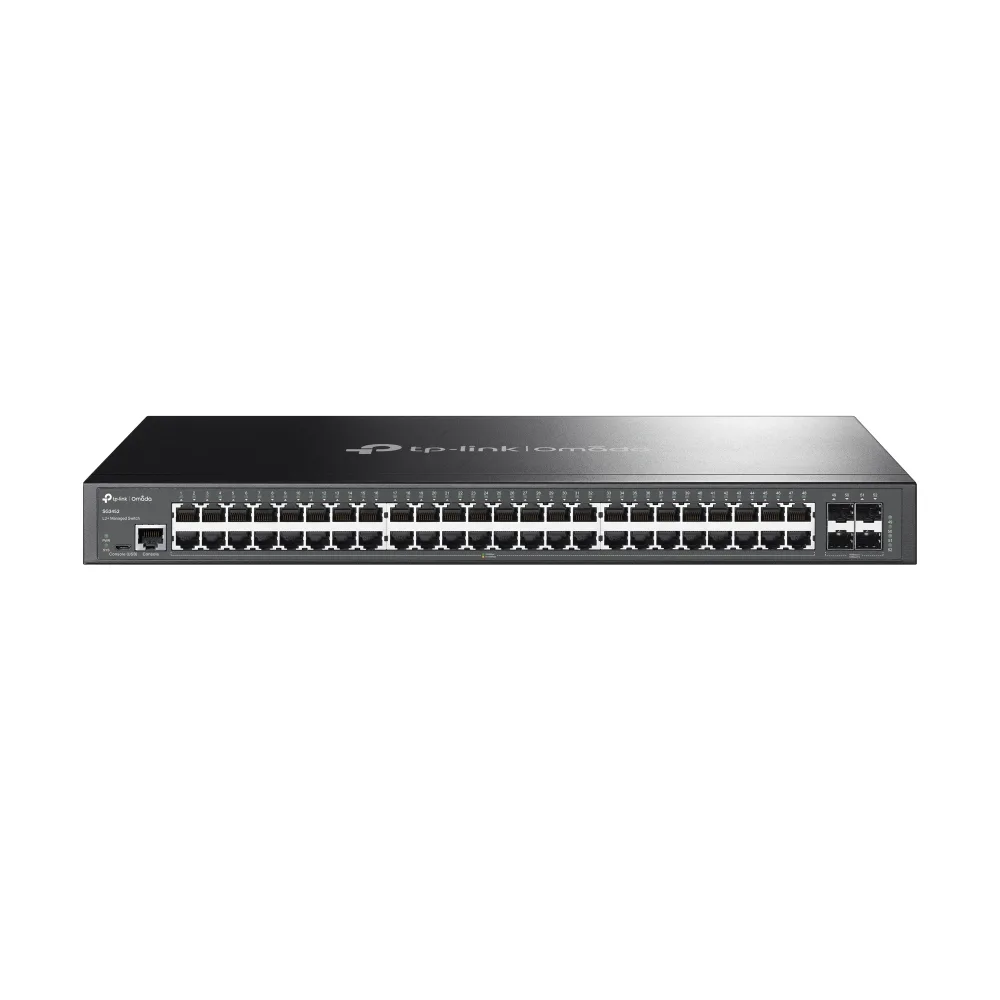

The TP-Link Omada SG3452 is a managed Gigabit L2+ rack switch with 48 Gigabit Ethernet (10/100/1000) RJ-45 ports and 4 SFP module slots. Management access is available through an RJ-45 or Micro-USB console port. Ethernet LAN data rates of 10, 100 and 1000 Mbit/s are supported, and the switch does not offer 10G support.
For network segmentation, the switch supports up to 4000 VLANs, including port-based, private, protocol-based, tagged and voice VLAN. Traffic management features include flow control, link aggregation, broadcast storm control, spanning tree protocol, head-of-line blocking prevention and port mirroring. L2+ capabilities cover IP routing and policy-based routing, with 48 IPv4 and 48 IPv6 routes.
With its rack form factor and high copper port count, the SG3452 suits access and aggregation roles in office networks, server rooms and wiring closets where many wired devices need managed Gigabit connectivity.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | SG3452 |
| Part Number | SG3452 |
| Condition | New |
| Console port | RJ-45/Micro-USB |
| SFP module slots quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Number of VLANs | 4000 |
| Virtual LAN features | Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| VLAN support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| IP routing | Yes |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Fanless | Yes |
| Flash memory | 32 MB |
| Internal memory | 256 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Store-and-forward | Yes |
| MAC address table | 16000 entries |
| Forwarding rate | 77.38 Mpps |
| Switching capacity | 104 Gbit/s |
| Power over Ethernet (PoE) | No |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
The TP-Link Omada 48-PORT Managed Gigabit L2+ Rack Switch, GbE (48), SFP(4) is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Omada 48-PORT Managed Gigabit L2+ Rack Switch, GbE (48), SFP(4): new condition; console port RJ-45/Micro-USB; sfp module slots quantity 4; gigabit ethernet (copper) ports quantity 48; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 48; number of vlans 4000. Manufacturer part number SG3452. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link Omada 48-PORT Managed Gigabit L2+ Rack Switch, GbE (48), SFP(4) interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
