Brand: TP-Link | Category: Network Switches
SKU: SG3428X | Part #: SG3428X | MPN: SG3428X
Contact for Pricing — Request a Quote

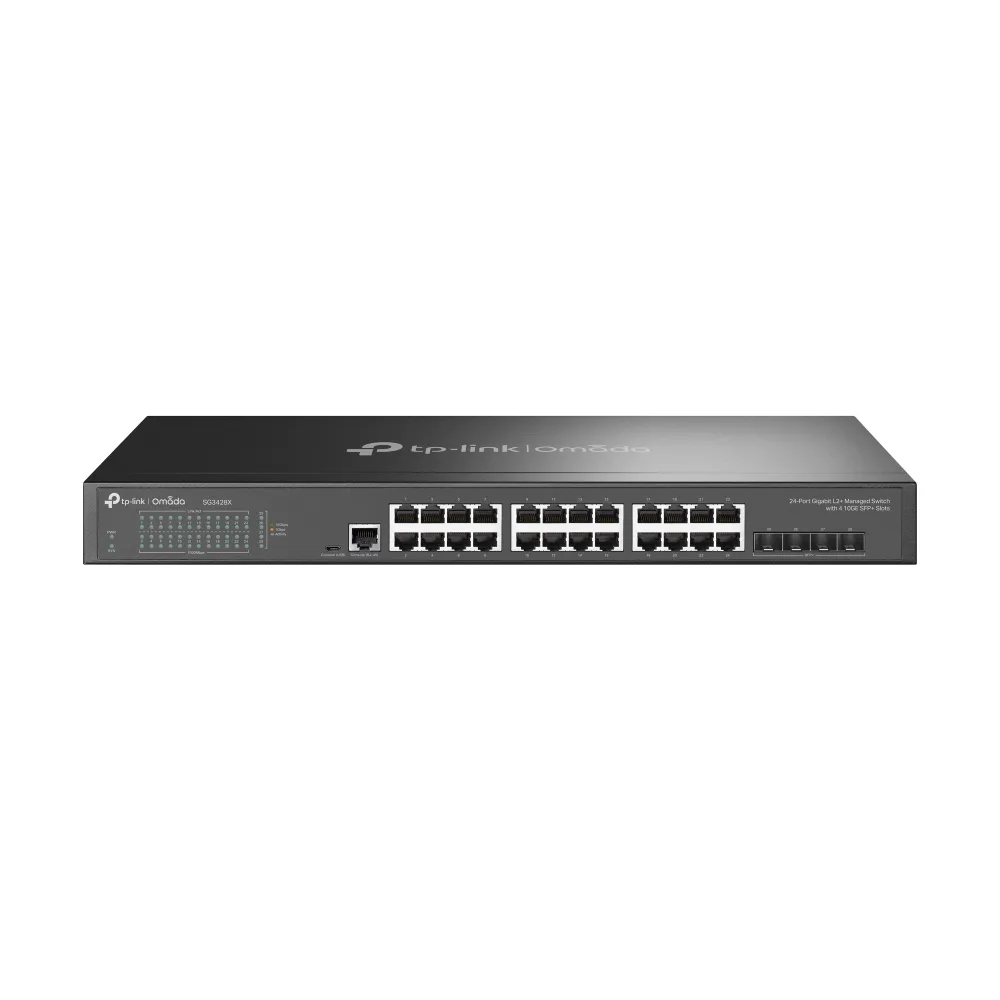

The TP-Link Omada SG3428X is a managed L2+ rack switch with 24 Gigabit Ethernet RJ-45 ports supporting 10/100/1000 Mbit/s, plus 4 SFP+ module slots for 10G connections. It is powered through an AC-in jack and provides RJ-45 and micro-USB console ports for management access.
Layer 2 features include support for up to 4000 VLANs, with Private VLAN, Protocol-based VLAN, Tagged VLAN and Voice VLAN. The switch also supports link aggregation, spanning tree protocol, flow control, broadcast storm control, rate limiting, head-of-line blocking prevention and active link detection. L2+ routing capabilities cover 48 IPv4 routes and 48 IPv6 routes, along with policy-based routing.
With Gigabit copper ports and SFP+ uplinks in a rack-mount format, the SG3428X suits access or aggregation roles in business networks, server rooms and wiring closets where VLAN segmentation and managed traffic control are required.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | SG3428X |
| Part Number | SG3428X |
| Condition | New |
| Power connector | AC-in jack |
| Console port | RJ-45/micro-USB |
| SFP+ module slots quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Number of VLANs | 4000 |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| VLAN support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Active link detection | Yes |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Fanless | Yes |
| Packet buffer memory | 12 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Number of static routes | 48 |
| Static route | Yes |
| Store-and-forward | Yes |
| MAC address table | 16000 entries |
| Forwarding rate | 95.23 Mpps |
| Switching capacity | 128 Gbit/s |
| Power over Ethernet (PoE) | No |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
The TP-Link Omada 24-PORT Managed Gigabit L2+ Rack Switch, GbE(24), 10G SFP+(4) is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Omada 24-PORT Managed Gigabit L2+ Rack Switch, GbE(24), 10G SFP+(4): new condition; power connector AC-in jack; console port RJ-45/micro-USB; sfp+ module slots quantity 4; gigabit ethernet (copper) ports quantity 24; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 24. Manufacturer part number SG3428X. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link Omada 24-PORT Managed Gigabit L2+ Rack Switch, GbE(24), 10G SFP+(4) interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
