Brand: TP-Link | Category: Network Switches
SKU: SG3428MP | Part #: SG3428MP | MPN: SG3428MP
Contact for Pricing — Request a Quote

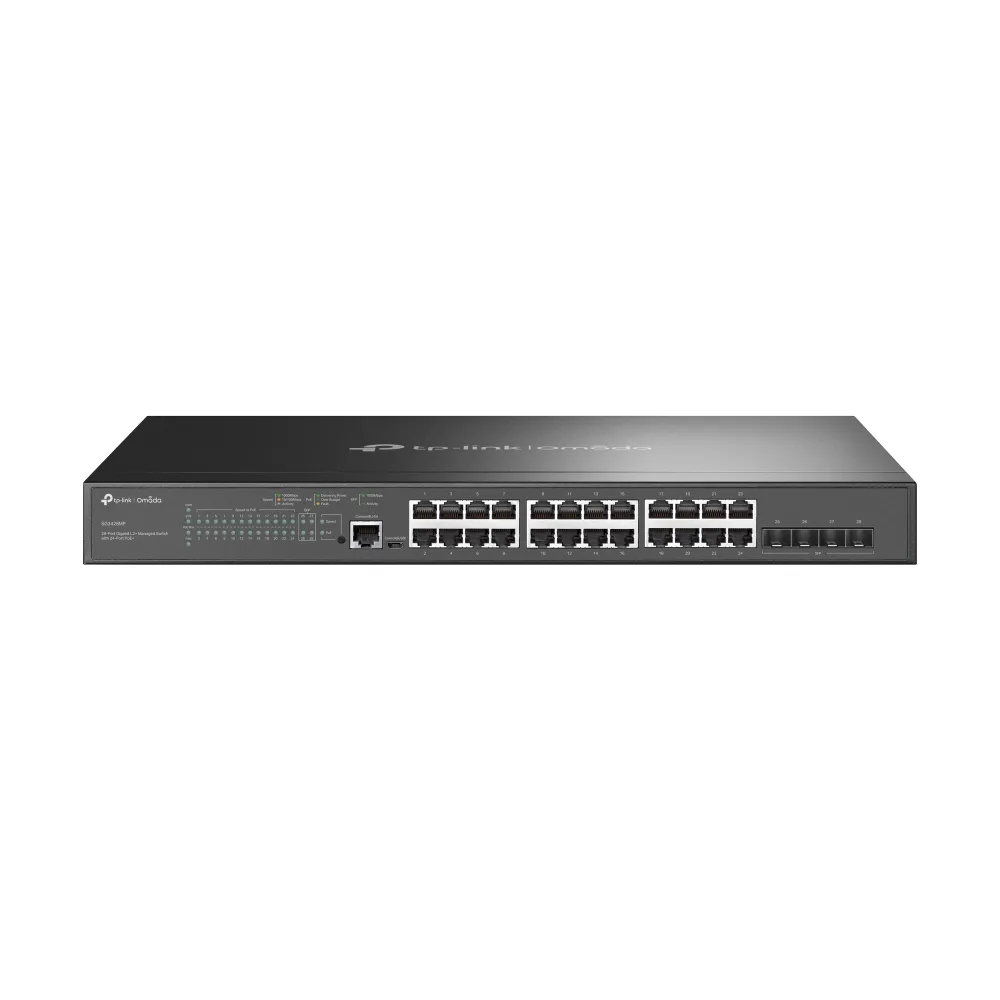

The TP-Link Omada SG3428MP is a 28-port managed Gigabit L2+ rack switch. It provides 24 Gigabit Ethernet RJ-45 ports supporting 10/100/1000 Mbit/s data rates, all with PoE+ and a 384W power budget, plus 4 SFP module slots. Management access is available through RJ-45 and Micro-USB console ports, and the unit is powered via an AC-in jack.
The switch supports up to 4000 VLANs, including MAC address-based, port-based, private, tagged and voice VLANs. Additional features include link aggregation, spanning tree protocol, flow control, broadcast storm control, rate limiting, port mirroring, head-of-line blocking prevention, active link detection and IP routing.
With PoE+ on all copper ports and rack-mount design, the SG3428MP suits business networks that power and connect devices such as wireless access points, IP phones and IP cameras, with SFP slots available for uplink connections.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | SG3428MP |
| Part Number | SG3428MP |
| Condition | New |
| Power connector | AC-in jack |
| Console port | RJ-45/Micro-USB |
| SFP module slots quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Number of VLANs | 4000 |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN |
| VLAN support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Active link detection | Yes |
| IP routing | Yes |
| Port mirroring | Yes |
| Copper ethernet cabling technology | 10BASE-T, 1000BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Export Control Classification Number (ECCN) | EAR99 |
| Packet buffer memory | 12 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| MAC address table | 16000 entries |
| Forwarding rate | 41.66 Mpps |
| Switching capacity | 56 Gbit/s |
| Total Power over Ethernet (PoE) budget | 384 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Management protocols | SNMPv1/v2c/v3, LLDP/LLDP-MED |
| Security algorithms | SSH, SSL/TLS |
| MAC address filtering | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
The TP-Link Omada 28-PORT Managed Gigabit L2+ Rack Switch, POE+(24), SFP(4), 384W is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Omada 28-PORT Managed Gigabit L2+ Rack Switch, POE+(24), SFP(4), 384W: new condition; power connector AC-in jack; console port RJ-45/Micro-USB; sfp module slots quantity 4; gigabit ethernet (copper) ports quantity 24; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 24. Manufacturer part number SG3428MP. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link Omada 28-PORT Managed Gigabit L2+ Rack Switch, POE+(24), SFP(4), 384W interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
