Brand: TP-Link | Category: Network Switches
SKU: SG2428LP | Part #: SG2428LP | MPN: SG2428LP
Contact for Pricing — Request a Quote

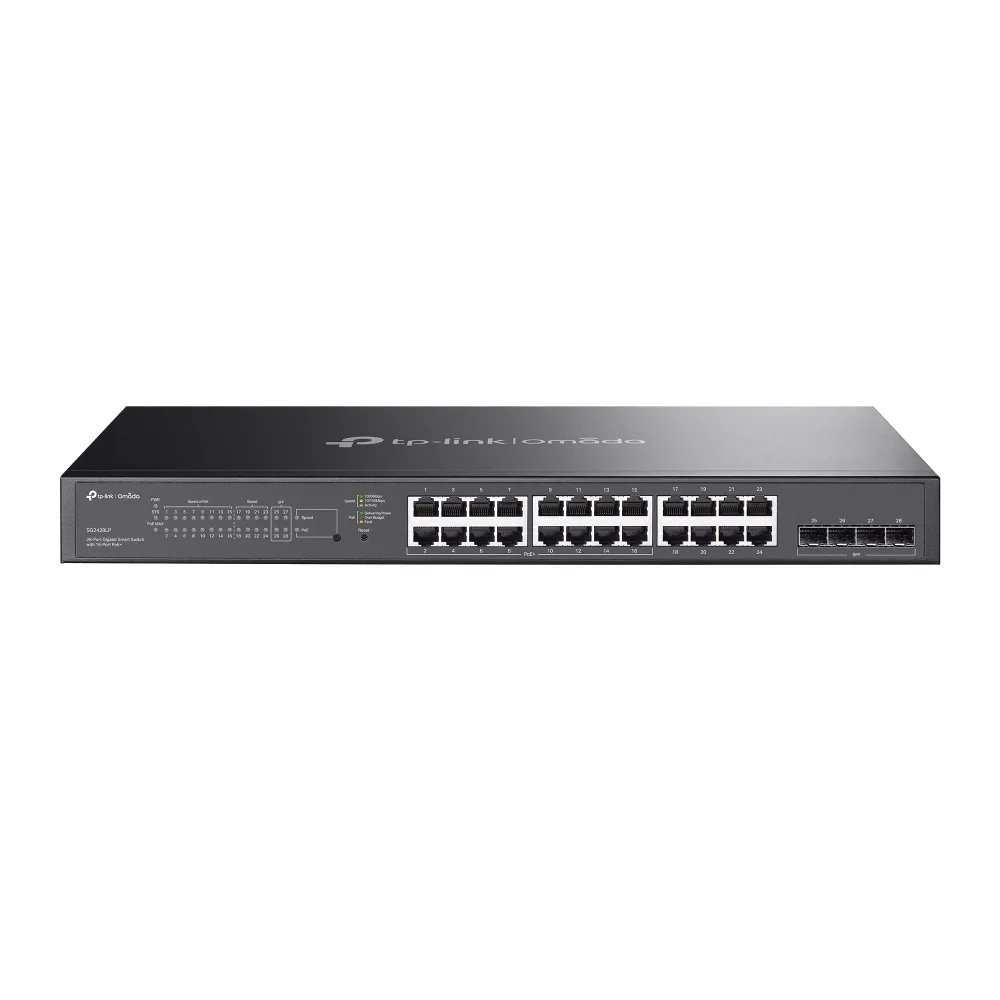

The TP-Link Omada SG2428LP is a 28-port managed Gigabit rack switch with 24 Gigabit Ethernet (10/100/1000) RJ-45 ports and 4 SFP module slots. Sixteen ports provide PoE+ under IEEE 802.3af and IEEE 802.3at, with a total PoE budget of 150 W. The fanless design suits installations where noise is a concern.
Performance figures include a switching capacity of 56 Gbit/s, a forwarding rate of 41.66 Mpps, 4.1 MB packet buffer memory and an 8000-entry MAC address table. Jumbo frames up to 9000 are supported. Management features cover up to 4000 VLANs, including MAC address-based, protocol-based, tagged and voice VLANs, along with link aggregation, spanning tree protocol, flow control and auto-negotiation. The switch does not support 10G.
It is suited to rack-mounted business networks that need to connect and power PoE devices such as IP phones, wireless access points and IP cameras.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | SG2428LP |
| Part Number | SG2428LP |
| Condition | New |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Number of VLANs | 4000 |
| Virtual LAN features | MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| VLAN support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Auto-negotiation | Yes |
| 10G support | No |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Fanless | Yes |
| Packet buffer memory | 4.1 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Forwarding rate | 41.66 Mpps |
| Switching capacity | 56 Gbit/s |
| Total Power over Ethernet (PoE) budget | 150 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP relay, DHCP server |
| ARP inspection | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L2+ |
| Switch type | Managed |
| Power consumption (max) | 184.7 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power source | AC/PoE |
| LED indicators | Yes |
| Product colour | Grey |
The TP-Link Omada 28-PORT Managed Gigabit Rack Switch, POE+(16), SFP(4), 150W is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Omada 28-PORT Managed Gigabit Rack Switch, POE+(16), SFP(4), 150W: new condition; sfp module slots quantity 4; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 24; number of vlans 4000; virtual lan features MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN; vlan support Yes. Manufacturer part number SG2428LP. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link Omada 28-PORT Managed Gigabit Rack Switch, POE+(16), SFP(4), 150W interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
