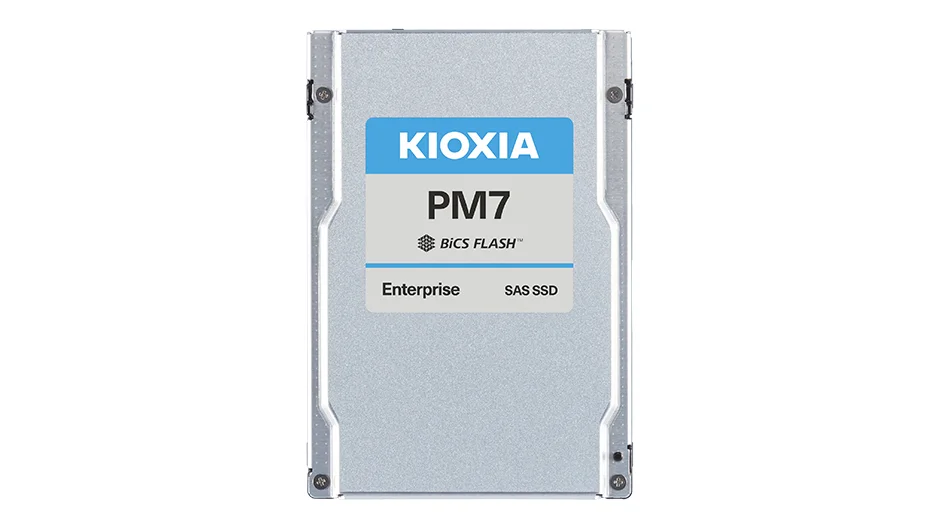

Kioxia PM7-R 7.680TB 2.5 Inch SAS 24Gbps SSD
Brand: Kioxia | Category: Enterprise SSDs
SKU: KPM7VRUG7T68 | Part #: KPM7VRUG7T68 | MPN: KPM7VRUG7T68
Contact for Pricing — Request a Quote
About the Kioxia PM7-R 7.680TB 2.5 Inch SAS 24Gbps SSD
Kioxia PM7-R 7.680TB 2.5 Inch SAS 24Gbps SSD (Part Number KPM7VRUG7T68) delivers enterprise-grade endurance rated at 1 DWPD over a 5-year design life, engineered for write-intensive datacenter workloads where reliability and sustained performance are non-negotiable. This 2.5-inch, 15mm form factor drive combines Kioxia BiCS FLASH 3D TLC NAND technology with SAS 24Gbps (SAS-4) connectivity, while maintaining full backward compatibility with SAS 12Gbps and 6Gbps infrastructure. The KPM7VRUG7T68 achieves sequential read speeds up to 2,100 MB/s and sequential write speeds up to 1,000 MB/s, paired with random read performance of up to 400,000 IOPS and random write performance of up to 60,000 IOPS at 4KB block size, making it suitable for mixed transactional and analytical workloads in virtualized environments.
Storage architects and IT procurement teams responsible for high-availability database systems, transactional processing platforms, and enterprise search infrastructure specify Kioxia PM7-R drives when consistent I/O throughput and data durability cannot be compromised. The drive incorporates dual-port connectivity for active-active failover configurations, T10 DIF end-to-end data protection, and Self-Encrypting Drive (SED) capability with TCG Enterprise SSC compliance to meet stringent security and governance requirements. With a mean time between failures rating of 2,000,000 hours and power loss protection built in, the 7.680TB capacity provides dense storage in a compact footprint while operating across the full 0°C to 70°C industrial temperature range at approximately 10W typical active power consumption.
Omnixon Global stocks the Kioxia PM7-R series for immediate deployment across the UAE and broader EMEA region. To request pricing, availability, volume discounts, or technical validation for your infrastructure refresh, submit a formal RFQ through our enterprise sales portal today.
Technical Specifications
| Brand | Kioxia |
| Category | Enterprise SSDs |
| SKU | KPM7VRUG7T68 |
| Part Number | KPM7VRUG7T68 |
| Condition | New |
| Capacity | 7.680TB |
| Form Factor | 2.5" |
| Interface | SAS 24Gb/s |
| Speed | Read:4200 Mb/s,Write:4100 Mb/s |
| Manufacturer Part Number | KPM7VRUG7T68 |
| Series | PM7-R |
| Form Factor | 2.5-inch (SFF), 15mm |
| Capacity (Formatted) | 7.680 TB |
| Interface | SAS 24Gbps (SAS-4) |
| Interface Compatibility | SAS 24Gbps, 12Gbps, 6Gbps (backward compatible) |
| NAND Flash Type | Kioxia BiCS FLASH 3D TLC NAND |
| Sequential Read (Max) | Up to 2,100 MB/s |
| Sequential Write (Max) | Up to 1,000 MB/s |
| Random Read IOPS (4KB, Max) | Up to 400,000 IOPS |
| Random Write IOPS (4KB, Max) | Up to 60,000 IOPS |
| Endurance (DWPD) | 1 DWPD (over 5-year design life) |
| Power Loss Protection | Yes |
| Data Integrity | T10 DIF (Data Integrity Field), End-to-End Data Protection |
| Dual Port | Yes |
| Operating Temperature | 0°C to 70°C |
| Power Consumption (Active, Typical) | Approximately 10W |
| Mean Time Between Failures (MTBF) | 2,000,000 hours |
| Encryption | Self-Encrypting Drive (SED), TCG Enterprise SSC |
| Operating Hours | 24/7 continuous operation |
| Dimensions | 100.45 mm x 69.85 mm x 15.0 mm |
Frequently Asked Questions about Kioxia PM7-R 7.680TB 2.5 Inch SAS 24Gbps SSD
What does the Kioxia PM7-R 7.680TB 2.5 Inch SAS 24Gbps SSD do?
At 7.680TB, the Kioxia PM7-R 7.680TB 2.5 Inch SAS 24Gbps SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The SAS 24Gbps interface is supported by major server platforms.
What are the headline specs of the Kioxia PM7-R 7.680TB 2.5 Inch SAS 24Gbps SSD?
Key specifications for the Kioxia PM7-R 7.680TB 2.5 Inch SAS 24Gbps SSD: capacity 7.680TB; form factor 2.5 Inch; interface SAS 24Gbps; Manufacturer support support; new condition; model PM7-R; capacity 7.680TB; interface SAS 24Gbps; form factor 2.5 Inch; sequential read speed 4200 Mb/s; sequential write speed 4100 Mb/s. Manufacturer part number KPM7VRUG7T68. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Kioxia PM7-R 7.680TB 2.5 Inch SAS 24Gbps SSD compatible with my infrastructure?
The Kioxia PM7-R 7.680TB 2.5 Inch SAS 24Gbps SSD uses a SAS 24Gbps interface in a 2.5 Inch form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
