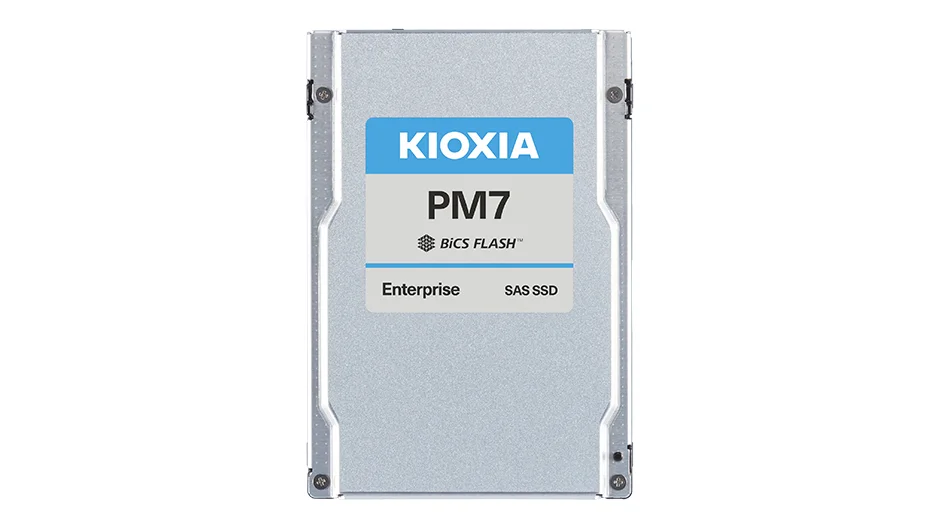

Kioxia PM7-R 15.360TB 2.5 Inch SAS 24Gbps SSD
Brand: Kioxia | Category: Enterprise SSDs
SKU: KPM7VRUG15T3 | Part #: KPM7VRUG15T3 | MPN: KPM7VRUG15T3
Contact for Pricing — Request a Quote
About the Kioxia PM7-R 15.360TB 2.5 Inch SAS 24Gbps SSD
For read-intensive cache and analytics workloads demanding up to 400,000 random read IOPS, the Kioxia PM7-R 15.360TB 2.5-inch SAS SSD delivers enterprise-class performance with a 15.360TB capacity designed to consolidate storage silos. Whether you're architecting flash tiers for data warehouses, supporting high-concurrency database queries, or accelerating AI model serving pipelines, this drive excels in read-heavy environments where sequential throughput reaches 2,700 MB/s and random access latency matters.
The PM7-R series (part number KPM7VRUG15T3) leverages Kioxia BiCS FLASH 3D TLC NAND with advanced LDPC error correction and dual-port SAS 24Gbps connectivity to maximize availability in active-active or failover configurations. Storage architects and IT procurement teams will appreciate the power loss protection, TCG Enterprise SSC encryption, and self-encrypting drive (SED) security—essential for regulated environments—plus the 2,800 TBW endurance rating and low 0.1 DWPD write intensity that aligns perfectly with read-biased access patterns. Manufactured by Kioxia, this 2.5-inch (SFF-8639 / U.2) form factor operates from 0°C to 70°C and consumes approximately 14 W during active reads, delivering predictable thermal and power profiles for dense blade servers and modular storage appliances. Contact Omnixon Global for an RFQ on the Kioxia PM7-R KPM7VRUG15T3 and explore volume pricing and delivery options.
Key Specifications
- Capacity: 15.360 TB
- Interface: SAS 24Gbps (Dual Port)
- Sequential Read (Max): 2,700 MB/s
- Random Read (4K, Max): 400,000 IOPS
- NAND Flash Type: Kioxia BiCS FLASH 3D TLC NAND
- Endurance (TBW): 2,800 TBW
- Security: TCG Enterprise SSC, SED (Self-Encrypting Drive)
Technical Specifications
| Brand | Kioxia |
| Category | Enterprise SSDs |
| SKU | KPM7VRUG15T3 |
| Part Number | KPM7VRUG15T3 |
| Condition | New |
| Capacity | 15.360TB |
| Form Factor | 2.5" |
| Interface | SAS 24Gb/s |
| Speed | Read:4200 Mb/s,Write:4100 Mb/s |
| Manufacturer Part Number | KPM7VRUG15T3 |
| Series | PM7-R |
| Form Factor | 2.5-inch (SFF-8639 / U.2) |
| Interface | SAS 24Gbps (Dual Port) |
| Capacity | 15.360 TB |
| NAND Flash Type | Kioxia BiCS FLASH 3D TLC NAND |
| Drive Usage Class | Read Intensive |
| Sequential Read (Max) | 2,700 MB/s |
| Sequential Write (Max) | 1,400 MB/s |
| Random Read (4K, Max) | 400,000 IOPS |
| Random Write (4K, Max) | 60,000 IOPS |
| Endurance (TBW) | 2,800 TBW |
| Drive Writes Per Day (DWPD) | 0.1 |
| Power Consumption (Active Read) | Approximately 14 W |
| Power Loss Protection | Yes |
| Error Correction | Advanced LDPC |
| Security | TCG Enterprise SSC, SED (Self-Encrypting Drive) |
| Dimensions (W x H x D) | 69.85 mm x 15.0 mm x 100.45 mm |
| Operating Temperature | 0°C to 70°C |
| MTBF | 2,500,000 hours |
Frequently Asked Questions about Kioxia PM7-R 15.360TB 2.5 Inch SAS 24Gbps SSD
What does the Kioxia PM7-R 15.360TB 2.5 Inch SAS 24Gbps SSD do?
At 15.360TB, the Kioxia PM7-R 15.360TB 2.5 Inch SAS 24Gbps SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The SAS 24Gbps interface is supported by major server platforms.
What are the headline specs of the Kioxia PM7-R 15.360TB 2.5 Inch SAS 24Gbps SSD?
Key specifications for the Kioxia PM7-R 15.360TB 2.5 Inch SAS 24Gbps SSD: capacity 15.360TB; form factor 2.5 Inch; interface SAS 24Gbps; Manufacturer support support; new condition; model PM7-R; capacity 15.360TB; interface SAS 24Gbps; form factor 2.5 Inch; sequential read speed 4200 Mb/s; sequential write speed 4100 Mb/s. Manufacturer part number KPM7VRUG15T3. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Kioxia PM7-R 15.360TB 2.5 Inch SAS 24Gbps SSD compatible with my infrastructure?
The Kioxia PM7-R 15.360TB 2.5 Inch SAS 24Gbps SSD uses a SAS 24Gbps interface in a 2.5 Inch form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
