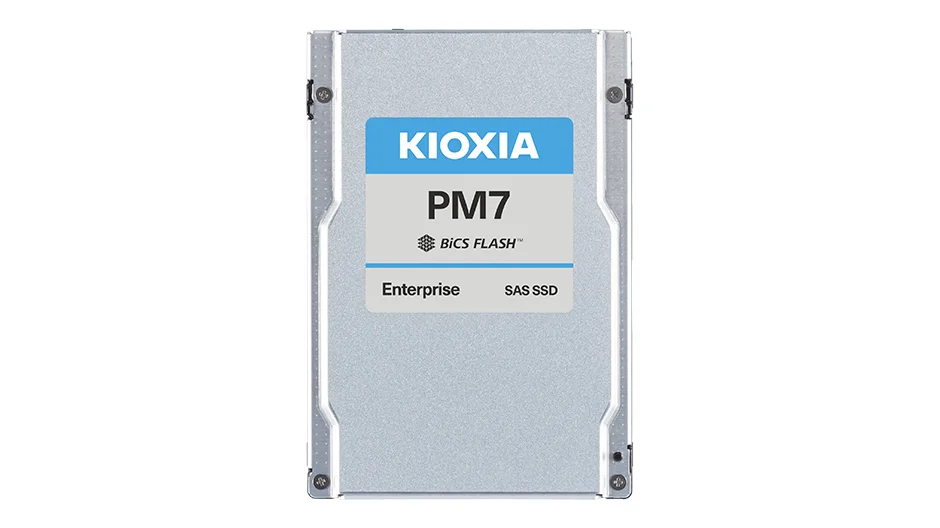

Kioxia PM7-V 3.200TB 2.5 Inch SAS 24Gbps SSD
Brand: Kioxia | Category: Enterprise SSDs
SKU: KPM7VVUG3T20 | Part #: KPM7VVUG3T20 | MPN: KPM7VVUG3T20
Contact for Pricing — Request a Quote
About the Kioxia PM7-V 3.200TB 2.5 Inch SAS 24Gbps SSD
The Kioxia PM7-V delivers sequential read speeds up to 7.1 GB/s, combining high-speed performance with enterprise-grade reliability. This 2.5-inch SAS 24Gbps dual-port SSD (part number KPM7VVUG3T20) is engineered for mission-critical data center environments where speed and data integrity cannot be compromised.
With 3.2TB of capacity, the Kioxia PM7-V utilizes advanced BiCS FLASH 3D TLC NAND technology to deliver consistent performance across sequential and random workloads. Built for storage architects and IT infrastructure teams managing high-availability systems, this drive incorporates AES 256-bit Self-Encrypting Drive (SED) technology alongside TCG Enterprise SSC compliance, ensuring data security without performance degradation. The dual-port SAS interface enables active-active clustering, while integrated T10 Protection Information and end-to-end data path protection safeguard against corruption. On-board capacitor-backed power-loss protection preserves write-in-progress data during unexpected power events, a critical feature for transaction-heavy workloads. The PM7-V maintains an MTBF rating of 2,000,000 hours and operates reliably across 0°C to 70°C, with non-operating shock tolerance of 1000G over 0.5ms—ideal for mobile data center or ruggedized deployment scenarios.
Key Specifications
- Capacity: 3.2TB
- Interface: SAS 24Gbps (SAS-4) with dual ports
- Form Factor: 2.5-inch SFF, 15mm height
- NAND Type: BiCS FLASH 3D TLC NAND
- Security: AES 256-bit SED with TCG Enterprise SSC
- Power-Loss Protection: Yes, capacitor-backed
Contact Omnixon Global to request a quotation for the Kioxia PM7-V (KPM7VVUG3T20) and explore volume pricing for your enterprise storage deployment.
Technical Specifications
| Brand | Kioxia |
| Category | Enterprise SSDs |
| SKU | KPM7VVUG3T20 |
| Part Number | KPM7VVUG3T20 |
| Condition | New |
| Capacity | 3.200TB |
| Form Factor | 2.5" |
| Interface | SAS 24Gb/s |
| Speed | Read:4200 Mb/s,Write:3650 Mb/s |
| Manufacturer Part Number | KPM7VVUG3T20 |
| Series | PM7-V |
| Raw Capacity | 3.200 TB |
| Form Factor | 2.5-inch (SFF), 15mm |
| Interface | SAS 24Gbps (SAS-4) |
| Ports | Dual Port |
| NAND Flash Type | BiCS FLASH 3D TLC NAND |
| Encryption | AES 256-bit SED, TCG Enterprise SSC |
| Data Protection | T10 PI (Protection Information), End-to-End Data Path Protection |
| Power-Loss Protection | Yes, on-board capacitor-backed power-loss protection |
| Logical Block Size | 512e / 4096n |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Vibration (Operating) | 2.17 G (5–800 Hz) |
| Non-Operating Shock | 1000 G / 0.5 ms |
| Connector | SFF-8482 (SAS) |
| MTBF | 2,000,000 hours |
Frequently Asked Questions about Kioxia PM7-V 3.200TB 2.5 Inch SAS 24Gbps SSD
What does the Kioxia PM7-V 3.200TB 2.5 Inch SAS 24Gbps SSD do?
At 3.200TB, the Kioxia PM7-V 3.200TB 2.5 Inch SAS 24Gbps SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The SAS 24Gbps interface is supported by major server platforms.
What are the headline specs of the Kioxia PM7-V 3.200TB 2.5 Inch SAS 24Gbps SSD?
Key specifications for the Kioxia PM7-V 3.200TB 2.5 Inch SAS 24Gbps SSD: capacity 3.200TB; form factor 2.5 Inch; interface SAS 24Gbps; Manufacturer support support; new condition; model PM7-V; capacity 3.200TB; interface SAS 24Gbps; form factor 2.5 Inch; sequential read speed 4200 Mb/s; sequential write speed 3650 Mb/s. Manufacturer part number KPM7VVUG3T20. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Kioxia PM7-V 3.200TB 2.5 Inch SAS 24Gbps SSD compatible with my infrastructure?
The Kioxia PM7-V 3.200TB 2.5 Inch SAS 24Gbps SSD uses a SAS 24Gbps interface in a 2.5 Inch form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
