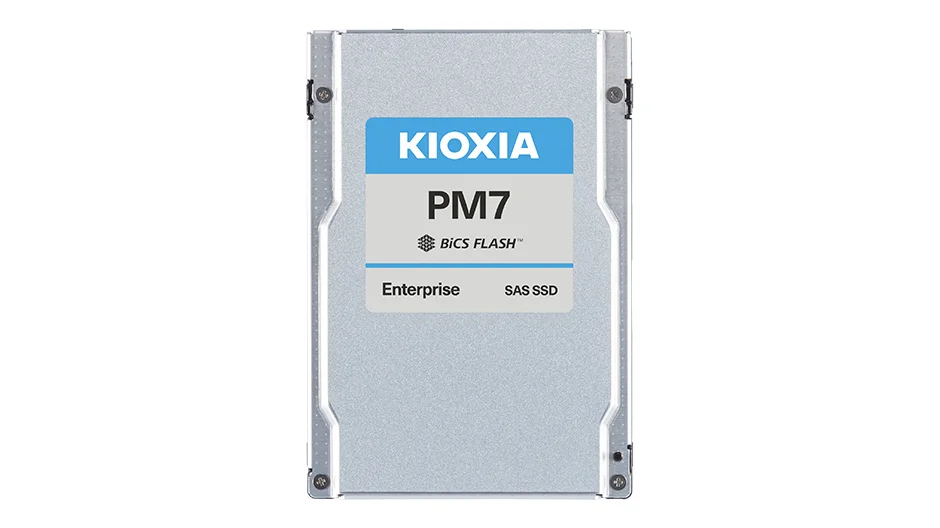

Kioxia PM7-V 12.800TB 2.5 Inch SAS 24Gbps SSD
Brand: Kioxia | Category: Enterprise SSDs
SKU: KPM7VVUG12T8 | Part #: KPM7VVUG12T8 | MPN: KPM7VVUG12T8
Contact for Pricing — Request a Quote
About the Kioxia PM7-V 12.800TB 2.5 Inch SAS 24Gbps SSD
The Kioxia PM7-V 12.800TB 2.5-inch SAS SSD excels across read-intensive cache, write-intensive log, and mixed-workload primary storage tiers, delivering up to 800,000 random read IOPS and 300,000 random write IOPS to match demanding enterprise requirements. This Kioxia enterprise-class drive combines a 12.800TB capacity with BiCS FLASH 3D TLC NAND technology, achieving sequential read speeds up to 4,200 MB/s and sequential write speeds up to 3,500 MB/s. The SAS 24Gbps dual-port interface (part number KPM7VVUG12T8) fits the compact 2.5-inch form factor while offering comprehensive data protection through capacitor-based power loss protection, end-to-end data protection, and SED encryption with TCG Enterprise SSC compliance. Operating across 0°C to 70°C and consuming approximately 14W during active use, the drive delivers a 1 DWPD rating with approximately 12,800 TBW over its lifespan, making it suitable for sustained, mission-critical workloads.
Storage architects and IT procurement teams selecting drives for hyperscale data centers, high-frequency trading platforms, and virtualized infrastructure will find the Kioxia PM7-V a robust choice for applications requiring predictable latency and high concurrent I/O throughput. The dual-port SAS connectivity supports active-active configurations, while the integrated self-encrypting drive capability simplifies compliance workflows in regulated environments. Organizations balancing capacity density—delivered in a 69.85 mm × 15.0 mm × 100.45 mm envelope weighing approximately 280g—against performance requirements will benefit from this drive's balanced specifications across read, write, and random access patterns.
To evaluate the Kioxia PM7-V 12.800TB for your enterprise infrastructure, contact Omnixon Global today and request a detailed quotation. Our team in Dubai will ensure you receive current pricing, bulk discount structures, and regional logistics support tailored to your deployment timeline and capacity requirements.
Technical Specifications
| Brand | Kioxia |
| Category | Enterprise SSDs |
| SKU | KPM7VVUG12T8 |
| Part Number | KPM7VVUG12T8 |
| Condition | New |
| Capacity | 12.800TB |
| Form Factor | 2.5" |
| Interface | SAS 24Gb/s |
| Speed | Read:4200 Mb/s,Write:4100 Mb/s |
| Manufacturer Part Number | KPM7VVUG12T8 |
| Series | PM7-V |
| Form Factor | 2.5-inch (SFF-8201) |
| Interface | SAS 24Gbps (Dual Port) |
| Capacity | 12.800 TB |
| NAND Flash Type | BiCS FLASH 3D TLC NAND |
| Sequential Read Speed | Up to 4,200 MB/s |
| Sequential Write Speed | Up to 3,500 MB/s |
| Random Read IOPS (4KB) | Up to 800,000 IOPS |
| Random Write IOPS (4KB) | Up to 300,000 IOPS |
| Power Loss Protection | Yes (capacitor-based data protection) |
| End-to-End Data Protection | Yes |
| Encryption | SED (Self-Encrypting Drive), TCG Enterprise SSC compliant |
| Drive Writes Per Day (DWPD) | 1 |
| Total Bytes Written (TBW) | Approx. 12,800 TBW (rated over drive lifespan) |
| Power Consumption (Active) | Approx. 14 W |
| Operating Temperature | 0°C to 70°C |
| Dimensions (W x H x D) | 69.85 mm x 15.0 mm x 100.45 mm |
| Weight | Approx. 280 g |
| MTBF | 2,000,000 hours |
Frequently Asked Questions about Kioxia PM7-V 12.800TB 2.5 Inch SAS 24Gbps SSD
What does the Kioxia PM7-V 12.800TB 2.5 Inch SAS 24Gbps SSD do?
At 12.800TB, the Kioxia PM7-V 12.800TB 2.5 Inch SAS 24Gbps SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The SAS 24Gbps interface is supported by major server platforms.
What are the headline specs of the Kioxia PM7-V 12.800TB 2.5 Inch SAS 24Gbps SSD?
Key specifications for the Kioxia PM7-V 12.800TB 2.5 Inch SAS 24Gbps SSD: capacity 12.800TB; form factor 2.5 Inch; interface SAS 24Gbps; Manufacturer support support; new condition; model PM7-V; capacity 12.800TB; interface SAS 24Gbps; form factor 2.5 Inch; sequential read speed 4200 Mb/s; sequential write speed 4100 Mb/s. Manufacturer part number KPM7VVUG12T8. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Kioxia PM7-V 12.800TB 2.5 Inch SAS 24Gbps SSD compatible with my infrastructure?
The Kioxia PM7-V 12.800TB 2.5 Inch SAS 24Gbps SSD uses a SAS 24Gbps interface in a 2.5 Inch form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
