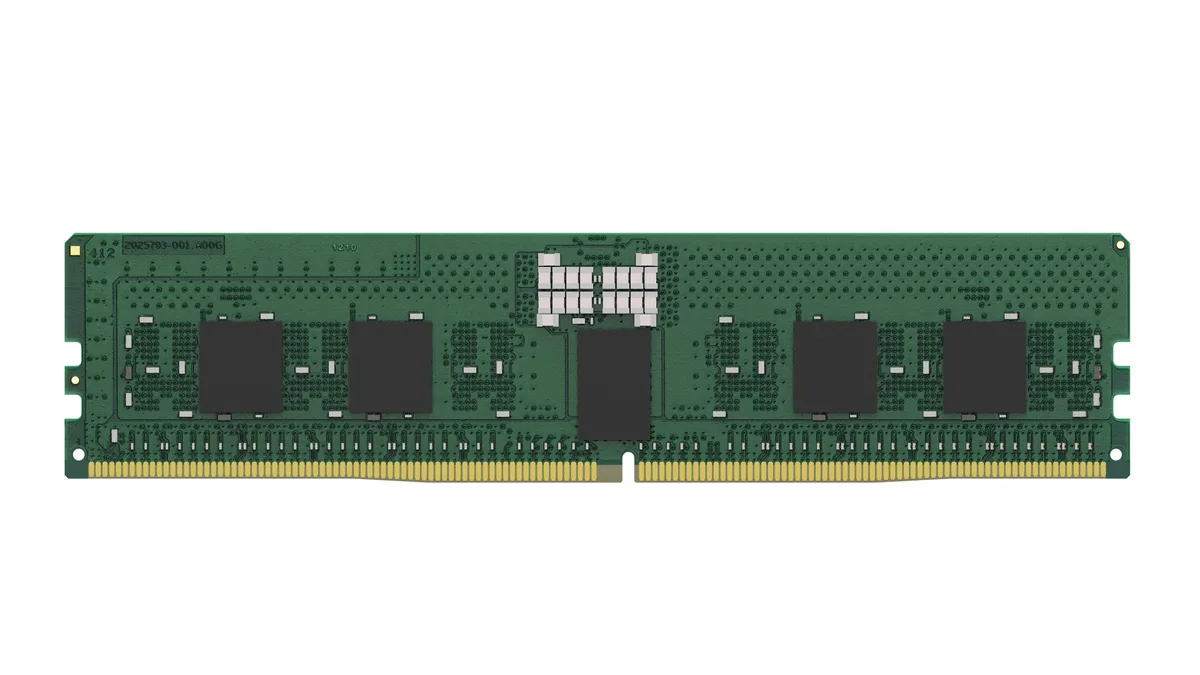

Kingston Server Premier 16GB DDR5 5600MT/s ECC Registered DIMM (KSM56R46BS8-16HA)

Kingston Server Premier 16GB DDR5 5600MT/s ECC Registered DIMM (KSM56R46BS8-16HA)

Brand: Kingston | Category: Memory (RAM)

SKU: KSM56R46BS8-16HA | Part #: KSM56R46BS8-16HA | MPN: KSM56R46BS8-16HA

Contact for Pricing — Request a Quote

Request a Quote Contact Us

About the Kingston Server Premier 16GB DDR5 5600MT/s ECC Registered DIMM (KSM56R46BS8-16HA)

Kingston Server Premier 16GB DDR5 5600MT/s ECC Registered DIMM (KSM56R46BS8-16HA)

16GB of DDR5-5600 ECC registered memory for dependable server workloads.

Quick facts

  • Part number: KSM56R46BS8-16HA
  • Brand: Kingston
  • Product type: Server memory
  • Capacity: 16GB
  • Interface: DDR5 Registered EC8 DDR5-5600 CL46
  • How to buy: Request a quote; Omnixon Global replies within 48 hours
  • Supplied from: Dubai, UAE, to buyers in the UAE, Saudi Arabia, Qatar, Kuwait, Oman, Bahrain, Africa, Europe and Asia-Pacific

The Kingston KSM56R46BS8-16HA is a Server Premier 16GB DDR5 registered DIMM running at 5600MT/s with CL46 latency. This single-rank 1Rx8 module uses a 288-pin Registered EC8 design built from ten 2G x 8-bit FBGA components. It operates at JEDEC standard DDR5-5600 timing of 46-45-45 at 1.1V.

Perfect for

  • Virtualisation hosts adding ECC registered DDR5 capacity to hosts running multiple virtual machines.
  • Database servers supporting memory-dependent database workloads with error-correcting memory.
  • Application servers providing DDR5-5600 bandwidth for business application platforms.
  • Server memory upgrades expanding or refreshing DDR5 registered memory in data centre servers.

Why buyers choose this model

  • DDR5-5600 speed. The module is rated PC5-5600 (DDR5-5600) with CL46 latency.
  • ECC registered design. It is a Registered EC8 288-pin DIMM with a 2G x 80-bit organisation.
  • Low-voltage operation. VDD and VDDQ are 1.1V typical, with JEDEC timing of 46-45-45 at 1.1V.
  • Single-rank layout. The 1Rx8 configuration uses ten 2G x 8-bit FBGA components.
  • Wide operating range. Operating temperature is specified from 0°C to +95°C with a UL rating of 94 V - 0.

Key specifications

Manufacturer part numberKSM56R46BS8-16HA
Capacity16GB
Organisation2G x 80-Bit
Ranks1Rx8
Memory type / speedPC5-5600 (DDR5-5600) CL46
Module typeRegistered EC8 288-Pin DIMM
Componentsten 2G x 8-bit FBGA components
TimingJEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V
CL (IDD)46 cycles
Row Cycle Time (tRCmin)48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)295ns(min.)
Row Active Time (tRASmin)32ns(min.)

Specifications as published by Kingston for this part number. The full list is in the Specifications tab.

Get a quote for the Kingston Server Premier 16GB DDR5 5600MT/s ECC Registered DIMM

Single units or project quantities. Tell us the quantity and destination and our team will reply with a quotation within 48 hours.

Request a QuoteTalk to our team

Manufacturer part number: KSM56R46BS8-16HA

Omnixon Global is an enterprise IT and computer hardware supplier based in Dubai, UAE, serving system integrators, resellers and IT teams across the UAE, GCC, Africa, Europe and Asia-Pacific. Request a quote or contact our team to discuss your requirements.

Technical Specifications

BrandKingston
CategoryMemory (RAM)
SKUKSM56R46BS8-16HA
Part NumberKSM56R46BS8-16HA
ConditionNew
Capacity16GB
Form Factor288-Pin DIMM
InterfaceDDR5 Registered EC8
SpeedDDR5-5600 CL46
Manufacturer Part NumberKSM56R46BS8-16HA
Capacity16GB
Organisation2G x 80-Bit
Ranks1Rx8
Memory type / speedPC5-5600 (DDR5-5600) CL46
Module typeRegistered EC8 288-Pin DIMM
Componentsten 2G x 8-bit FBGA components
TimingJEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V
CL (IDD)46 cycles
Row Cycle Time (tRCmin)48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)295ns(min.)
Row Active Time (tRASmin)32ns(min.)
Row Precharge Time (tRPmin)16ns(min.)
UL Rating94 V - 0
Operating Temperature0°C to +95°C
Storage Temperature-55°C to +100°C
Power SupplyVDD = 1.1V Typical; VDDQ = 1.1V Typical; VPP = 1.8V Typical; VDDSPD = 1.8V to 2.0V

Frequently Asked Questions about Kingston Server Premier 16GB DDR5 5600MT/s ECC Registered DIMM (KSM56R46BS8-16HA)

What is the KSM56R46BS8-16HA?

It is a Kingston Server Premier 16GB DDR5 5600MT/s ECC Registered DIMM, single rank 1Rx8, with CL46 latency and 1.1V operation.

What type of memory slot does the KSM56R46BS8-16HA fit?

It is a Registered EC8 288-pin DDR5 DIMM (PC5-5600), so it requires a system that accepts DDR5 registered ECC DIMMs.

Can Omnixon Global supply the Kingston Server Premier 16GB DDR5 5600MT/s ECC Registered DIMM in volume?

Yes. We handle single units as well as project and volume requests from system integrators, resellers and IT teams. Quotes are prepared for your quantity and destination, and one RFQ can cover several part numbers.

How fast can I get a quote?

Within 48 hours. Send the part number and quantity through the RFQ form and our team will reply with a quotation.

Where does Omnixon Global ship from?

We are based in Dubai, UAE, and supply buyers across the UAE, the GCC, Africa, Europe and Asia-Pacific. Shipping method, lead time and documentation are confirmed in your quotation.
