Brand: Kingston | Category: Memory (RAM)
SKU: KSM32SED8/32HD | Part #: KSM32SED8/32HD | MPN: KSM32SED8/32HD
Contact for Pricing — Request a Quote

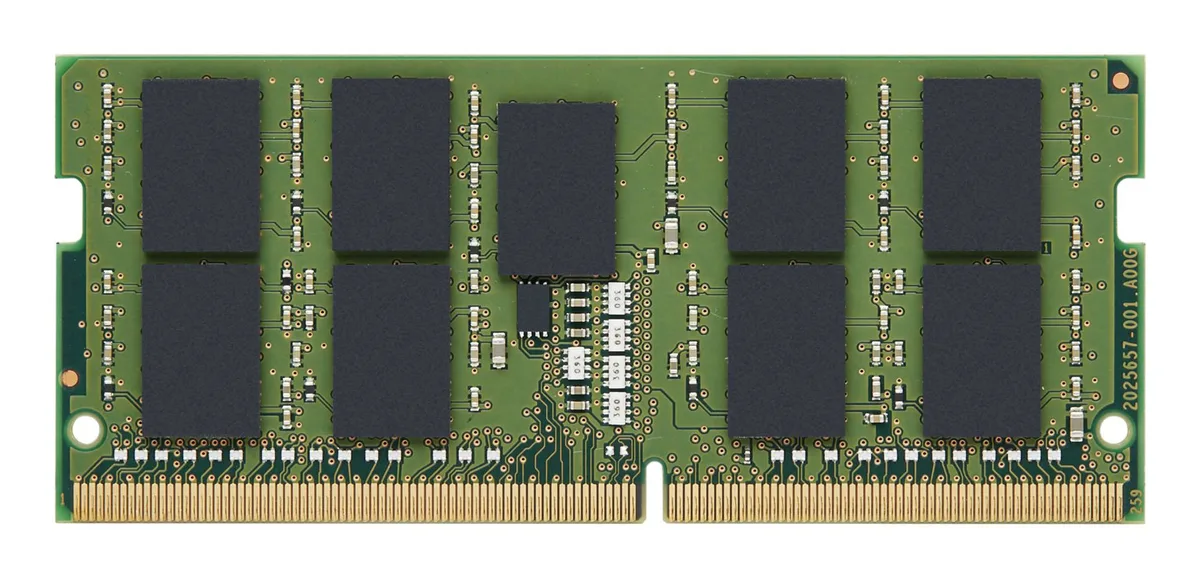

32GB of ECC-protected DDR4-3200 memory in a compact 260-pin SODIMM form factor.
Quick facts
The Kingston KSM32SED8/32HD is a 32GB DDR4-3200 CL22 ECC SODIMM from the Server Premier line, organised as 4G x 72-bit in a 2Rx8 configuration using Hynix D-die DRAM. It runs at 1.2V with 22-22-22 timings and supports data transfer rates from PC4-3200 down to PC4-1600. Features include ECC error correction and detection, On-Die Termination, a temperature sensor with integrated SPD, Write CRC and CA parity.
| Manufacturer part number | KSM32SED8/32HD |
| Capacity | 32GB |
| Organisation | 4G x 72-bit; 2Rx8; based on eighteen 2G x 8-bit FBGA components |
| Type | DDR4-3200 CL22 SDRAM w/ parity, ECC |
| Form factor | 260-Pin ECC SODIMM |
| Speed | PC4-3200 |
| Timing | 22-22-22 at 1.2V |
| Supported data transfer rates | PC4-3200, PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600 |
| DRAM | Hynix (D-DIE) |
| Power supply | VDD = 1.2V, VDDQ = 1.2V, VPP = 2.5V, VDDSPD = 2.20V to 3.60V |
| Row Cycle Time (tRCmin) | 45.75ns(min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 350ns(min.) |
Specifications as published by Kingston for this part number. The full list is in the Specifications tab.
Single units or project quantities. Tell us the quantity and destination and our team will reply with a quotation within 48 hours.
Request a QuoteTalk to our team
Manufacturer part number: KSM32SED8/32HD
Omnixon Global is an enterprise IT and computer hardware supplier based in Dubai, UAE, serving system integrators, resellers and IT teams across the UAE, GCC, Africa, Europe and Asia-Pacific. Request a quote or contact our team to discuss your requirements.
| Brand | Kingston |
| Category | Memory (RAM) |
| SKU | KSM32SED8/32HD |
| Part Number | KSM32SED8/32HD |
| Condition | New |
| Capacity | 32GB |
| Form Factor | 260-Pin ECC SODIMM |
| Interface | DDR4 |
| Speed | PC4-3200 (DDR4-3200) |
| Manufacturer Part Number | KSM32SED8/32HD |
| Capacity | 32GB |
| Organisation | 4G x 72-bit; 2Rx8; based on eighteen 2G x 8-bit FBGA components |
| Type | DDR4-3200 CL22 SDRAM w/ parity, ECC |
| Form factor | 260-Pin ECC SODIMM |
| Speed | PC4-3200 |
| Timing | 22-22-22 at 1.2V |
| Supported data transfer rates | PC4-3200, PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600 |
| DRAM | Hynix (D-DIE) |
| Power supply | VDD = 1.2V, VDDQ = 1.2V, VPP = 2.5V, VDDSPD = 2.20V to 3.60V |
| Row Cycle Time (tRCmin) | 45.75ns(min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 350ns(min.) |
| Row Active Time (tRASmin) | 32ns(min.) |
| UL Rating | 94 V - 0 |
| Operating temperature | 0°C to +85°C |
| Storage temperature | -55°C to +100°C |
| Features | 16 internal banks; ECC error correction and detection; On-Die Termination; temperature sensor with integrated SPD; Write CRC; CA parity; RoHS Compliant and Halogen-Free |
The KSM32SED8/32HD is a Kingston Server Premier 32GB DDR4-3200 CL22 ECC SODIMM, organised as 4G x 72-bit in a 2Rx8 configuration with Hynix D-die DRAM, running at 1.2V.
It is a 260-pin ECC SODIMM, so it requires a system with 260-pin DDR4 SODIMM slots that supports ECC memory. It supports transfer rates from PC4-3200 down to PC4-1600.
Yes. We handle single units as well as project and volume requests from system integrators, resellers and IT teams. Quotes are prepared for your quantity and destination, and one RFQ can cover several part numbers.
Within 48 hours. Send the part number and quantity through the RFQ form and our team will reply with a quotation.
We are based in Dubai, UAE, and supply buyers across the UAE, the GCC, Africa, Europe and Asia-Pacific. Shipping method, lead time and documentation are confirmed in your quotation.
