Brand: Kingston | Category: Memory (RAM)
SKU: KSM56R46BS4PMI-48HMI | Part #: KSM56R46BS4PMI-48HMI | MPN: KSM56R46BS4PMI-48HMI
Contact for Pricing — Request a Quote
48GB of DDR5-5600 ECC Registered memory for dependable server workloads.
Quick facts

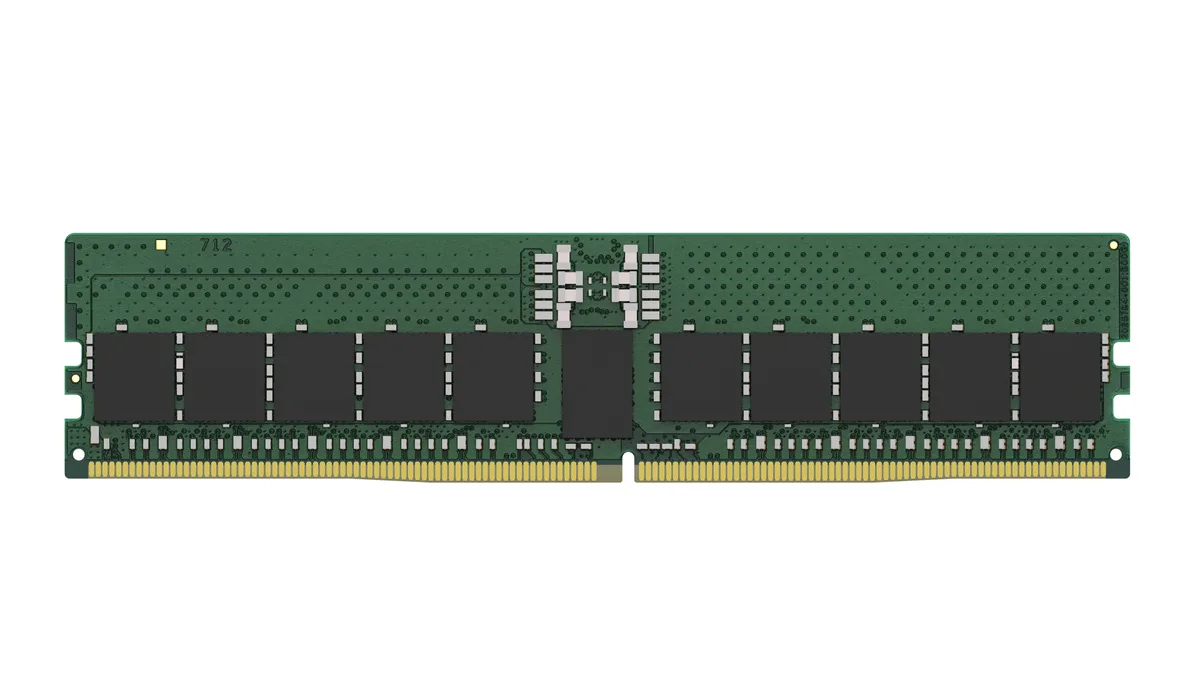

The Kingston KSM56R46BS4PMI-48HMI is a 48GB DDR5-5600 CL46 ECC Registered 288-pin DIMM from the Server Premier line. Organised as 6G x 80-bit, 1Rx4, it uses twenty 6G x 4-bit FBGA components built on 24Gbit DRAM density. It runs at 1.1V with JEDEC DDR5-5600 timings of 46-45-45 and combines On-Die ECC with x80 ECC across two independent I/O sub channels.
| Manufacturer part number | KSM56R46BS4PMI-48HMI |
| Capacity | 48GB |
| Organisation | 6G x 80-Bit, 1Rx4 |
| Type | DDR5-5600 CL46 SDRAM, ECC, Registered |
| Module designation | PC5-5600 CL46 Registered EC8 288-Pin DIMM |
| Components | twenty 6G x 4-bit FBGA components |
| DRAM density | 24Gbit |
| Timing | 46-45-45 at 1.1V (JEDEC DDR5-5600) |
| CL(IDD) | 46 cycles |
| Row Cycle Time (tRCmin) | 48ns(min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 295ns(min.) |
| Row Active Time (tRASmin) | 32ns(min.) |
Specifications as published by Kingston for this part number. The full list is in the Specifications tab.
Single units or project quantities. Tell us the quantity and destination and our team will reply with a quotation within 48 hours.
Request a QuoteTalk to our team
Manufacturer part number: KSM56R46BS4PMI-48HMI
Omnixon Global is an enterprise IT and computer hardware supplier based in Dubai, UAE, serving system integrators, resellers and IT teams across the UAE, GCC, Africa, Europe and Asia-Pacific. Request a quote or contact our team to discuss your requirements.
| Brand | Kingston |
| Category | Memory (RAM) |
| SKU | KSM56R46BS4PMI-48HMI |
| Part Number | KSM56R46BS4PMI-48HMI |
| Condition | New |
| Capacity | 48GB |
| Form Factor | 288-Pin DIMM (Registered) |
| Interface | DDR5 |
| Speed | 5600MT/s (DDR5-5600 CL46) |
| Manufacturer Part Number | KSM56R46BS4PMI-48HMI |
| Capacity | 48GB |
| Organisation | 6G x 80-Bit, 1Rx4 |
| Type | DDR5-5600 CL46 SDRAM, ECC, Registered |
| Module designation | PC5-5600 CL46 Registered EC8 288-Pin DIMM |
| Components | twenty 6G x 4-bit FBGA components |
| DRAM density | 24Gbit |
| Timing | 46-45-45 at 1.1V (JEDEC DDR5-5600) |
| CL(IDD) | 46 cycles |
| Row Cycle Time (tRCmin) | 48ns(min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 295ns(min.) |
| Row Active Time (tRASmin) | 32ns(min.) |
| Row Precharge Time (tRPmin) | 16ns(min.) |
| Power Supply | VDD = 1.1V Typical; VDDQ = 1.1V Typical; VPP = 1.8V Typical; VDDSPD = 1.8V to 2.0V |
| ECC | On-Die ECC; x80 ECC (x40, 2 independent I/O sub channels) |
| Internal banks | 32 internal banks |
| Features | Hard/Soft Post Package Repair; Sideband access with I3C/I2C |
It is a Kingston Server Premier 48GB DDR5-5600 CL46 ECC Registered DIMM, organised as 6G x 80-bit, 1Rx4, using twenty 6G x 4-bit FBGA components with 24Gbit DRAM density.
It is a PC5-5600 CL46 Registered EC8 288-pin DIMM, so it requires a slot supporting DDR5 ECC Registered DIMMs; it runs at VDD and VDDQ of 1.1V typical with VPP of 1.8V typical.
