Brand: Kingston | Category: Memory (RAM)
SKU: KSM56R46BD4PMI-64HAI | Part #: KSM56R46BD4PMI-64HAI | MPN: KSM56R46BD4PMI-64HAI
Contact for Pricing — Request a Quote
64GB of DDR5-5600 ECC Registered memory for dependable server workloads.
Quick facts

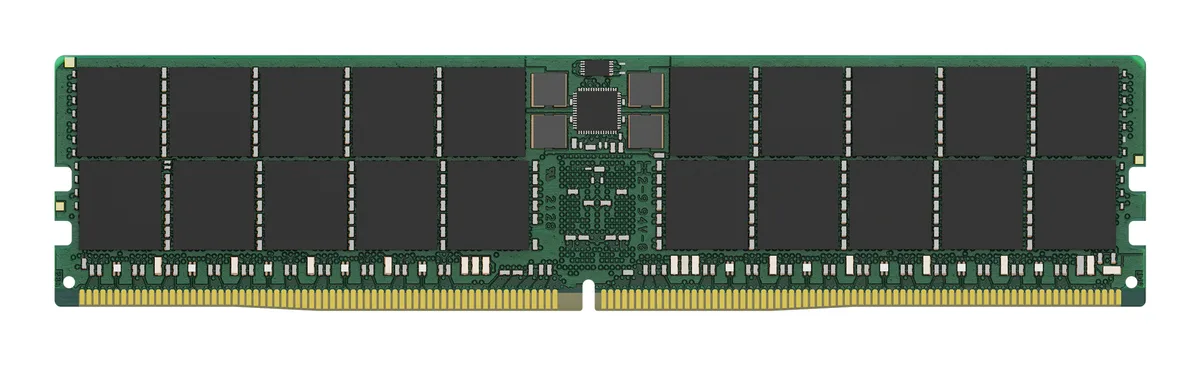

The Kingston KSM56R46BD4PMI-64HAI is a 64GB DDR5-5600 ECC Registered 288-pin DIMM from the Server Premier line. It is a dual-rank 2Rx4 module built with forty 4G x 4-bit FBGA components using 16Gbit Hynix A-Die DRAM. It runs at JEDEC timing 46-45-45 at 1.1V with On-Die ECC and x80 ECC across 2 independent I/O sub channels.
| Manufacturer part number | KSM56R46BD4PMI-64HAI |
| Capacity | 64GB |
| Organisation | 8G x 80-Bit |
| Ranks | 2Rx4 |
| Type | DDR5-5600 CL46 SDRAM, ECC, Registered |
| Speed | PC5-5600 (DDR5 5600MT/s) |
| CAS Latency | CL46 |
| JEDEC timing | 46-45-45 at 1.1V |
| Form factor | 288-Pin DIMM |
| Components | forty 4G x 4-bit FBGA components |
| DRAM density | 16Gbit |
| Voltage | VDD = 1.1V Typical; VDDQ = 1.1V Typical; VPP = 1.8V Typical; VDDSPD = 1.8V to 2.0V |
Specifications as published by Kingston for this part number. The full list is in the Specifications tab.
Single units or project quantities. Tell us the quantity and destination and our team will reply with a quotation within 48 hours.
Request a QuoteTalk to our team
Manufacturer part number: KSM56R46BD4PMI-64HAI
Omnixon Global is an enterprise IT and computer hardware supplier based in Dubai, UAE, serving system integrators, resellers and IT teams across the UAE, GCC, Africa, Europe and Asia-Pacific. Request a quote or contact our team to discuss your requirements.
| Brand | Kingston |
| Category | Memory (RAM) |
| SKU | KSM56R46BD4PMI-64HAI |
| Part Number | KSM56R46BD4PMI-64HAI |
| Condition | New |
| Capacity | 64GB |
| Form Factor | 288-Pin DIMM |
| Interface | DDR5 ECC Registered |
| Speed | DDR5 5600MT/s (PC5-5600) |
| Manufacturer Part Number | KSM56R46BD4PMI-64HAI |
| Capacity | 64GB |
| Organisation | 8G x 80-Bit |
| Ranks | 2Rx4 |
| Type | DDR5-5600 CL46 SDRAM, ECC, Registered |
| Speed | PC5-5600 (DDR5 5600MT/s) |
| CAS Latency | CL46 |
| JEDEC timing | 46-45-45 at 1.1V |
| Form factor | 288-Pin DIMM |
| Components | forty 4G x 4-bit FBGA components |
| DRAM density | 16Gbit |
| Voltage | VDD = 1.1V Typical; VDDQ = 1.1V Typical; VPP = 1.8V Typical; VDDSPD = 1.8V to 2.0V |
| ECC | On-Die ECC; x80 ECC (x40, 2 independent I/O sub channels) |
| Internal banks | 32 internal banks |
| DRAM | HYNIX (A-Die) |
| RCD | IDT/Renasas |
| PMIC | MPS |
It is a Kingston Server Premier 64GB DDR5-5600 CL46 ECC Registered DIMM, organised as 8G x 80-Bit in a dual-rank 2Rx4 configuration using 16Gbit Hynix A-Die DRAM.
It is a 288-pin DDR5 ECC Registered DIMM operating at 1.1V VDD/VDDQ, so it requires a system that supports DDR5 registered (RDIMM) memory.
Yes. We handle single units as well as project and volume requests from system integrators, resellers and IT teams. Quotes are prepared for your quantity and destination, and one RFQ can cover several part numbers.
Within 48 hours. Send the part number and quantity through the RFQ form and our team will reply with a quotation.
We are based in Dubai, UAE, and supply buyers across the UAE, the GCC, Africa, Europe and Asia-Pacific. Shipping method, lead time and documentation are confirmed in your quotation.
