Kingston Server Premier 96GB DDR5 5600MT/s ECC Registered DIMM 2Rx4 (KSM56R46BD4PMI-96HMI)

Kingston Server Premier 96GB DDR5 5600MT/s ECC Registered DIMM 2Rx4 (KSM56R46BD4PMI-96HMI)

96GB of DDR5-5600 registered ECC memory for dense, reliable server configurations.

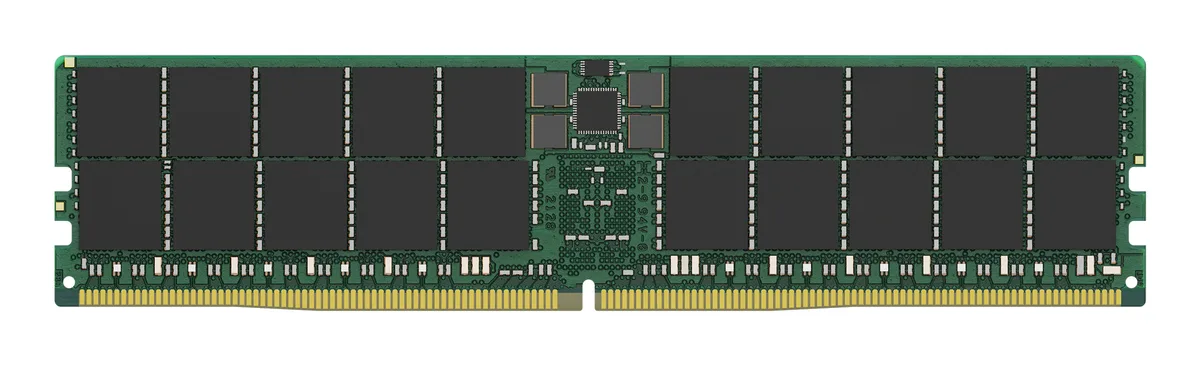

The Kingston KSM56R46BD4PMI-96HMI is a 96GB DDR5-5600 (PC5-5600) Registered EC8 288-pin DIMM from the Kingston Server Premier line. It is organised as 12G x 80-bit in a 2Rx4 configuration using forty 6G x 4-bit FBGA components based on 24Gbit DRAM density. The module runs at CL46 with JEDEC timing of 46-45-45 at 1.1V and combines On-Die ECC with x80 ECC across 2 independent I/O sub channels.

Perfect for

• Virtualisation hosts adding high per-module capacity to support more virtual machines per server.
• Database servers providing large ECC-protected memory pools for in-memory and transactional workloads.
• Private cloud infrastructure scaling DDR5 registered memory across multi-tenant compute nodes.
• Analytics and HPC nodes supplying high-bandwidth DDR5-5600 memory for data-intensive processing.

Why buyers choose this model

• 96GB per module. Each DIMM delivers 96GB using 24Gbit DRAM density in a 12G x 80-bit organisation.
• DDR5-5600 speed. The module operates at DDR5-5600 (PC5-5600) with CL46 and JEDEC timing of 46-45-45 at 1.1V.
• Layered error correction. It combines On-Die ECC with x80 ECC across 2 independent I/O sub channels.
• Repair and management features. Hard/Soft Post Package Repair and sideband access with I3C/I2C are supported.
• Wide operating range. The module is rated for operation from 0°C to +95°C with a PCB height of 1.23" (31.25mm).

Key specifications

Specifications as published by Kingston for this part number. The full list is in the Specifications tab.
