Kingston System-Specific Memory 96GB DDR5 6400MT/s ECC Registered DIMM (KTL-TS564D4-96G)

Kingston System-Specific Memory 96GB DDR5 6400MT/s ECC Registered DIMM (KTL-TS564D4-96G)

96GB of DDR5 6400MT/s ECC registered capacity for server memory expansion.

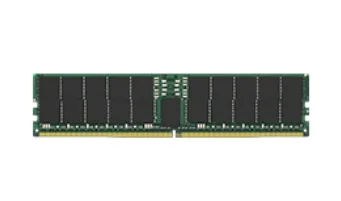

The Kingston KTL-TS564D4-96G is a 96GB DDR5 ECC Registered DIMM from the Kingston System-Specific Memory (Server) line, running at 6400MT/s with CL52 latency. It is a 288-pin, 2RX4 module built on 24Gbit DRAM and operating at 1.1V. An example compatibility listing is the Lenovo ThinkSystem SR645 V3.

Perfect for

• Virtualisation hosts adding memory capacity to run more virtual machines per server.
• Database servers expanding RAM for in-memory and transactional workloads.
• Server memory upgrades increasing capacity in existing rack servers.
• Data centre compute nodes populating DIMM slots for memory-intensive applications.

Why buyers choose this model

• High capacity per module. Each module provides 96GB of DDR5 memory.
• DDR5 speed. The module is rated at 6400MT/s with CL52 latency.
• Error correction. It is an ECC Registered DIMM for server use.
• Low operating voltage. The module operates at 1.1V.
• Server-oriented organisation. It uses a 2RX4 organisation with 24Gbit DRAM density in a 288-pin format.

Key specifications

Specifications as published by Kingston for this part number. The full list is in the Specifications tab.
