Kingston Server Premier 16GB DDR5 5600MT/s ECC Registered DIMM 1Rx8 (KSM56R46BS8PMI-16HAI)

Kingston Server Premier 16GB DDR5 5600MT/s ECC Registered DIMM 1Rx8 (KSM56R46BS8PMI-16HAI)

16GB of DDR5 5600MT/s ECC Registered memory for dependable server workloads.

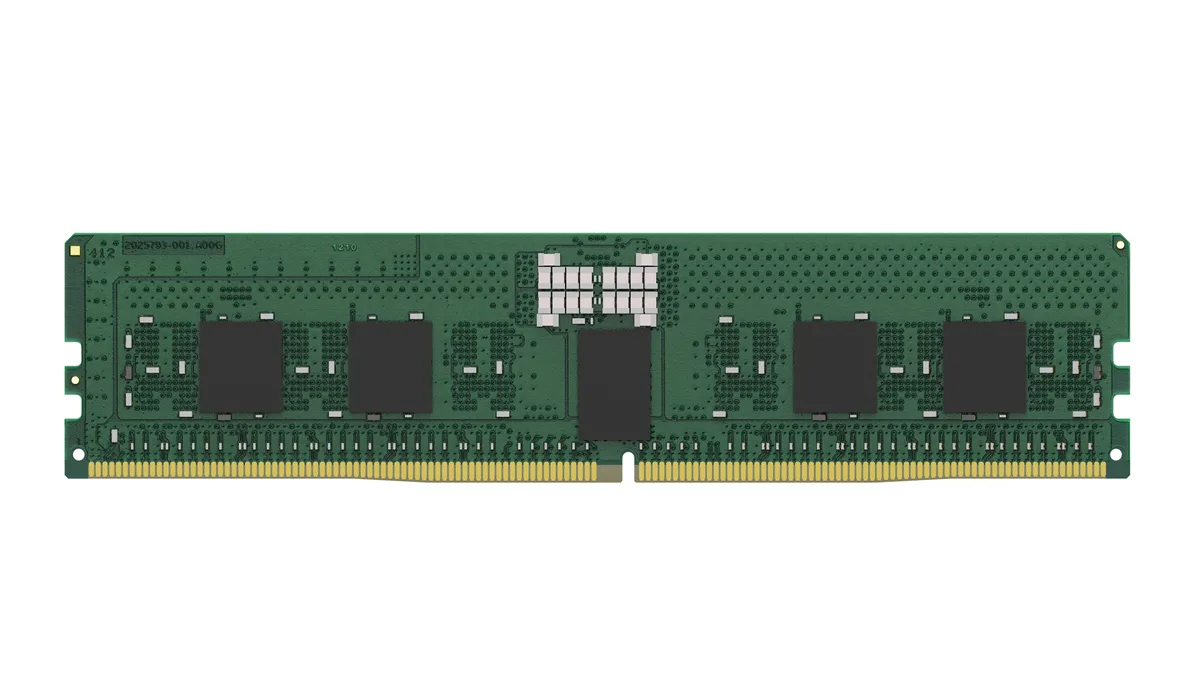

The Kingston KSM56R46BS8PMI-16HAI is a Server Premier 16GB DDR5 5600MT/s ECC Registered DIMM in a 288-pin form factor. It is a single-rank 1Rx8 module built with ten 2G x 8-bit FBGA components using 16Gbit DRAM density. It runs at CL46 with JEDEC timing of 46-45-45 at 1.1V and combines x80 ECC with On-Die ECC.

Perfect for

• Virtualisation hosts adding registered DDR5 capacity to servers running multiple virtual machines.
• Database servers supporting memory-dependent database workloads with ECC protection.
• Enterprise application servers providing error-correcting memory for business-critical applications.
• Data centre server upgrades expanding or replacing memory in DDR5 RDIMM-based server platforms.

Why buyers choose this model

• DDR5 5600MT/s speed. The module is rated PC5-5600 with CL46 and JEDEC timing of 46-45-45 at 1.1V.
• Layered error correction. It provides x80 ECC across two independent I/O sub channels plus On-Die ECC.
• Single-rank design. It uses a 1Rx8 ranking with ten 2G x 8-bit FBGA components of 16Gbit density.
• Post Package Repair. Hard and Soft Post Package Repair are supported by the module.
• Low operating voltage. It operates at a typical VDD of 1.1V and includes sideband access with I3C/I2C.

Key specifications

Specifications as published by Kingston for this part number. The full list is in the Specifications tab.
