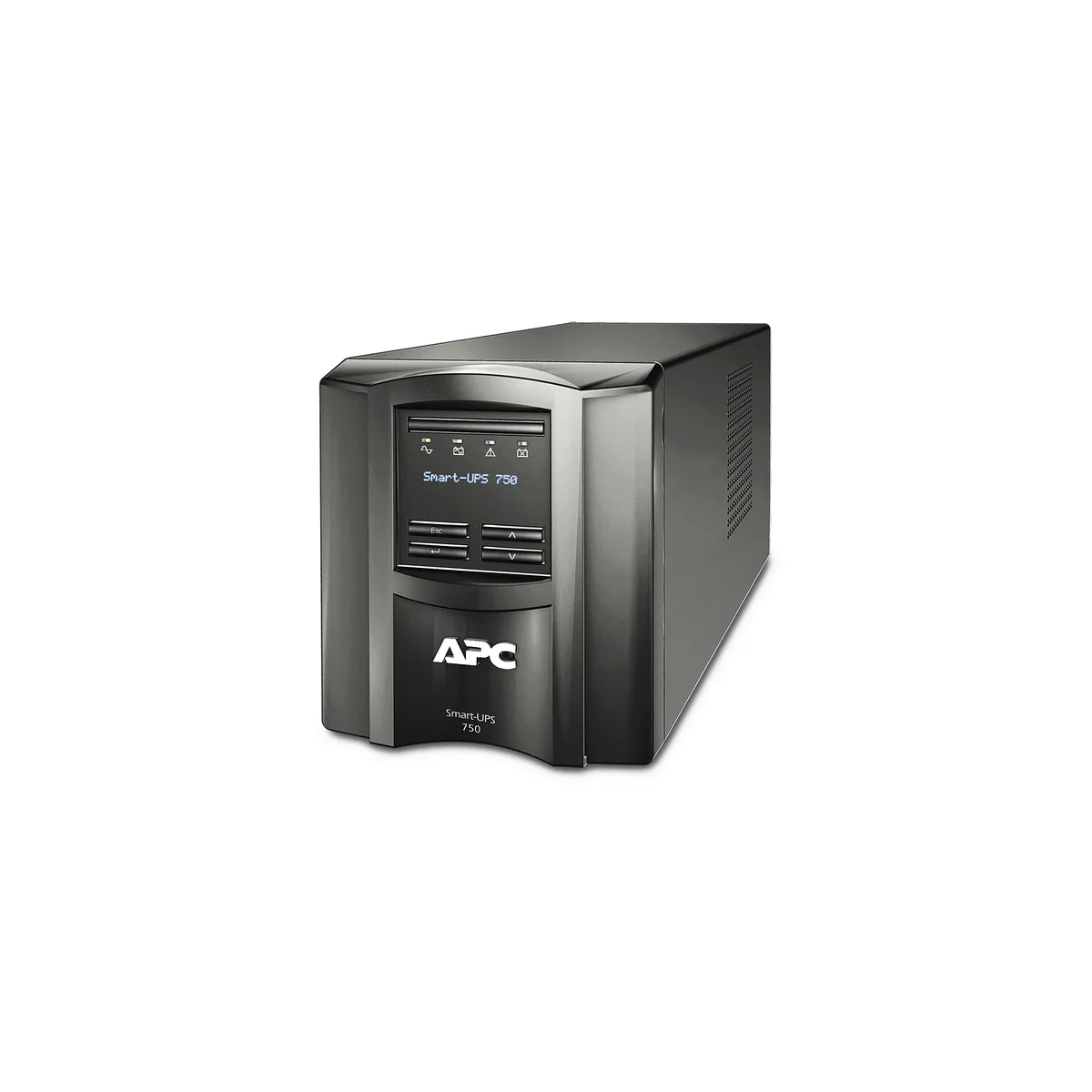

APC Smart-UPS 750VA LCD 230V Tower UPS
Brand: APC | Category: UPS & Power Protection
SKU: SMT750I | Part #: SMT750I | MPN: SMT750I
Contact for Pricing — Request a Quote
About the APC Smart-UPS 750VA LCD 230V Tower UPS
This tower-format APC Smart-UPS 750VA LCD 230V (SMT750I) delivers approximately 5 minutes of runtime at full 500 W load, making it an essential backup power solution for time-critical enterprise infrastructure. The unit operates on line-interactive topology with automatic voltage regulation (AVR) boost and trim, protecting connected equipment across an input voltage range of 160–286 V while maintaining 230 V output at 47–53 Hz synchronized to mains frequency.
Built by APC by Schneider Electric, the SMT750I houses a maintenance-free sealed lead-acid hot-swappable battery and transfers to battery power in less than 6 ms typical, ensuring seamless continuity for servers, storage systems, and networking gear. The unit features six IEC 320 C13 output connectors fed from a single IEC 320 C14 input, one SmartSlot expansion bay, and dual communication via USB and RS-232 (DB-9) for integration with enterprise monitoring platforms. Audible noise measures 45 dBA at 1 metre, suitable for office and datacenter environments. Operating temperature spans 0–40 °C, and input frequency tolerance reaches 45–65 Hz for global deployment flexibility. Network engineers and IT procurement teams seeking compact, reliable power protection for branch offices, server closets, and edge deployments will find the SMT750I a proven fit.
Typical Enterprise Deployments
- Branch office network infrastructure—switches, routers, and access points requiring continuous availability during mains interruptions
- Storage and backup appliances needing clean shutdown capability and runtime to preserve in-flight transactions
- Single-server environments and virtualization hosts requiring protection against power sags and momentary outages
- Telecommunications equipment and security systems in facilities where auxiliary generator startup delays demand intermediate UPS cover
- Remote locations and non-staffed sites benefiting from hot-swappable battery technology for proactive maintenance
Contact Omnixon Global for technical specifications, current availability, and to submit your RFQ for the SMT750I and related APC power protection solutions.
Technical Specifications
| Brand | APC |
| Category | UPS & Power Protection |
| SKU | SMT750I |
| Part Number | SMT750I |
| Condition | New |
| Capacity | 750 VA |
| Form Factor | Tower |
| Manufacturer Part Number | SMT750I |
| UPS Topology | Line-Interactive |
| Output Power Capacity | 500 W / 750 VA |
| Output Voltage | 230 V |
| Output Frequency (sync to mains) | 47 – 53 Hz |
| Waveform Type (on battery) | Sine wave |
| Input Voltage Range | 160 – 286 V |
| Input Frequency | 45 – 65 Hz |
| Input Connections | IEC 320 C14 |
| Output Connections | 6 × IEC 320 C13 |
| Battery Type | Maintenance-free sealed lead-acid, hot-swappable |
| Typical Backup Time at Half Load (250 W) | Approximately 18 minutes |
| Typical Backup Time at Full Load (500 W) | Approximately 5 minutes |
| Transfer Time | Less than 6 ms typical |
| Communication Interfaces | USB, RS-232 (DB-9) |
| SmartSlot | 1 × SmartSlot expansion bay |
| Automatic Voltage Regulation (AVR) | Yes — boost and trim |
| Audible Noise | 45 dBA at 1 metre |
| Operating Temperature | 0 – 40 °C |
| Humidity | 0 – 95% relative humidity, non-condensing |
| Form Factor | Tower |
| Dimensions (H × W × D) | 278 mm × 168 mm × 432 mm |
| Net Weight | 19.4 kg |
Frequently Asked Questions about APC Smart-UPS 750VA LCD 230V Tower UPS
What does the APC Smart-UPS 750VA LCD 230V Line-Interactive UPS do?
The APC Smart-UPS 750VA LCD 230V Line-Interactive UPS delivers conditioned, backed-up power for server rooms and data-center racks. Use cases include short-term ride-through during grid sag/spike events, graceful shutdown of critical compute, and runtime extension via external battery packs.
What are the headline specs of the APC Smart-UPS 750VA LCD 230V Line-Interactive UPS?
Key specifications for the APC Smart-UPS 750VA LCD 230V Line-Interactive UPS: new condition; brand APC by Schneider Electric; series Smart-UPS; model SMT750I; capacity 750VA / 500W; topology Line-Interactive; output Pure Sine Wave. Manufacturer part number SMT750I. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
