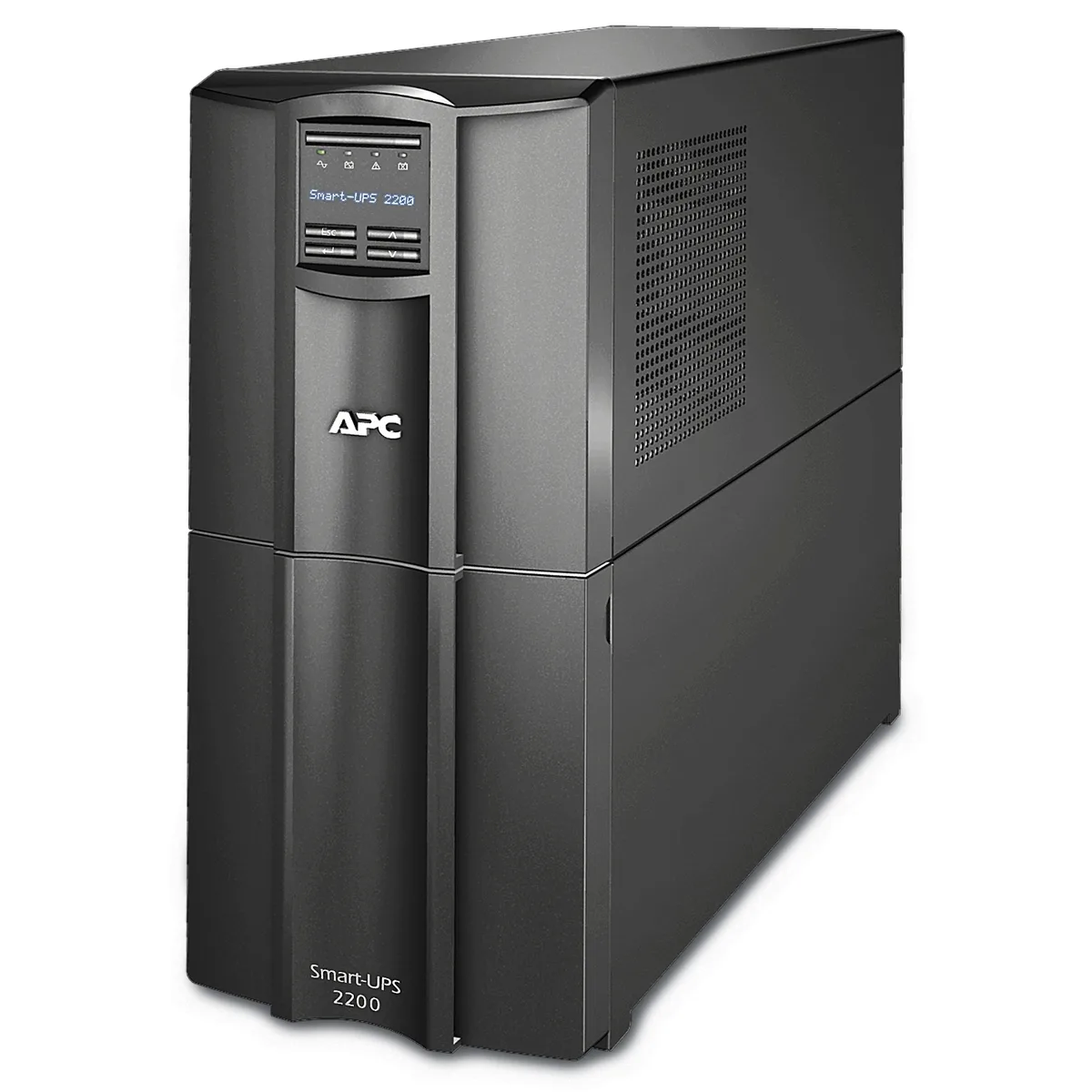

APC Smart-UPS 2200VA LCD 230V
Brand: APC | Category: UPS & Power Protection
SKU: SMT2200I | Part #: SMT2200I | MPN: SMT2200I
Contact for Pricing — Request a Quote
About the APC Smart-UPS 2200VA LCD 230V
Remote monitoring via USB, DB-9 serial, and SmartSlot connectivity is table-stakes for modern data centre operations. The APC Smart-UPS 2200VA LCD 230V (part number SMT2200I) delivers enterprise-grade uninterruptible power protection with line-interactive topology and automatic voltage regulation (AVR) across a wide input range of 160–286 V. Built by APC by Schneider Electric, this 2200 VA / 1980 W system maintains output stability at 230 V with pure sine wave delivery and ultra-fast transfer times below 6 ms, ensuring zero perception of outages for attached infrastructure. The unit operates across 45–65 Hz input frequency and supports both 50/60 Hz output with ±0.1 Hz precision on battery power.
IT procurement teams and infrastructure architects benefit from the SMT2200I's versatile form factor—deployable as a 2U rack-mount or standalone tower—paired with comprehensive output connectivity: eight IEC 320 C13 outlets plus two IEC 320 C19 connections for demanding loads. The sealed lead-acid battery achieves 90% recharge in 3 hours, while the LCD panel displays real-time load percentage, runtime estimate, input/output voltage, and battery status at a glance. Operating reliably between 0–40 °C in humidity up to 95% non-condensing, the SMT2200I integrates seamlessly into distributed IT environments. For detailed specifications, availability, or custom configurations suited to your power architecture, contact Omnixon Global to submit an RFQ.
Typical Enterprise Deployment Scenarios
- Edge server cabinets and branch office networking equipment requiring compact 2U form factor with dual outlet types
- Storage area network (SAN) switches and fabric interconnects needing pure sine wave output and sub-6 ms failover
- Remote monitoring via SNMP/Modbus through USB and serial interfaces for 24/7 IT operations centres
- Multi-tenant data hall distributions where 1980 W capacity supports mixed virtualization and application workloads
- High-availability clusters in regions with unstable utility power, leveraging wide 160–286 V AVR window
Technical Specifications
| Brand | APC |
| Category | UPS & Power Protection |
| SKU | SMT2200I |
| Part Number | SMT2200I |
| Condition | New |
| Capacity | 2200 VA |
| Form Factor | Tower/Rackmount |
| Manufacturer Part Number | SMT2200I |
| Topology | Line-interactive with automatic voltage regulation (AVR) |
| Output Power Capacity (VA) | 2200 VA |
| Output Power Capacity (Watts) | 1980 W |
| Output Voltage | 230 V |
| Output Frequency | 50/60 Hz ± 0.1 Hz (on battery) |
| Output Waveform (On Battery) | Pure sine wave |
| Input Voltage Range (AVR, no battery) | 160–286 V |
| Input Frequency | 45–65 Hz |
| Input Connection | IEC 320 C14 |
| Output Connections | 8 × IEC 320 C13, 2 × IEC 320 C19 |
| Communication Interfaces | USB, DB-9 serial, SmartSlot |
| Form Factor | 2U rack-mount / tower convertible |
| Display | LCD panel with load, runtime, input/output voltage, battery status |
| Battery Type | Maintenance-free sealed lead-acid with suspended electrolyte |
| Typical Recharge Time | 3 hours to 90% capacity |
| Transfer Time | < 6 ms typical line-interactive transfer |
| Operating Temperature | 0–40 °C |
| Relative Humidity (Operating) | 0–95% non-condensing |
| Dimensions (H × W × D) | 88 × 432 × 640 mm (2U rack) |
| Unit Weight | 27.2 kg |
Frequently Asked Questions about APC Smart-UPS 2200VA LCD 230V
What does the APC Smart-UPS 2200VA LCD 230V Line-Interactive UPS do?
The APC Smart-UPS 2200VA LCD 230V Line-Interactive UPS delivers conditioned, backed-up power for server rooms and data-center racks. Use cases include short-term ride-through during grid sag/spike events, graceful shutdown of critical compute, and runtime extension via external battery packs.
What are the headline specs of the APC Smart-UPS 2200VA LCD 230V Line-Interactive UPS?
Key specifications for the APC Smart-UPS 2200VA LCD 230V Line-Interactive UPS: new condition; brand APC by Schneider Electric; series Smart-UPS; model SMT2200I; capacity 2200VA / 1980W; topology Line-Interactive; output Pure Sine Wave. Manufacturer part number SMT2200I. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
