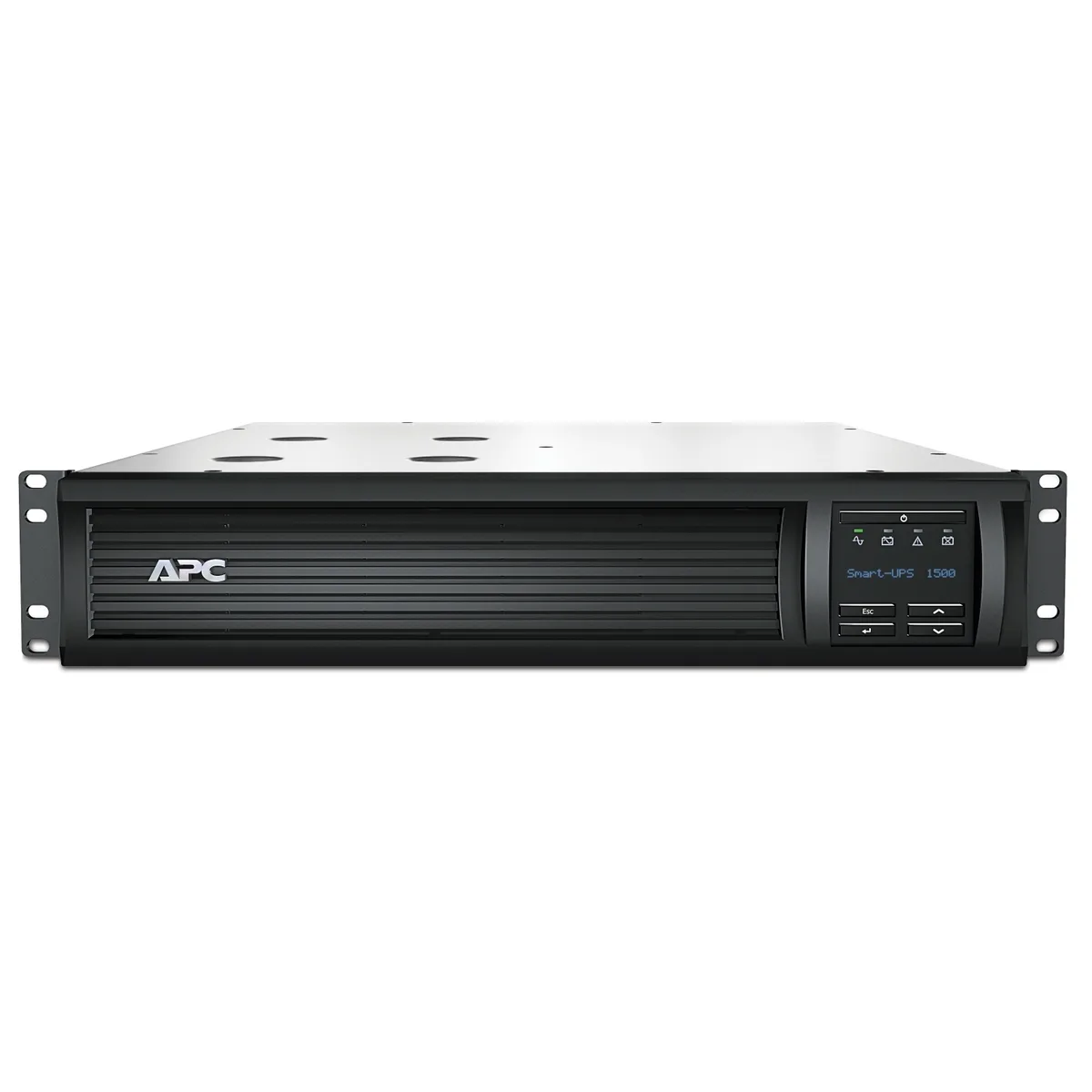

APC Smart-UPS 1500VA LCD RM 2U 230V UPS
Brand: APC | Category: UPS & Power Protection
SKU: SMT1500RMI2U | Part #: SMT1500RMI2U | MPN: SMT1500RMI2U
Contact for Pricing — Request a Quote
About the APC Smart-UPS 1500VA LCD RM 2U 230V UPS
The APC Smart-UPS 1500VA LCD RM 2U 230V UPS (model SMT1500RMI2U) delivers 1500 VA of output capacity in a compact 2U rack-mount form factor, making it ideal for equipment rooms where vertical space is precious and runtime reliability is non-negotiable. This line-interactive UPS with double-boost AVR protects critical infrastructure against power anomalies while maintaining pure sine wave output at 230 V AC ±5% during battery operation, ensuring sensitive equipment receives clean, stable power.
Built by APC by Schneider Electric, the SMT1500RMI2U is engineered for network engineers, IT procurement teams, and data center operators who demand fast failover and flexible power management. The unit accepts input voltage between 160–286 V at 50/60 Hz auto-sensing frequency, while its ≤ 6 ms transfer time to battery keeps connected devices online during mains interruptions. Eight IEC 320 C13 receptacles provide ample connectivity for servers, switches, and peripherals. A maintenance-free sealed lead-acid battery is hot-swappable and user-replaceable (RBC55 cartridge), eliminating costly service calls. SmartSlot connectivity combines USB Type-B and DB-9 serial ports for remote management and monitoring via the included LCD display, which shows load, battery status, input/output voltage, and remaining runtime. Operating temperature support spans 0–40 °C, covering most enterprise data center environments. Integrated surge protection shields both output circuits and communication lines from transients and electrical stress.
Key Specifications
- Output Capacity: 1500 VA / 1000 W
- Input Voltage Range (AVR): 160–286 V AC at 50/60 Hz
- Output Voltage on Battery: 230 V AC ±5%, pure sine wave
- Form Factor: 2U Rack-Mount
- Output Receptacles: 8 × IEC 320 C13
- Battery Type: Maintenance-free sealed lead-acid (VRLA), hot-swappable
- Management Interfaces: SmartSlot, USB Type-B, DB-9 serial
- Transfer Time to Battery: ≤ 6 ms typical
For detailed specifications, pricing, and availability of the APC SMT1500RMI2U, contact Omnixon Global via RFQ.
Technical Specifications
| Brand | APC |
| Category | UPS & Power Protection |
| SKU | SMT1500RMI2U |
| Part Number | SMT1500RMI2U |
| Condition | New |
| Capacity | 1500 VA |
| Form Factor | 2U |
| Manufacturer Part Number | SMT1500RMI2U |
| UPS Topology | Line-interactive with double-boost AVR |
| Output Capacity (VA) | 1500 VA |
| Output Capacity (Watts) | 1000 W |
| Input Voltage (Nominal) | 230 V AC |
| Input Frequency | 50/60 Hz (auto-sensing) |
| Input Voltage Range (AVR, no battery) | 160–286 V |
| Output Voltage (On Battery) | 230 V AC ±5% |
| Output Waveform (On Battery) | Pure sine wave |
| Output Receptacles | 8 × IEC 320 C13 |
| Form Factor | 2U Rack-Mount |
| Management Interface | SmartSlot (1 slot), USB, Serial (DB-9) |
| Display | LCD with load, battery, input/output voltage, runtime |
| Transfer Time (to Battery) | ≤ 6 ms typical |
| Battery Type | Maintenance-free sealed lead-acid (VRLA) |
| Battery Replacement | Hot-swappable, user-replaceable (RBC55) |
| Surge Protection | Included (output and communication line protection) |
| Communication Ports | USB Type-B, DB-9 serial |
| Operating Temperature | 0–40 °C |
| Humidity | 0–95% non-condensing |
| Dimensions (H × W × D) | 88 mm × 432 mm × 607 mm (2U) |
| Net Weight | Approximately 26.8 kg (with batteries) |
Frequently Asked Questions about APC Smart-UPS 1500VA LCD RM 2U 230V UPS
What does the APC Smart-UPS 1500VA RM 2U LCD 230V Rackmount UPS do?
The APC Smart-UPS 1500VA RM 2U LCD 230V Rackmount UPS delivers conditioned, backed-up power for server rooms and data-center racks. Use cases include short-term ride-through during grid sag/spike events, graceful shutdown of critical compute, and runtime extension via external battery packs.
What are the headline specs of the APC Smart-UPS 1500VA RM 2U LCD 230V Rackmount UPS?
Key specifications for the APC Smart-UPS 1500VA RM 2U LCD 230V Rackmount UPS: new condition; brand APC by Schneider Electric; series Smart-UPS RM; model SMT1500RMI2U; capacity 1500VA / 1000W; topology Line-Interactive; output Pure Sine Wave. Manufacturer part number SMT1500RMI2U. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
