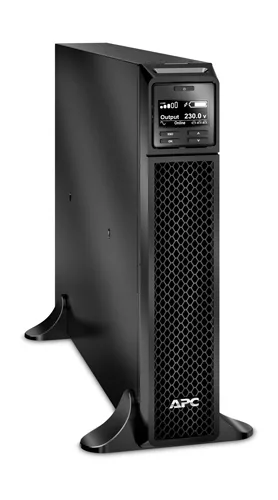

APC Smart-UPS SRT 2200VA 230V
Brand: APC | Category: UPS & Power Protection
SKU: SRT2200XLI | Part #: SRT2200XLI | MPN: SRT2200XLI
Contact for Pricing — Request a Quote
About the APC Smart-UPS SRT 2200VA 230V
Remote monitoring and SNMP/Modbus/USB management interfaces are table-stakes for enterprise power protection—and the APC Smart-UPS SRT 2200VA 230V delivers exactly that foundation. Built on APC by Schneider Electric's proven double-conversion online topology, the SRT2200XLI provides zero-transfer-time battery switchover, eliminating the millisecond gaps that disrupt critical workloads. IT procurement teams and network engineers standardizing on resilient UPS infrastructure will find a 2200 VA / 1980 W capacity unit that maintains less than 2% output voltage distortion under full linear load, with automatic input frequency sensing across 40–70 Hz and broad voltage tolerance from 160–286 V AC—ideal for challenging power environments across the Middle East region.
The APC platform combines sealed lead-acid battery technology with an intuitive LCD display showing real-time load level, battery charge state, remaining runtime, and event logging. Connectivity spans USB, RS-232 serial, and a SmartSlot interface for optional network management cards, enabling centralized monitoring and alerting. Eight IEC 320 C13 outlets and one C19 outlet (plus a single C14 input) support flexible device distribution across cabinets and racks. At half load (990 W), backup runtime reaches approximately 14 minutes; at full load (1980 W), approximately 5.9 minutes—sufficient window for graceful shutdown or failover activation. The maintenance-free architecture and 230 V AC nominal output at 50/60 Hz ± 3 Hz synchronization make the SRT2200XLI a straightforward drop-in for organisations seeking certified enterprise-grade power continuity without complex commissioning overhead.
Key Specifications
- Manufacturer Part Number: SRT2200XLI
- Output Power Capacity: 2200 VA / 1980 W at 0.9 power factor
- Topology: Double-conversion online with 0 ms transfer time
- Output Connections: 8 × IEC 320 C13, 1 × IEC 320 C19
- Communication Interfaces: USB, RS-232 serial, SmartSlot (optional network management card)
- Typical Backup Time: Approximately 14 minutes at half load (990 W); approximately 5.9 minutes at full load (1980 W)
For a detailed specification sheet, compatibility assessment, or volume pricing on the APC Smart-UPS SRT 2200VA 230V, submit your request to Omnixon Global today.
Technical Specifications
| Brand | APC |
| Category | UPS & Power Protection |
| SKU | SRT2200XLI |
| Part Number | SRT2200XLI |
| Condition | New |
| Capacity | 2200 VA |
| Form Factor | Tower |
| Manufacturer Part Number | SRT2200XLI |
| UPS Topology | Double-conversion online |
| Output Power Capacity (VA) | 2200 VA |
| Output Power Capacity (Watts) | 1980 W |
| Output Power Factor | 0.9 |
| Nominal Output Voltage | 230 V AC |
| Output Voltage Distortion (THD) | Less than 2% at full linear load |
| Output Frequency (synchronised) | 50/60 Hz ± 3 Hz |
| Nominal Input Voltage | 230 V AC |
| Input Voltage Range | 160–286 V AC (without switching to battery) |
| Input Frequency Range | 40–70 Hz (auto-sensing) |
| Input Connection | IEC 320 C14 |
| Output Connections | 8 × IEC 320 C13, 1 × IEC 320 C19 |
| Battery Type | Maintenance-free sealed lead-acid with suspended electrolyte |
| Typical Backup Time at Half Load | Approximately 14 minutes (990 W) |
| Typical Backup Time at Full Load | Approximately 5.9 minutes (1980 W) |
| Transfer Time (AC to battery) | 0 ms (double-conversion; no transfer) |
| Communication Interfaces | USB, RS-232 serial, SmartSlot (for optional network management card) |
| Display | LCD with load level, battery charge, runtime, and event log |
| Form Factor | Tower (rack-convertible with optional rack kit) |
| Dimensions (H × W × D) | 432 mm × 178 mm × 665 mm (tower orientation) |
| Net Weight | 49.5 kg |
| Operating Temperature | 0–40 °C |
| Operating Relative Humidity | 0–95% non-condensing |
| Audible Noise at 1 m | 50 dBA |
Frequently Asked Questions about APC Smart-UPS SRT 2200VA 230V
What does the APC Smart-UPS SRT 2200VA 230V Online Double-Conversion UPS do?
The APC Smart-UPS SRT 2200VA 230V Online Double-Conversion UPS delivers conditioned, backed-up power for server rooms and data-center racks. Use cases include short-term ride-through during grid sag/spike events, graceful shutdown of critical compute, and runtime extension via external battery packs.
What are the headline specs of the APC Smart-UPS SRT 2200VA 230V Online Double-Conversion UPS?
Key specifications for the APC Smart-UPS SRT 2200VA 230V Online Double-Conversion UPS: new condition; brand APC by Schneider Electric; series Smart-UPS SRT; model SRT2200XLI; capacity 2200VA / 1980W; topology Online Double-Conversion; power factor 1.0. Manufacturer part number SRT2200XLI. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
