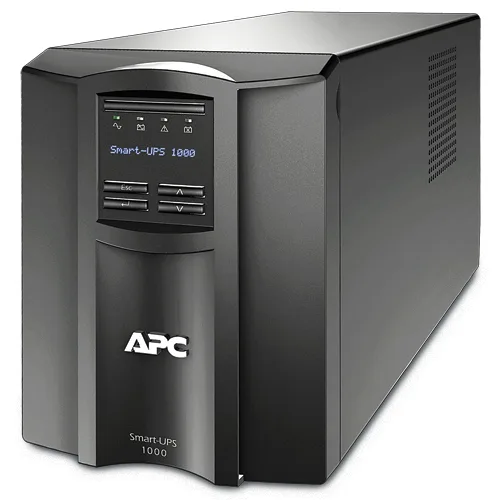

APC Smart-UPS 1000VA LCD 230V
Brand: APC | Category: UPS & Power Protection
SKU: SMT1000I | Part #: SMT1000I | MPN: SMT1000I
Contact for Pricing — Request a Quote
About the APC Smart-UPS 1000VA LCD 230V
Maintenance-free sealed lead-acid (VRLA) battery technology with hot-swappable RBC6 cartridge design eliminates extended downtime during replacements, making the APC Smart-UPS 1000VA LCD 230V (SMT1000I) an economical choice for always-on deployments where battery service intervals directly impact total cost of ownership. This line-interactive topology UPS delivers 1000 VA / 700 W of continuous output capacity with automatic input frequency sensing across 50 / 60 Hz ± 3 Hz, adapting seamlessly to global power standards. The unit maintains output voltage at 230 V AC via sine-wave waveform during battery operation, supported by an input voltage range of 160–286 V, ensuring stable protection even in unstable electrical environments. Eight IEC 320 C13 output receptacles connect to enterprise equipment, while a single IEC 320 C14 input connection feeds the system from wall or PDU distribution.
Network infrastructure teams, IT procurement departments, and data center operations engineers standardly deploy APC Smart-UPS units to protect servers, networking hardware, and storage systems from power faults and brownouts. Backup runtime reaches approximately 11 minutes at half load (350 W) and approximately 3.4 minutes at full load (700 W), sufficient for controlled shutdown sequences or brief mains interruptions. The graphical LCD display shows real-time status, load percentage, battery percentage, input/output voltage, and remaining runtime—critical visibility for operations staff. Transfer time to battery is ≤ 6 ms, preventing application crashes or data loss during outages. Communication options include USB, DB-9 serial, and SmartSlot connectivity for optional network management expansion, with APC PowerChute Business Edition and PowerChute Network Shutdown software enabling automated shutdown policies across multiple systems.
The SMT1000I combines proven APC by Schneider Electric engineering with straightforward serviceability and enterprise-grade monitoring, making it suitable for small-to-medium server rooms, branch office deployments, and edge computing installations. Contact Omnixon Global to request a quote for bulk orders, site-specific configurations, or extended support agreements.
Technical Specifications
| Brand | APC |
| Category | UPS & Power Protection |
| SKU | SMT1000I |
| Part Number | SMT1000I |
| Condition | New |
| Capacity | 1000 VA |
| Form Factor | Tower |
| Manufacturer Part Number | SMT1000I |
| Topology | Line-Interactive |
| Output Capacity (VA) | 1000 VA |
| Output Capacity (Watts) | 700 W |
| Input Voltage Range (AVR, no battery) | 160 – 286 V |
| Nominal Input Voltage | 230 V AC |
| Input Frequency | 50 / 60 Hz ± 3 Hz (auto-sensing) |
| Input Connection | IEC 320 C14 |
| Output Voltage | 230 V AC |
| Output Waveform (on battery) | Sine wave |
| Output Receptacles | 8 × IEC 320 C13 |
| Transfer Time (to battery) | ≤ 6 ms |
| Battery Type | Maintenance-free sealed lead-acid (VRLA) |
| Battery Cartridge | RBC6 (hot-swappable) |
| Typical Backup Time at Full Load (700 W) | Approximately 3.4 minutes |
| Typical Backup Time at Half Load (350 W) | Approximately 11 minutes |
| Communication Interfaces | USB, DB-9 serial, SmartSlot (for optional network management card) |
| Management Software | APC PowerChute Business Edition, PowerChute Network Shutdown |
| Display | Graphical LCD with status, load %, battery %, input/output voltage, runtime |
| Form Factor | Tower (rack-mountable with optional kit, 2U) |
| Dimensions (H × W × D) | 234 mm × 107 mm × 368 mm |
| Net Weight | 13.0 kg |
| Operating Temperature | 0 – 40 °C |
| Humidity | 0 – 95% relative humidity, non-condensing |
| Surge Energy Rating | 320 Joules |
| Certifications | CE, VDE, GOST |
Frequently Asked Questions about APC Smart-UPS 1000VA LCD 230V
What does the APC Smart-UPS 1000VA LCD 230V Line-Interactive UPS do?
The APC Smart-UPS 1000VA LCD 230V Line-Interactive UPS delivers conditioned, backed-up power for server rooms and data-center racks. Use cases include short-term ride-through during grid sag/spike events, graceful shutdown of critical compute, and runtime extension via external battery packs.
What are the headline specs of the APC Smart-UPS 1000VA LCD 230V Line-Interactive UPS?
Key specifications for the APC Smart-UPS 1000VA LCD 230V Line-Interactive UPS: new condition; brand APC by Schneider Electric; series Smart-UPS; model SMT1000I; capacity 1000VA / 700W; topology Line-Interactive; output Pure Sine Wave. Manufacturer part number SMT1000I. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
