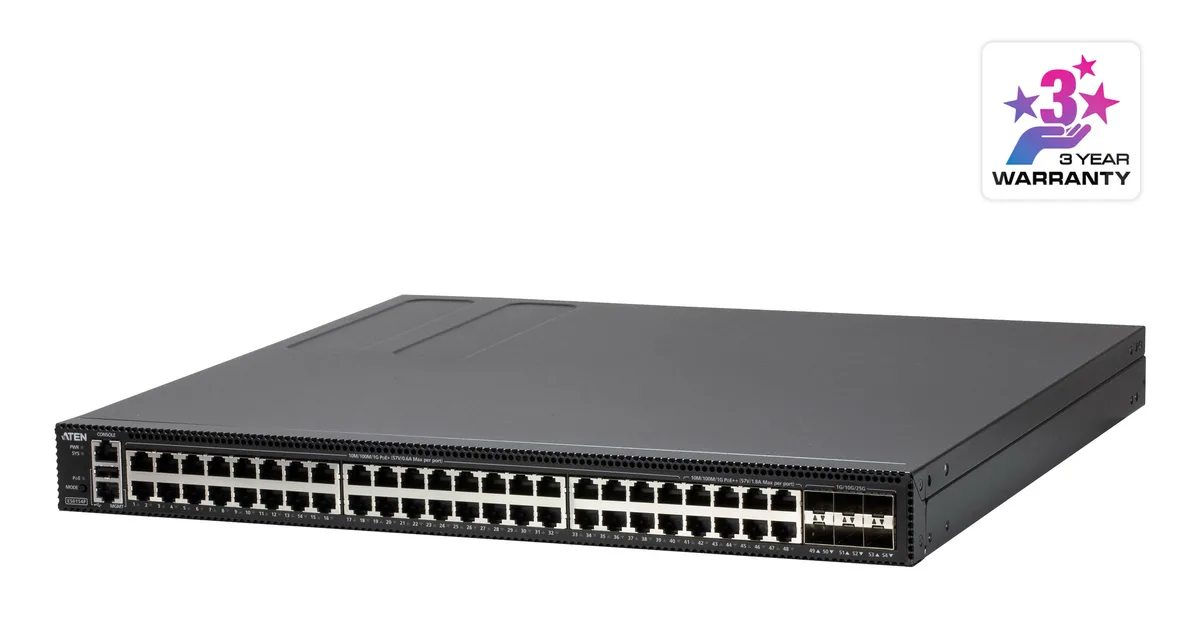

The ES0154P 54-Port Layer 2+ Gigabit Ethernet Managed Switch is ideal for installation with ATEN KVM over IP products. It simplifies the process of building OT infrastructure with the ATEN KVM over IP series by eliminating the complexities of setup. It provides a high-performance 54-port configuration, a complete array of L2+ features, and advanced functionalities including Layer 3 static route, DHCP server, IPv6 support, and LLDP, making it a versatile solution for enhancing network performance. It offers a combination of SFP28 (fiber) and RJ-45 (copper) ports for servicing a range of network needs.
The ES0154P supports 6 (1G/10G/25G) SFP28, 48 (10M/100M/1G) RJ-45 with PoE+ (Support 802.3at/af) ports, and PoE++ (Support 802.3bt) ports (41-48 ports only). The ES0154P is equipped with Power over Ethernet (PoE) functionality, featuring a substantial 740 Watts power budget distributed across its 48 RJ-45 ports. This eliminates the necessity for external power adapters and leads to a substantial reduction in power configuration expenses.
Deploying the ES0154P is quick and hassle-free. Its plug-and-play design eliminates the need for software installation or device configuration. Just connect the transmitters and receivers to the ES0154P using Cat 5e/6 cables. With a full range of functions to help with optimizing network efficiency, manageability and reliability for their network environment, the ES0154P serves as an ideal network switch solution. It is particularly valuable in applications where connected devices play a critical role in network operation, including OT infrastructure for both SMBs and enterprises.
| Brand | Aten |
| Category | Network Switches |
| SKU | ES0154P-AX-U |
| Part Number | ES0154P-AX-U |
| Condition | New |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45 |
| Fiber optic connector | SFP28 |
| SFP module slots quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Flash memory | 256 MB |
| Internal memory | 1000 MB |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| MAC address table | 32000 entries |
| Forwarding rate | 295 Mpps |
| Switching capacity | 396 Gbit/s |
| Total Power over Ethernet (PoE) budget | 740 W |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet (PoE) | Yes |
| Supported network protocols | IGMP v1/v2/v3, IGMP v1/v2 |
| IGMP snooping | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+ |
| Switch type | Managed |
| Power consumption (max) | 835 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power source | AC |
| Housing material | Metal |
| Product colour | Black |
| Rack mounting | Yes |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | -5 - 45 °C |
| Weight | 5.42 kg |
| Height | 43.6 mm |
| Depth | 442 mm |
| Width | 420 mm |
The Aten 54-PORT Layer 2+ Gigabit Ethernet Managed Switch with PoE is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the Aten 54-PORT Layer 2+ Gigabit Ethernet Managed Switch with PoE: new condition; usb 2.0 ports quantity 1; console port RJ-45; fiber optic connector SFP28; sfp module slots quantity 6; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 48. Manufacturer part number ES0154P-AX-U. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The Aten 54-PORT Layer 2+ Gigabit Ethernet Managed Switch with PoE interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
