Brand: TP-Link | Category: Network Switches
SKU: ES205G | Part #: ES205G | MPN: ES205G
Contact for Pricing — Request a Quote

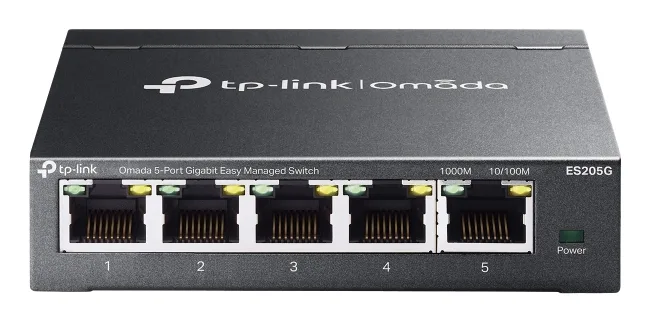

The TP-Link Omada ES205G is a 5-port Easy Managed Gigabit desktop switch. It provides five RJ-45 Gigabit Ethernet ports (10/100/1000) with auto-negotiation and Auto MDI/MDI-X, and its fanless design operates without fan noise.
The switch uses store-and-forward switching with a switching capacity of 10 Gbit/s, a forwarding rate of 7.4 Mpps, 4 MB of packet buffer memory and an 8000-entry MAC address table. Management features include MTU VLAN, port-based VLAN and tagged VLAN, plus link aggregation, port mirroring, flow control, loop protection and jumbo frame support. Supported standards include IEEE 802.1Q, 802.1ab, 802.1p and 802.3x.
The ES205G suits small offices, workgroups and desktop deployments that need basic traffic segmentation and monitoring on a compact Gigabit switch.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | ES205G |
| Part Number | ES205G |
| Condition | New |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| VLAN support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Port mirroring | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x |
| Fanless | Yes |
| Packet buffer memory | 4 MB |
| Jumbo frames | 15 |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| MAC address table | 8000 entries |
| Forwarding rate | 7.4 Mpps |
| Switching capacity | 10 Gbit/s |
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
| DC input voltage | 5 V |
| Power supply included | Yes |
| Power source | AC/DC |
| Wall mountable | Yes |
| LED indicators | Yes |
| Reset button | Yes |
| Product colour | Black |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Height | 25 mm |
| Depth | 98 mm |
| Width | 100 mm |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
The TP-Link Omada 5-PORT Easy Managed Gigabit Desktop Switch, GbE(5) is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Omada 5-PORT Easy Managed Gigabit Desktop Switch, GbE(5): new condition; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 5; virtual lan features MTU VLAN, Port-based VLAN, Tagged VLAN; vlan support Yes; flow control support Yes; link aggregation Yes. Manufacturer part number ES205G. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link Omada 5-PORT Easy Managed Gigabit Desktop Switch, GbE(5) interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
