Brand: TP-Link | Category: Network Switches
SKU: ES206X-M2 | Part #: ES206X-M2 | MPN: ES206X-M2
Contact for Pricing — Request a Quote

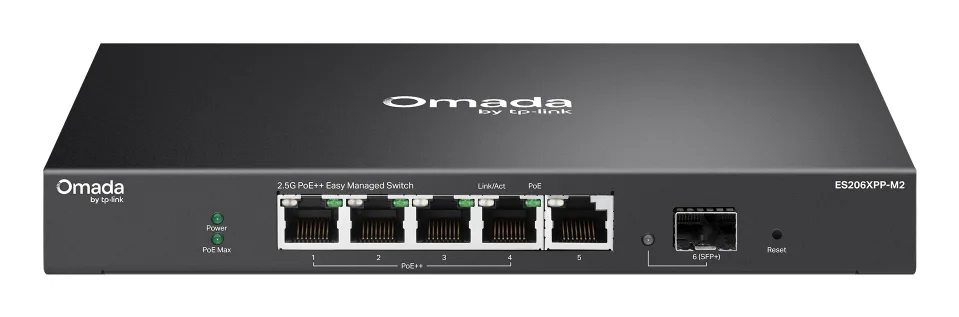

The TP-Link Omada ES206X-M2 is an easy managed switch with five 2.5G RJ-45 Ethernet ports supporting 100/1000/2500 Mbps and one SFP+ module slot. It uses store-and-forward switching with a forwarding rate of 33.48 Mpps, a 16,000-entry MAC address table and 0.64 MB of packet buffer memory. Jumbo frames are supported.
Management features include port-based and MTU VLAN with IEEE 802.1Q support, link aggregation, flow control, broadcast storm control and port mirroring. The switch complies with IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3z, 802.3ae, 802.3aq, 802.3x, 802.1p and 802.1ab. It has 64 MB of flash memory, upgradeable firmware and a rated MTBF of 1,223,587 hours.
The ES206X-M2 suits small office and workgroup networks that need multi-gigabit copper connections and basic traffic segmentation.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | ES206X-M2 |
| Part Number | ES206X-M2 |
| Condition | New |
| SFP+ module slots quantity | 1 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Virtual LAN features | MTU VLAN, Port-based VLAN |
| VLAN support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Port mirroring | Yes |
| 10G support | No |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab |
| Mean time between failures (MTBF) | 1223587 h |
| Firmware upgradeable | Yes |
| Flash memory | 64 MB |
| Packet buffer memory | 0.64 MB |
| Jumbo frames | 10 |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| MAC address table | 16000 entries |
| Forwarding rate | 33.48 Mpps |
| Switching capacity | 45 Gbit/s |
| Power over Ethernet (PoE) | No |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Power consumption (max) | 5.63 W |
| AC input voltage | 100 - 240 V |
| Power source | AC |
| LED indicators | Yes |
| Product colour | Black |
| Form factor | Desktop/Wall-Mounting |
| Heat dissipation | 19.21 BTU/h |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -5 - 40 °C |
| Weight | 520 g |
| Height | 25.4 mm |
The TP-Link Omada 5-PORT Easy Managed 2.5G Switch, 2.5G(5), 10G SPF+(1) is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Omada 5-PORT Easy Managed 2.5G Switch, 2.5G(5), 10G SPF+(1): new condition; sfp+ module slots quantity 1; basic switching rj-45 ethernet ports type 2.5G Ethernet (100/1000/2500); basic switching rj-45 ethernet ports quantity 5; virtual lan features MTU VLAN, Port-based VLAN; vlan support Yes; flow control support Yes. Manufacturer part number ES206X-M2. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link Omada 5-PORT Easy Managed 2.5G Switch, 2.5G(5), 10G SPF+(1) interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
