Brand: TP-Link | Category: Network Switches
SKU: ES206GP | Part #: ES206GP | MPN: ES206GP
Contact for Pricing — Request a Quote

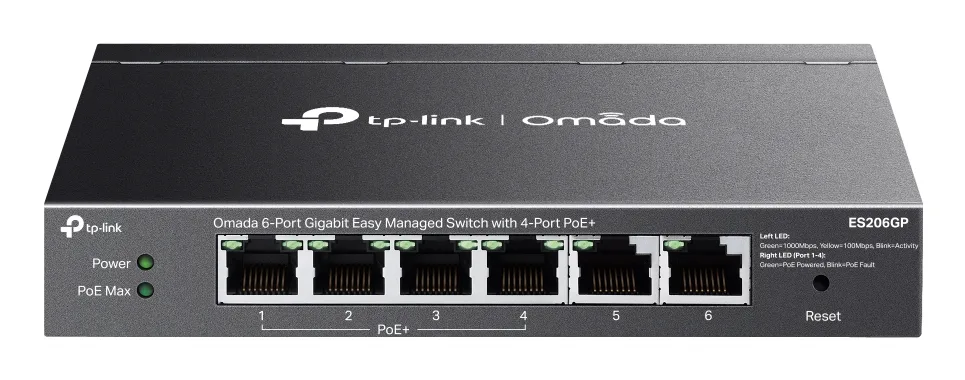

The TP-Link Omada ES206GP is an Easy Managed Gigabit desktop switch with six 10/100/1000 RJ-45 Ethernet ports. Four of the ports provide PoE+ (IEEE 802.3at) within a 65W power budget, so powered devices can draw power over the same cable that carries data. The design is fanless, and the switch supports Zero Touch Provisioning and upgradeable firmware.
Management features include port-based, tagged and MTU VLAN, link aggregation, port mirroring, flow control (IEEE 802.3x), fast leave, auto-negotiation and Auto MDI/MDI-X. The switch supports IEEE 802.1Q, 802.1p and 802.1ab. It uses store-and-forward switching with 4 MB of packet buffer memory and supports jumbo frames.
The ES206GP suits small offices, branch sites and workspaces that need a compact, quiet switch for a handful of wired and PoE-powered devices with basic traffic segmentation.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | ES206GP |
| Part Number | ES206GP |
| Condition | New |
| Gigabit Ethernet (copper) ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| VLAN support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Fast leave | Yes |
| Port mirroring | Yes |
| Zero Touch Provisioning (ZTP) | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x |
| Fanless | Yes |
| Firmware upgradeable | Yes |
| Packet buffer memory | 4 MB |
| Jumbo frames | 15 |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| MAC address table | 8000 entries |
| Forwarding rate | 7.4 Mpps |
| Switching capacity | 12 Gbit/s |
| Total Power over Ethernet (PoE) budget | 65 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet (PoE) | Yes |
| Loop protection | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
| Unified static configuration | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
| Surge protection voltage | 6 kV |
| Surge protection | Yes |
| Input current | 1.31 A |
The TP-Link Omada 6-PORT Easy Managed Gigabit Desktop Switch, POE+(4), GbE(6), 65W is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Omada 6-PORT Easy Managed Gigabit Desktop Switch, POE+(4), GbE(6), 65W: new condition; gigabit ethernet (copper) ports quantity 6; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 6; virtual lan features MTU VLAN, Port-based VLAN, Tagged VLAN; vlan support Yes; flow control support Yes. Manufacturer part number ES206GP. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link Omada 6-PORT Easy Managed Gigabit Desktop Switch, POE+(4), GbE(6), 65W interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
