Brand: TP-Link | Category: Network Adapters & NICs
SKU: ARCHER TXE70UH | Part #: ARCHER TXE70UH | MPN: ARCHER TXE70UH
Contact for Pricing — Request a Quote
FASTER. BROADER.
UNSTOPPABLE.

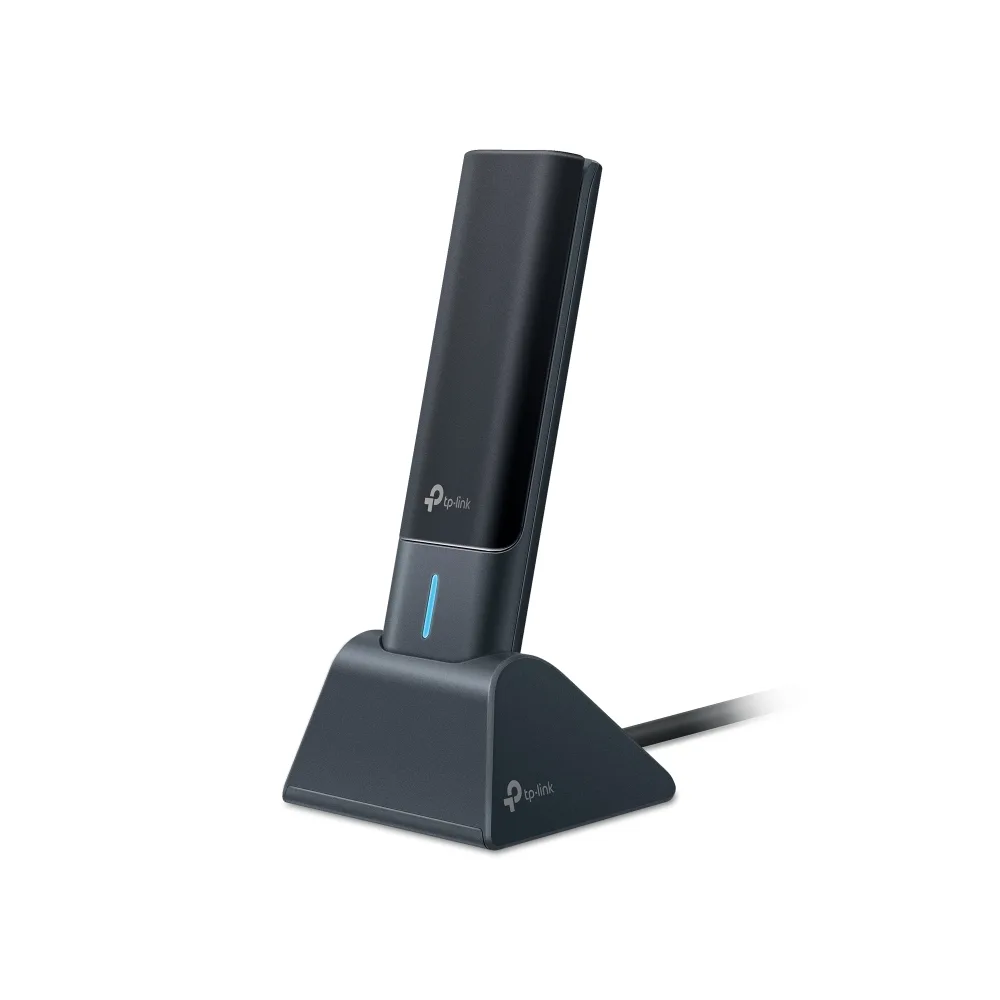

AXE5400 Wi-Fi 6E High Gain Wireless USB Adapter
WiFi 6E: A Freer and Faster Future
WiFi 6E introduces the brand new 6 GHz band without any overlap or interference from other bands and older devices. This means a congestion-free frequency that offers more bandwidth, faster speed, and lower latency.
Accelerate your PC with full blood
-
Greater Coverage
and Stability
The multi-angle adjustable high-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.
Lower Latency, Higher Efficiency, and Less Congestion
MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.
OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.
USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer TXE70UH ideal for HD streaming, online gaming and large file downloads.
Easy Use with a Flexible Design
A 1.2-meter USB 3.0 cable makes it easy to find a spot for the Archer TXE70UH in your workspace, and the adapter can be effortlessly attached removed from your computer as needed.
Setup Made Easy
TXE70UH comes with its driver pre-loaded. Just plug and install.
Next-Gen Security
WPA3 encryption protects your PC from brute-force attacks, keeping your personal data safe.
Operating Systems
Works with Windows 11/10
| Brand | TP-Link |
| Category | Network Adapters & NICs |
| SKU | ARCHER TXE70UH |
| Part Number | ARCHER TXE70UH |
| Condition | New |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Interface | WLAN |
| Host interface | USB |
| Connectivity technology | Wired & Wireless |
| Security algorithms | WEP, WPA, WPA2, WPA2-PSK, WPA3 |
| WLAN data transfer rates supported | 11,54,300,400,574,1732,2402 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Frequency range | 2.4 - 6 GHz |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Wi-Fi | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate | 5400 Mbit/s |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| LED indicators | Yes |
| Antenna | Yes |
| Antenna design | Internal |
| Internal | No |
| Product colour | Black |
| Component for | PC/Laptop |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Windows operating systems supported | Windows 10, Windows 11 |
| Height | 111.7 mm |
| Depth | 14.8 mm |
| Width | 30.5 mm |
| Quick installation guide | Yes |
| Cables included | USB |
The TP-Link Archer AXE5400 WI-FI 6E TRI-Band USB 3.0 Adapter, High Gain is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Archer AXE5400 WI-FI 6E TRI-Band USB 3.0 Adapter, High Gain: new condition; usb version 3.2 Gen 1 (3.1 Gen 1); interface WLAN; host interface USB; connectivity technology Wired & Wireless; security algorithms WEP, WPA, WPA2, WPA2-PSK, WPA3; wlan data transfer rates supported 11,54,300,400,574,1732,2402 Mbit/s. Manufacturer part number ARCHER TXE70UH. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link Archer AXE5400 WI-FI 6E TRI-Band USB 3.0 Adapter, High Gain interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
