Brand: TP-Link | Category: Network Adapters & NICs
SKU: ARCHER TXE72E | Part #: ARCHER TXE72E | MPN: ARCHER TXE72E
Contact for Pricing — Request a Quote
Better Performance WiFi 6E
WiFi 6E means WiFi 6 extended to the 6 GHz band, a newly-opened frequency band that adds more bandwidth, faster speeds, and lower
latency. This opens up resources for future innovations in AR/VR, 8K streaming, and more.
Blazing Fast for
Latency Free Streaming

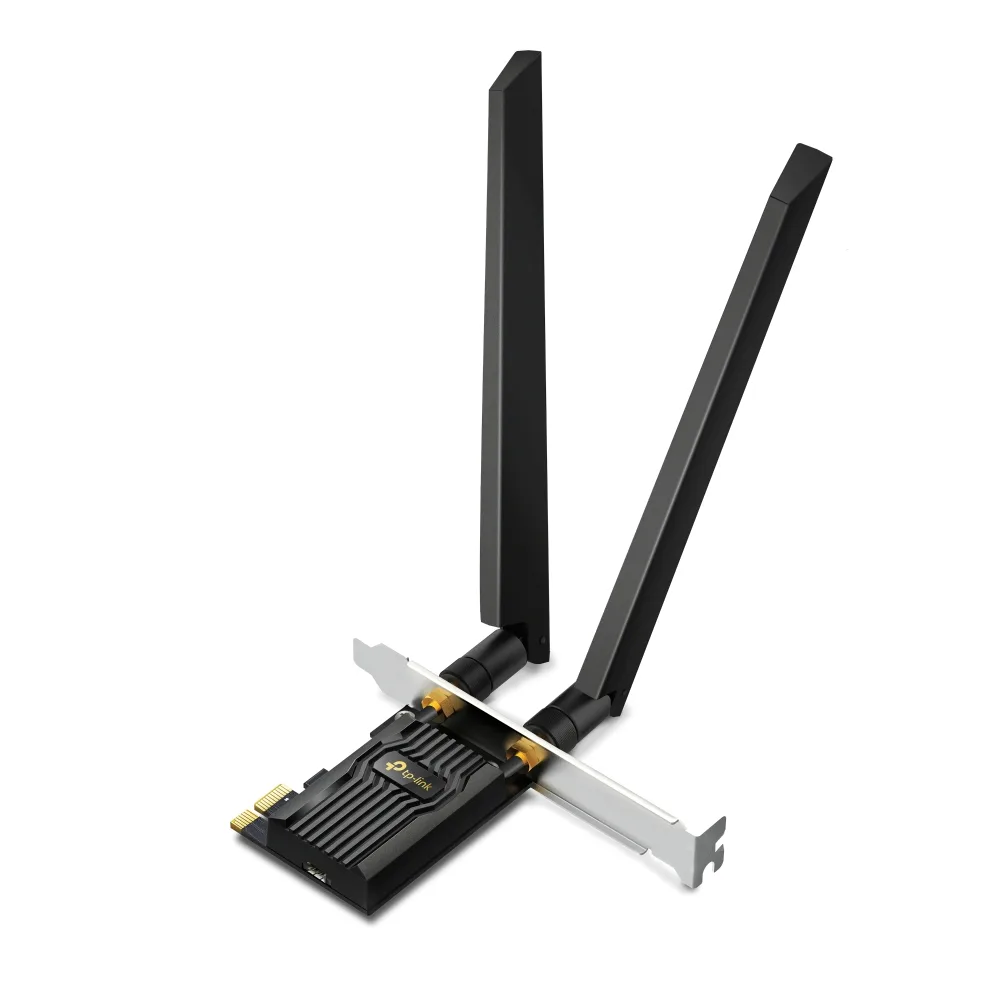

Archer TXE72E arms your PC with the newly opened 6 GHz band, unlocking your WiFi 6E router’s full potential. Enjoy unimpeded streaming on the 6 GHz band—exclusive to WiFi 6E devices. This prevents drops in speed and interference from legacy devices.
Superior WiFi Reception
Archer TXE72E brings your PC’s WiFi reception to the next level with the revolutionary combination of OFDMA and MU-MIMO. This ensures the efficiency of your PC’s WiFi connection by allowing more devices to communicate with your router simultaneously, rather than waiting in turn for data.
Immersive Game World with Lower Latency
Lower latency is key to seamless experiences in real-time applications like video conferencing and gaming. To achieve this, Archer TXE72E reduces lag by up to 75% with the Intel Wi-Fi 6E chipset.
High-Gain Antennas for Broader Coverage
Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away.
The Latest Bluetooth 5.2
Coordinate your game controllers, headphones, and keyboards with the latest Bluetooth standard. Archer TXE72E equips your PC with Bluetooth 5.2, which achieves faster speeds and broader coverage.
Your Security Guard
The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home network.
Easy Setup
Simple software installation via disk with the intuitive Utility
Low-Profile Bracket
In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases
Operating System
Supports Windows 10, 11 (64-bit)
| Brand | TP-Link |
| Category | Network Adapters & NICs |
| SKU | ARCHER TXE72E |
| Part Number | ARCHER TXE72E |
| Condition | New |
| Interface | WLAN / Bluetooth |
| Host interface | PCI Express |
| Connectivity technology | Wireless |
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| WLAN data transfer rates supported | 54,300,1732,2402 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Wi-Fi | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate | 2402 Mbit/s |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Operating modes | Infrastructure mode |
| Transmitting power (FCC) | 5 GHz: 20, 2.4 GHz: 20, 6 GHz: 12 |
| Transmitting power (CE) | 5 GHz: 15, 2.4 GHz: 16 |
| Antenna type | 2x2 |
| Antenna | Yes |
| Antenna design | External |
| Internal | Yes |
| Product colour | Black |
| Component for | PC |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 x64, Windows 11, Windows 11 Enterprise x64, Windows 11 x64 |
| Height | 120 mm |
| Depth | 21 mm |
| Width | 78.5 mm |
| Quick installation guide | Yes |
| Resource CD | Yes |
| Bluetooth header cable | Yes |
| Mounting brackets included | Yes |
The TP-Link Archer AXE5400 Bluetooth 5.3 PCIe WI-FI 6E TRI-Band Adapter is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Archer AXE5400 Bluetooth 5.3 PCIe WI-FI 6E TRI-Band Adapter: new condition; interface WLAN / Bluetooth; host interface PCI Express; connectivity technology Wireless; bluetooth version 5.3; bluetooth Yes; security algorithms WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3. Manufacturer part number ARCHER TXE72E. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link Archer AXE5400 Bluetooth 5.3 PCIe WI-FI 6E TRI-Band Adapter interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
