Brand: TP-Link | Category: Network Switches
SKU: TL-SG105 | Part #: TL-SG105 | MPN: TL-SG105
Contact for Pricing — Request a Quote
What This Product Does

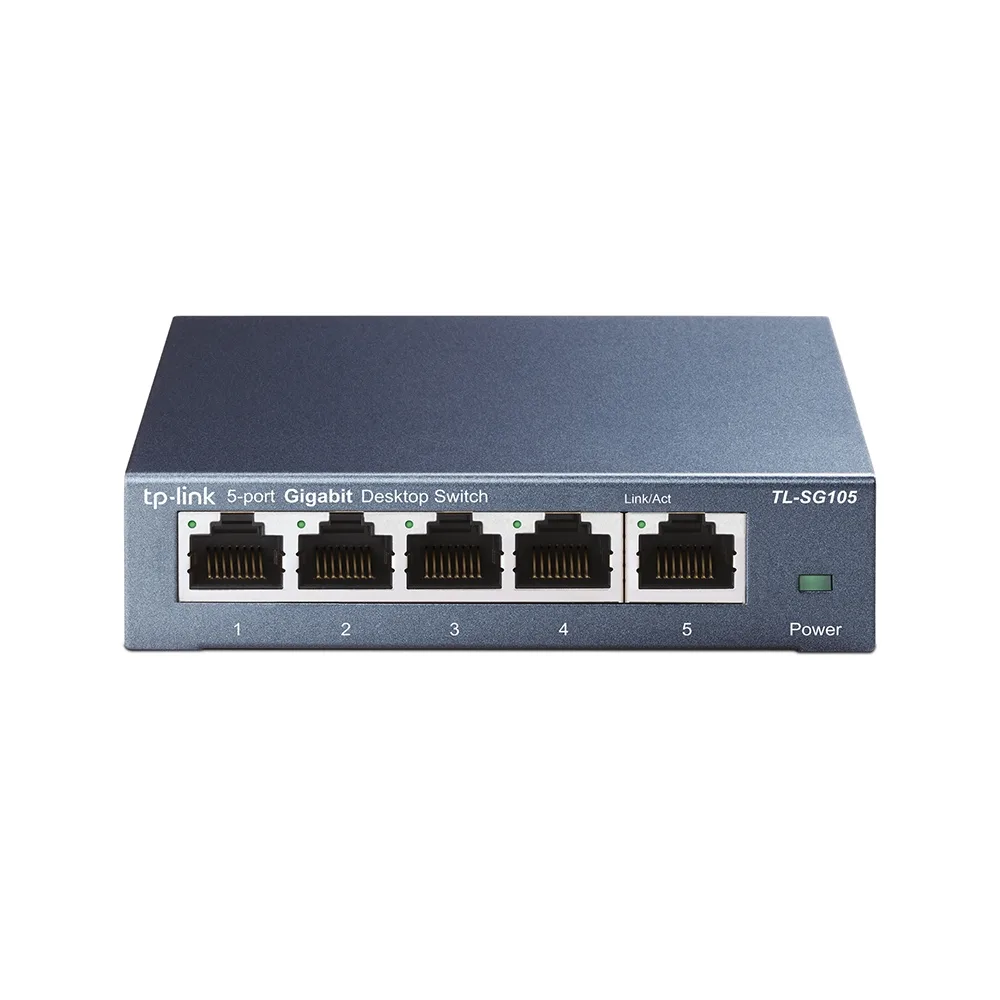

The TP-Link 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG105S adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105S can save power consumption, making it an eco-friendly solution for your home or office network.
Gigabit Switch
Featured with 5 10/100/1000Mbps ports, TL-SG105S greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105S 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Traffic Optimization
802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.
Easy to use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | TL-SG105 |
| Part Number | TL-SG105 |
| Condition | New |
| Power connector | DC-in jack |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Full duplex | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Packet buffer memory | 1 MB |
| Jumbo frames | 16000 |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| MAC address table | 2048 entries |
| Forwarding rate | 7.4 Mpps |
| Switching capacity | 10 Gbit/s |
| Power over Ethernet (PoE) | No |
| IGMP snooping | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Unmanaged |
| Power consumption (max) | 2.3 W |
| Input current | 0.6 A |
| AC input frequency | 50 Hz |
| AC input voltage | 220 V |
| Power supply included | Yes |
| Wall mountable | Yes |
| LED indicators | Yes |
| Housing material | Steel |
| Product colour | Black |
| Rack mounting | No |
| Heat dissipation | 7.83 BTU/h |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
