Brand: TP-Link | Category: Network Switches
SKU: TL-SG105MPE | Part #: TL-SG105MPE | MPN: TL-SG105MPE
Contact for Pricing — Request a Quote

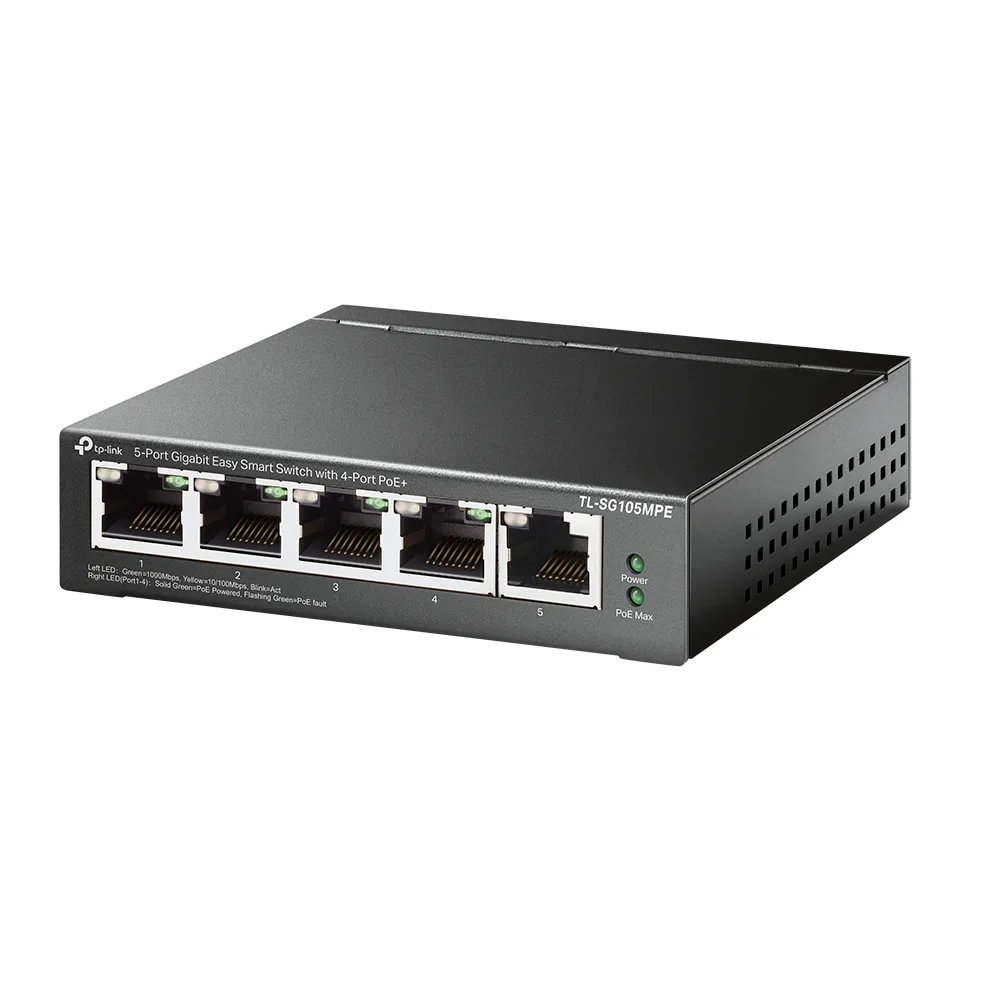

The TP-Link TL-SG105MPE is a 5-port Easy Smart Gigabit switch in a metal case. Four of its ports provide PoE+, with a total Power over Ethernet budget of 120 W. All five RJ-45 ports support 10/100/1000 Mbps Gigabit Ethernet. The switch delivers 10 Gbit/s switching capacity, a forwarding rate of 7.44 Mpps and a 2000-entry MAC address table. Maximum power consumption is 137.01 W.
This Layer 2 switch is configured through web-based management. Its features include IEEE 802.1Q VLAN tagging, IEEE 802.1p prioritisation, IGMP snooping, port mirroring, rate limiting, broadcast storm control, loop protection, static routing and jumbo frame support. Supported standards also include IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3af and 802.3at.
The TL-SG105MPE suits small networks that need to power and connect PoE devices such as IP cameras, wireless access points or VoIP phones. It provides basic traffic management without the complexity of a fully managed switch.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | TL-SG105MPE |
| Part Number | TL-SG105MPE |
| Condition | New |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Jumbo frames | 16 |
| Jumbo frames support | Yes |
| Static route | Yes |
| MAC address table | 2000 entries |
| Forwarding rate | 7.44 Mpps |
| Switching capacity | 10 Gbit/s |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) | Yes |
| Loop protection | Yes |
| IGMP snooping | Yes |
| Web-based management | Yes |
| Switch layer | L2 |
| Power consumption (max) | 137.01 W |
| DC input voltage | 53.5 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power source | DC/PoE |
| Product colour | Black |
| Rack mounting | No |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Height | 25 mm |
| Depth | 98 mm |
| Width | 99.8 mm |
| Cables included | LAN (RJ-45) |
The TP-Link 5-PORT Easy Smart Gigabit Switch, POE+(4), 120W, Metal Case is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link 5-PORT Easy Smart Gigabit Switch, POE+(4), 120W, Metal Case: new condition; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 5; broadcast storm control Yes; rate limiting Yes; port mirroring Yes; 10g support No. Manufacturer part number TL-SG105MPE. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link 5-PORT Easy Smart Gigabit Switch, POE+(4), 120W, Metal Case interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
