Brand: TP-Link | Category: Network Switches
SKU: TL-SG1024 | Part #: TL-SG1024 | MPN: TL-SG1024
Contact for Pricing — Request a Quote

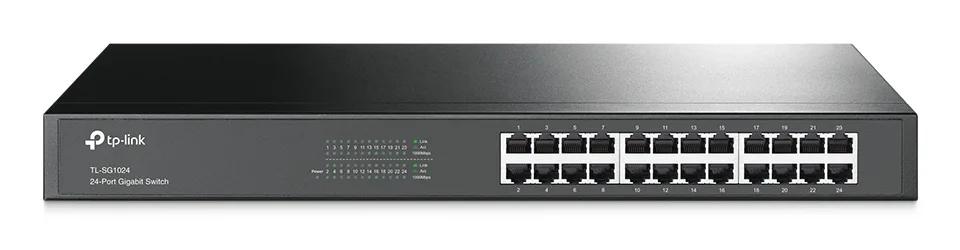

The TP-Link TL-SG1024 is a 24-port unmanaged Gigabit Ethernet switch housed in a 19" steel case for rack mounting. All 24 RJ-45 ports support 10/100/1000 Mbps operation over 10BASE-T, 100BASE-TX and 1000BASE-T copper cabling, with Auto MDI/MDI-X and full-duplex operation. The switch does not support 10G.
It uses store-and-forward switching with 35.7 Mpps throughput, 4.1 MB of packet buffer memory and an 8000-entry MAC address table. Further specifications include flow control, jumbo frame support, four queues and compliance with IEEE 802.3, 802.3u, 802.3ab, 802.1p and 802.1Q.
As an unmanaged rack-mount switch, the TL-SG1024 suits network cabinets and server or wiring rooms where multiple wired devices, such as workstations, servers and other networked equipment, need Gigabit connectivity.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | TL-SG1024 |
| Part Number | TL-SG1024 |
| Condition | New |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Number of VLANs | 32 |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Port mirroring | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Packet buffer memory | 4.1 MB |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| Number of queues | 4 |
| Store-and-forward | Yes |
| MAC address table | 8000 entries |
| Throughput | 35.7 Mpps |
| Switching capacity | 48 Gbit/s |
| IGMP snooping | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Unmanaged |
| Power consumption (typical) | 14.19 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Heat dissipation | 48.39 BTU/h |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Height | 44 mm |
| Depth | 180 mm |
| Width | 294 mm |
The TP-Link 24-PORT Unmanaged Gigabit Rack-Mount Switch, 19" Steel Case is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link 24-PORT Unmanaged Gigabit Rack-Mount Switch, 19" Steel Case: new condition; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 24; number of vlans 32; flow control support Yes; link aggregation Yes; broadcast storm control Yes. Manufacturer part number TL-SG1024. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link 24-PORT Unmanaged Gigabit Rack-Mount Switch, 19" Steel Case interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
