Brand: TP-Link | Category: Network Switches
SKU: TL-SG1024D | Part #: TL-SG1024D | MPN: TL-SG1024D
Contact for Pricing — Request a Quote

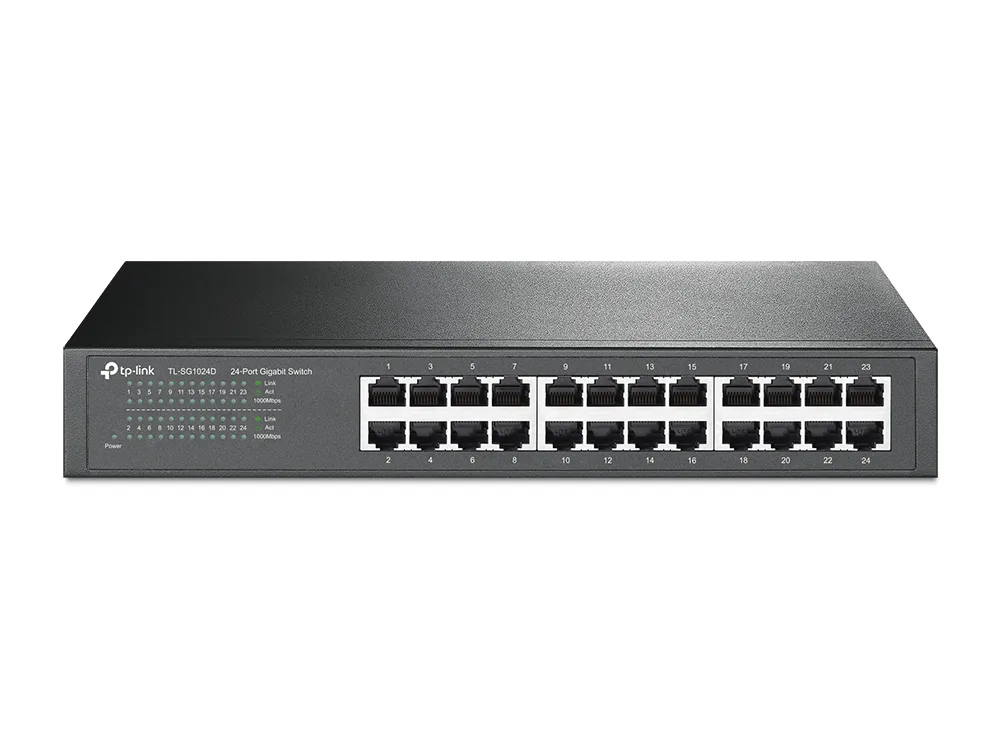

The TP-Link TL-SG1024D is a 24-port unmanaged Gigabit Ethernet switch in a metal case, designed for desktop or rackmount installation. It provides 24 RJ-45 ports supporting 10/100/1000 Mbps, with auto-negotiation, auto MDI/MDI-X and full duplex operation. Power is supplied through a DC-in jack, and the switch does not support Power over Ethernet.
The switch offers 48 Gbit/s switching capacity and a forwarding rate of 35.7 Mpps, using store-and-forward switching with an 8000-entry MAC address table. It supports flow control, jumbo frames up to 10000 bytes, and the IEEE 802.3ab, 802.3u and 802.3x standards. Supported cable types include Cat3, Cat4, Cat5 and Cat5e.
As an unmanaged switch, the TL-SG1024D suits wired networks that need straightforward Gigabit connectivity for multiple devices without configuration, such as office workgroups, small server rooms and equipment racks.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | TL-SG1024D |
| Part Number | TL-SG1024D |
| Condition | New |
| Power connector | DC-in jack |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Full duplex | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| 10G support | No |
| Networking standards | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| MAC address table | 8000 entries |
| Forwarding rate | 35.7 Mpps |
| Switching capacity | 48 Gbit/s |
| Power over Ethernet (PoE) | No |
| Supported network protocols | CSMA/CD, TCP/IP |
| Switch type | Unmanaged |
| Power consumption (max) | 13.08 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| LED indicators | Yes |
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Heat dissipation | 44.63 BTU/h |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Height | 44 mm |
| Depth | 180 mm |
| Width | 294 mm |
| Certification | FCC, CE, RoHS |
| User guide | Yes |
| Rack mount kit | Yes |
| Cables included | AC |
The TP-Link 24-PORT Unmanaged Gigabit DESKTOP/RACKMOUNT Switch, Metal Case is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link 24-PORT Unmanaged Gigabit DESKTOP/RACKMOUNT Switch, Metal Case: new condition; power connector DC-in jack; gigabit ethernet (copper) ports quantity 24; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 24; flow control support Yes; auto mdi/mdi-x Yes. Manufacturer part number TL-SG1024D. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link 24-PORT Unmanaged Gigabit DESKTOP/RACKMOUNT Switch, Metal Case interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
