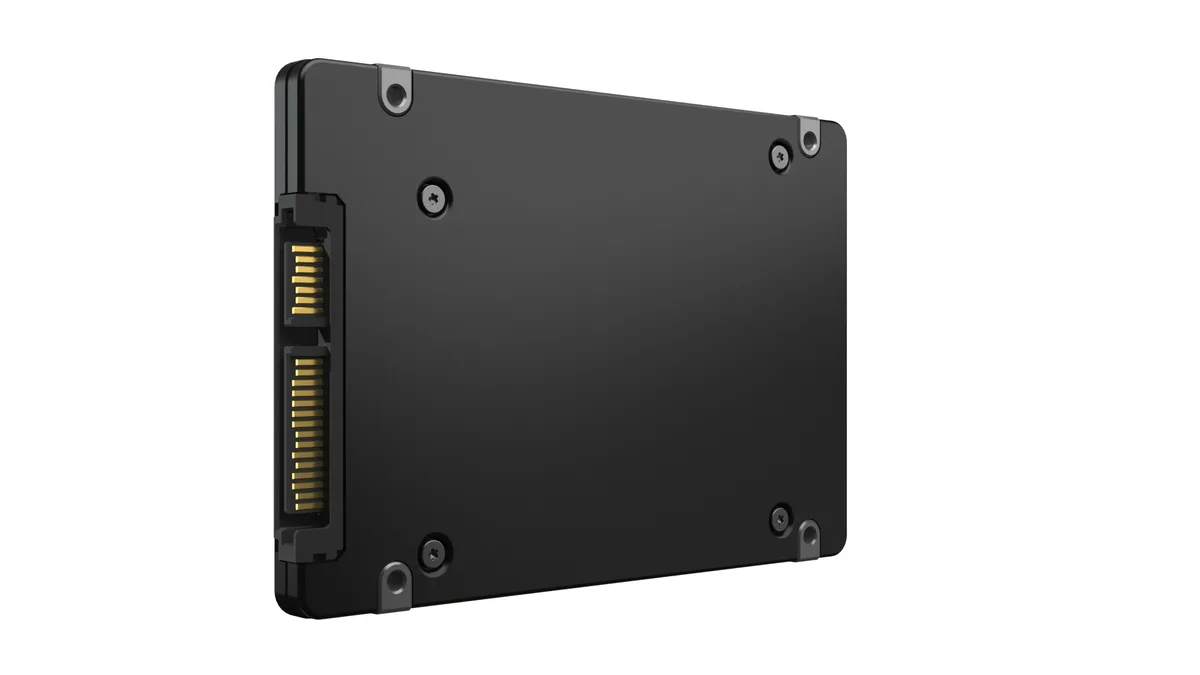

Samsung PM9A3 7.680TB 2.5 Inch U.2 PCIe 4.0 x4 SSD
Brand: Samsung | Category: Enterprise SSDs
SKU: MZQL27T6HBLA-00A07 | Part #: MZQL27T6HBLA-00A07 | MPN: MZQL27T6HBLA-00A07
Contact for Pricing — Request a Quote
About the Samsung PM9A3 7.680TB 2.5 Inch U.2 PCIe 4.0 x4 SSD
The Samsung PM9A3 delivers sequential read speeds of 6,700 MB/s, making it a high-performance choice for enterprise workloads demanding rapid data access. This 2.5-inch U.2 drive connects via PCIe 4.0 x4 with NVMe 1.4 support, offering the interface bandwidth required for next-generation data centre deployments.
With 7.680 TB of capacity built on Samsung 6th Generation TLC V-NAND, the PM9A3 (part number MZQL27T6HBLA-00A07) is engineered for storage architects and IT procurement teams planning scalable, high-density infrastructure. The drive delivers 1,000,000 random read IOPS at 4K queue depth 32, paired with an endurance rating of 1.0 DWPD, ensuring reliable performance across mixed workload scenarios. Samsung's capacitor-based power loss protection safeguards data integrity during unexpected power events, while AES 256-bit self-encrypting drive technology and TCG Opal 2.0 and TCG Enterprise compliance meet stringent security standards. End-to-end data protection mechanisms further reinforce reliability for mission-critical applications. Operating across the 0°C to 70°C temperature range with approximately 25W active read power consumption, this drive balances performance efficiency within typical enterprise thermal envelopes.
Key Specifications
- Manufacturer: Samsung
- Manufacturer Part Number: MZQL27T6HBLA-00A07
- Capacity: 7.680 TB
- Form Factor: 2.5-inch U.2 (7mm)
- Interface: PCIe 4.0 x4, NVMe 1.4
- Sequential Read Speed: 6,700 MB/s
- Sequential Write Speed: 4,000 MB/s
- Random Read (4K QD32): 1,000,000 IOPS
- NAND Flash Type: Samsung 6th Generation TLC V-NAND
- Security: AES 256-bit, TCG Opal 2.0, TCG Enterprise
To request a formal quotation or arrange a technical discussion with our team, please contact Omnixon Global today.
Technical Specifications
| Brand | Samsung |
| Category | Enterprise SSDs |
| SKU | MZQL27T6HBLA-00A07 |
| Part Number | MZQL27T6HBLA-00A07 |
| Condition | New |
| Capacity | 7.680TB |
| Form Factor | 2.5 Inch 7mm U.2 |
| Interface | PCIe Gen4 |
| Speed | 6700 Mb/s |
| Manufacturer Part Number | MZQL27T6HBLA-00A07 |
| Series | PM9A3 |
| Form Factor | 2.5-inch U.2 (7mm) |
| Interface | PCIe 4.0 x4, NVMe 1.4 |
| Capacity | 7.680 TB |
| Sequential Read Speed | 6,700 MB/s |
| Sequential Write Speed | 4,000 MB/s |
| Random Read (4K QD32) | 1,000,000 IOPS |
| Random Write (4K QD32) | 200,000 IOPS |
| NAND Flash Type | Samsung 6th Generation TLC V-NAND |
| Endurance (DWPD) | 1.0 DWPD |
| Power Loss Protection | Yes (capacitor-based) |
| Encryption | AES 256-bit (Self-Encrypting Drive) |
| Security Standards | TCG Opal 2.0, TCG Enterprise |
| End-to-End Data Protection | Yes |
| Operating Temperature | 0°C to 70°C |
| Connector | U.2 (SFF-8639) |
| Power Consumption (Active Read) | Approximately 25W |
| Dimensions | 100.1 mm x 69.9 mm x 7.0 mm |
Frequently Asked Questions about Samsung PM9A3 7.680TB 2.5 Inch U.2 PCIe 4.0 x4 SSD
What does the Samsung PM9A3 7.680TB 2.5 Inch U.2 PCIe 4.0 x4 SSD do?
At 7.680TB, the Samsung PM9A3 7.680TB 2.5 Inch U.2 PCIe 4.0 x4 SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The PCIe 4.0 x4 interface is supported by major server platforms.
What are the headline specs of the Samsung PM9A3 7.680TB 2.5 Inch U.2 PCIe 4.0 x4 SSD?
Key specifications for the Samsung PM9A3 7.680TB 2.5 Inch U.2 PCIe 4.0 x4 SSD: capacity 7.680TB; form factor 2.5 Inch 7mm U.2; interface PCIe 4.0 x4; new condition; model PM9A3; capacity 7.680TB; interface PCIe 4.0 x4; form factor 2.5 Inch 7mm U.2; sequential read speed 6700 Mb/s; sequential write speed 4000 Mb/s. Manufacturer part number MZQL27T6HBLA-00A07. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Samsung PM9A3 7.680TB 2.5 Inch U.2 PCIe 4.0 x4 SSD compatible with my infrastructure?
The Samsung PM9A3 7.680TB 2.5 Inch U.2 PCIe 4.0 x4 SSD uses a PCIe 4.0 x4 interface in a 2.5 Inch 7mm U.2 form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
