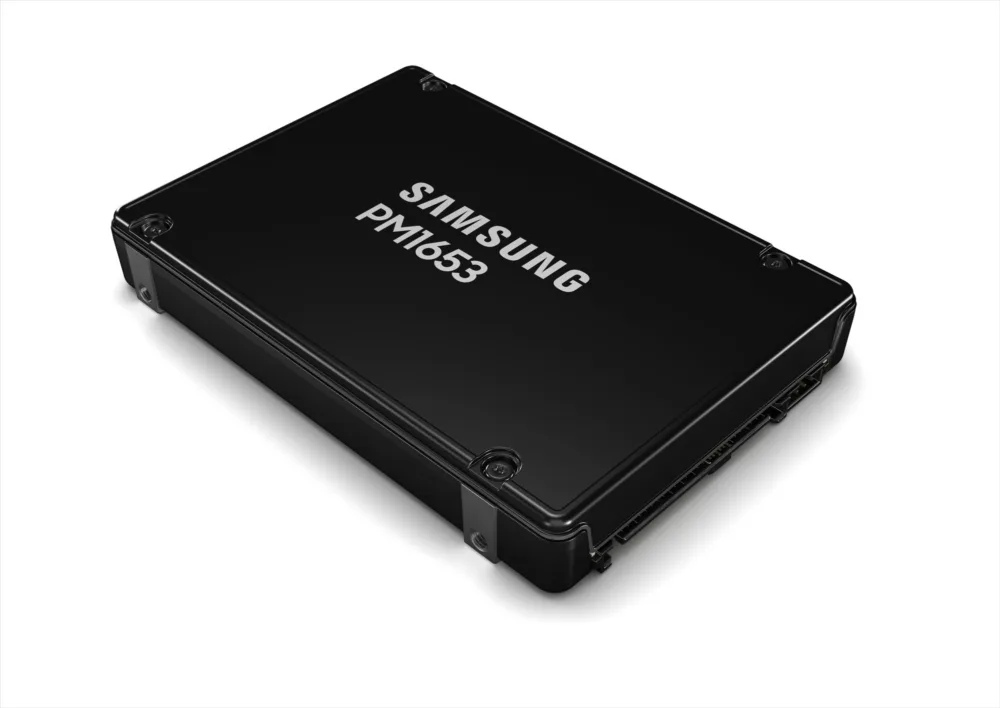

Samsung PM1653 960GB 2.5 Inch SAS 24Gbps SSD
Brand: Samsung | Category: Enterprise SSDs
SKU: MZILG960HCHQ-00A07 | Part #: MZILG960HCHQ-00A07 | MPN: MZILG960HCHQ-00A07
Contact for Pricing — Request a Quote
About the Samsung PM1653 960GB 2.5 Inch SAS 24Gbps SSD
The Samsung PM1653 960GB SAS SSD delivers sequential read speeds of 4,200 MB/s, making it an exceptional choice for high-throughput enterprise storage workloads. This 2.5-inch 15mm form factor drive connects via SAS 24Gbps (SAS-4) dual-port interface, enabling direct integration into standard enterprise storage arrays and server configurations.
Built for demanding data center environments, the Samsung PM1653 (part number MZILG960HCHQ-00A07) combines robust performance with enterprise-grade reliability. With 960 GB capacity, sequential write speeds of 1,200 MB/s, and an endurance rating of 1.0 DWPD (1,752 TBW), this drive supports sustained multi-user I/O patterns typical of virtualization, database, and transactional workloads. The PM1653 operates across 0°C to 70°C, maintains 2,000,000 hours MTBF, and includes AES 256-bit encryption with TCG Enterprise SSC certification and Instant Secure Erase for compliance-critical deployments. Active read power consumption is 6.0 W, active write is 7.0 W, and idle mode draws just 3.0 W—optimizing total cost of ownership in large-scale deployments. Samsung engineered this drive to withstand operating shock loads of 1,500 G per 0.5 ms, reinforcing its suitability for high-availability environments where downtime is costly.
Storage architects, infrastructure teams, and IT procurement departments evaluating mid-capacity enterprise SSDs for SAS-based storage systems will find the PM1653's balance of speed, endurance, and security compelling. Whether you're modernizing legacy storage arrays, expanding flash capacity, or building hybrid storage tiers, Samsung's proven enterprise heritage makes this a trusted choice. Contact Omnixon Global to request a quote for the Samsung PM1653 960GB 2.5 Inch SAS 24Gbps SSD (MZILG960HCHQ-00A07) and discuss volume pricing, lead times, and integration support for your organization.
Technical Specifications
| Brand | Samsung |
| Category | Enterprise SSDs |
| SKU | MZILG960HCHQ-00A07 |
| Part Number | MZILG960HCHQ-00A07 |
| Condition | New |
| Capacity | 960GB |
| Form Factor | 2.5" |
| Interface | SAS 24Gb/s |
| Speed | 4200 Mb/s |
| Manufacturer Part Number | MZILG960HCHQ-00A07 |
| Series | PM1653 |
| Capacity | 960 GB |
| Form Factor | 2.5-inch 15mm (SFF) |
| Interface | SAS 24Gbps (SAS-4) |
| Sequential Read Speed | 4,200 MB/s |
| Sequential Write Speed | 1,200 MB/s |
| Endurance (DWPD) | 1.0 DWPD |
| Endurance (TBW) | 1,752 TBW |
| Ports | Dual Port |
| Power (Active Read) | 6.0 W |
| Power (Active Write) | 7.0 W |
| Power (Idle) | 3.0 W |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Shock (Operating) | 1,500 G / 0.5 ms |
| MTBF | 2,000,000 hours |
| Encryption | AES 256-bit (SED), TCG Enterprise SSC |
| Sanitize | Instant Secure Erase (ISE) |
Frequently Asked Questions about Samsung PM1653 960GB 2.5 Inch SAS 24Gbps SSD
What does the Samsung PM1653 960GB 2.5 Inch SAS 24Gbps SSD do?
At 960GB, the Samsung PM1653 960GB 2.5 Inch SAS 24Gbps SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The SAS 24Gbps interface is supported by major server platforms.
What are the headline specs of the Samsung PM1653 960GB 2.5 Inch SAS 24Gbps SSD?
Key specifications for the Samsung PM1653 960GB 2.5 Inch SAS 24Gbps SSD: capacity 960GB; form factor 2.5 Inch 15mm; interface SAS 24Gbps; new condition; model PM1653; capacity 960GB; interface SAS 24Gbps; form factor 2.5 Inch 15mm; sequential read speed 4200 Mb/s; sequential write speed 1200 Mb/s. Manufacturer part number MZILG960HCHQ-00A07. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Samsung PM1653 960GB 2.5 Inch SAS 24Gbps SSD compatible with my infrastructure?
The Samsung PM1653 960GB 2.5 Inch SAS 24Gbps SSD uses a SAS 24Gbps interface in a 2.5 Inch 15mm form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
