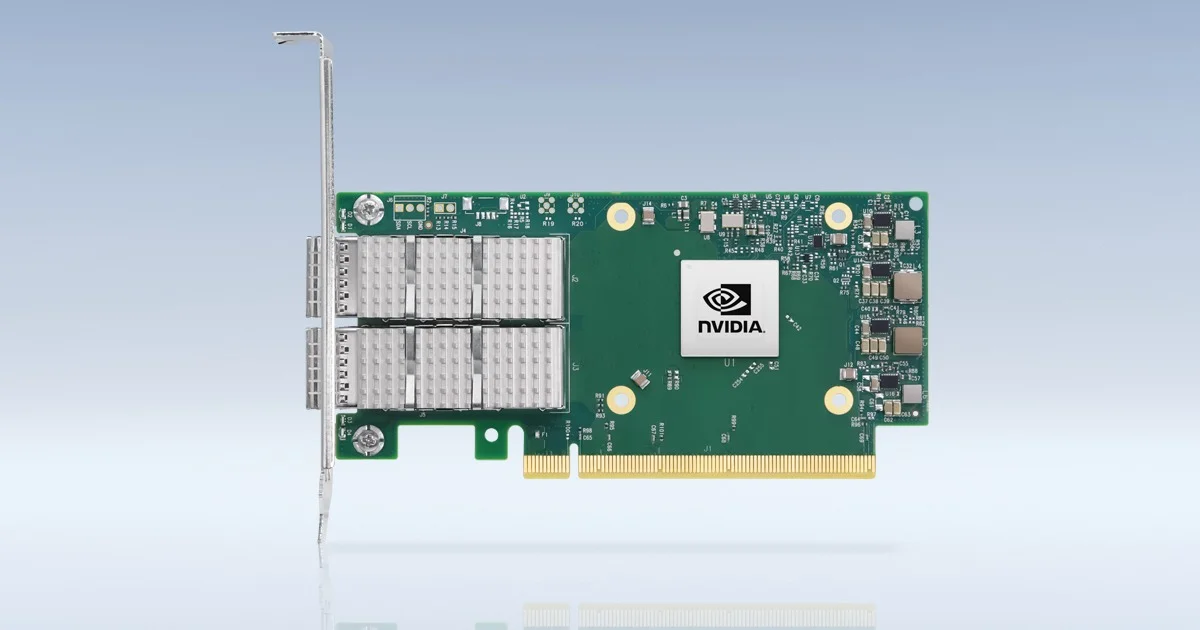

NVIDIA MCX631102AN-ACAT ConnectX-6 Dx EN Adapter
Brand: NVIDIA | Category: Network Adapters & NICs
SKU: NVIDIAMCX631102ANACATCONNECTX6DXAD | Part #: MCX631102AN-ACAT | MPN: MCX631102AN-ACAT
Contact for Pricing — Request a Quote
About the NVIDIA MCX631102AN-ACAT ConnectX-6 Dx EN Adapter
This low-profile PCIe adapter form factor fits standard enterprise chassis without requiring full-height slot space, making it ideal for dense server deployments where physical constraints matter as much as performance. The NVIDIA MCX631102AN-ACAT ConnectX-6 Dx EN Adapter delivers 100GbE connectivity through a single QSFP56 port, supporting a full range of Ethernet standards including 50GbE, 40GbE, 25GbE, and 10GbE for flexible network migration paths. Built on PCIe 4.0 x16 host interface technology, this adapter integrates advanced offload engines for stateless processing, VXLAN/GENEVE tunnel acceleration, and hardware OVS acceleration—capabilities that reduce CPU overhead and enable line-rate packet processing in demanding production environments.
Network architects and IT procurement teams standardizing on NVIDIA infrastructure will appreciate the ConnectX-6 Dx's comprehensive feature set: RoCEv2 protocol support for low-latency RDMA workloads, inline cryptography for IPsec and TLS 1.2/1.3 security, and SR-IOV virtualization delivering up to 1,000 Virtual Functions for multi-tenant deployments. The adapter consumes up to 25W and operates reliably across 0°C to 55°C environments, while broad OS support—Linux, Windows Server, VMware ESXi, and FreeBSD—ensures integration into heterogeneous data center stacks. Part number MCX631102AN-ACAT is RoHS compliant and managed via PCIe Management Interface and NCSI, providing full observability within existing monitoring frameworks. For detailed compatibility verification, pricing, or volume licensing terms, please contact Omnixon Global to submit your RFQ.
Key Specifications
- Manufacturer: NVIDIA
- Manufacturer Part Number: MCX631102AN-ACAT
- Host Interface: PCIe 4.0 x16
- Port Speed: 100GbE
- Port Connector: QSFP56
- Power Consumption: Up to 25W
Technical Specifications
| Brand | NVIDIA |
| Category | Network Adapters & NICs |
| SKU | NVIDIAMCX631102ANACATCONNECTX6DXAD |
| Part Number | MCX631102AN-ACAT |
| Condition | New |
| Form Factor | Add-in Card (AIC) |
| Interface | PCIe Gen4 |
| Manufacturer Part Number | MCX631102AN-ACAT |
| Product Line | ConnectX-6 Dx |
| Form Factor | PCIe Adapter, Low Profile |
| Host Interface | PCIe 4.0 x16 |
| Number of Ports | 1 |
| Port Speed | 100GbE |
| Port Connector | QSFP56 |
| Ethernet Standards | 100GbE, 50GbE, 40GbE, 25GbE, 10GbE |
| RDMA Protocol | RoCEv2 |
| Offload Engines | Stateless offloads (LSO, LRO, checksum), VXLAN/GENEVE tunnel offload, hardware OVS acceleration |
| Inline Crypto | IPsec, TLS 1.2/1.3 |
| Virtualization | SR-IOV (up to 1,000 Virtual Functions) |
| Operating Temperature | 0°C to 55°C |
| Power Consumption | Up to 25W |
| Dimensions (Low Profile Bracket) | 167.65 mm x 68.90 mm |
| Operating System Support | Linux, Windows Server, VMware ESXi, FreeBSD |
| Management Interface | PCIe Management Interface, NCSI |
| RoHS Compliance | RoHS compliant |
Frequently Asked Questions about NVIDIA MCX631102AN-ACAT ConnectX-6 Dx EN Adapter
What does the NVIDIA MCX631102AN-ACAT ConnectX-6 Dx EN Adapter do?
The NVIDIA MCX631102AN-ACAT ConnectX-6 Dx EN Adapter is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Juniper/Arista environments.
What are the headline specs of the NVIDIA MCX631102AN-ACAT ConnectX-6 Dx EN Adapter?
Key specifications for the NVIDIA MCX631102AN-ACAT ConnectX-6 Dx EN Adapter: interface PCIe 4.0; new condition; product name NVIDIA MCX631102AN-ACAT ConnectX-6 Dx EN Adapter; brand NVIDIA; category Network Equipment; interface PCIe 4.0; network interface Ethernet 100GbE; form factor Add-in Card (AIC). Manufacturer part number MCX631102AN-ACAT. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the NVIDIA MCX631102AN-ACAT ConnectX-6 Dx EN Adapter compatible with my infrastructure?
The NVIDIA MCX631102AN-ACAT ConnectX-6 Dx EN Adapter interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
