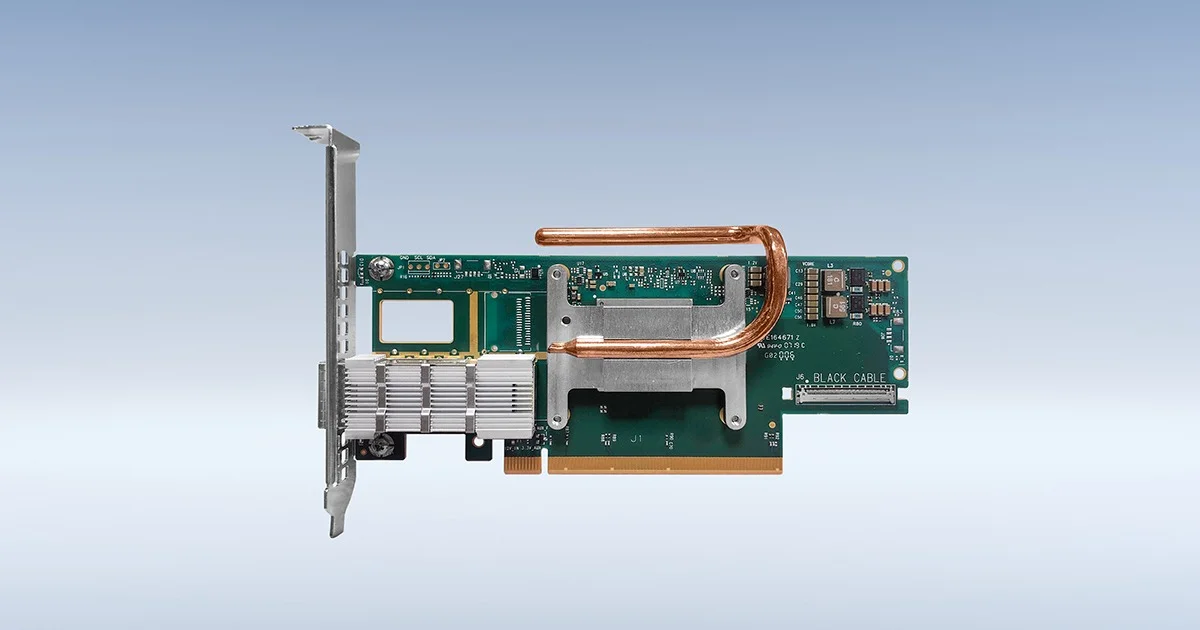

NVIDIA MCX653106A-ECAT ConnectX-6 EN Adapter
Brand: NVIDIA | Category: Network Adapters & NICs
SKU: NVIDIAMCX653106AECATCONNECTX6ENADA | Part #: MCX653106A-ECAT | MPN: MCX653106A-ECAT
Contact for Pricing — Request a Quote
About the NVIDIA MCX653106A-ECAT ConnectX-6 EN Adapter
For low-latency workloads, NIC offload capabilities free critical CPU cycles—and the NVIDIA MCX653106A-ECAT ConnectX-6 EN Adapter delivers exactly that. This single-port 100GbE network adapter combines extreme throughput with hardware-accelerated offloads including TSO, LRO, and IP/TCP/UDP checksum offloading, enabling data center infrastructure teams to reduce latency-sensitive bottlenecks. Built on PCIe 4.0 x16 connectivity, the MCX653106A-ECAT supports up to 127 virtual functions per port via SR-IOV, making it ideal for virtualized and containerized environments requiring fine-grained network isolation.
The ConnectX-6 EN series supports RoCEv2 (RDMA over Converged Ethernet v2) and GPUDirect RDMA, allowing direct GPU-to-GPU data transfer without CPU intervention—essential for AI and machine learning clusters. Advanced flow control via IEEE 802.1Qbb PFC and IEEE 802.1Qaz ETS ensures deterministic performance, while tunneling offload for VXLAN, NVGRE, and MPLS keeps overlay networks performant. With RoHS compliance and an operating temperature range of 0°C to 55°C, deployment flexibility spans multiple data center environments. NVIDIA MLNX_OFED and OpenFabrics Alliance driver support covers Linux (RHEL, Ubuntu, SLES) and Windows Server, with typical power consumption around 18W. Network architects and infrastructure teams seeking enterprise-grade 100GbE performance should evaluate this solution.
Deployment Scenarios
- High-performance computing clusters requiring sub-microsecond latency and GPU acceleration
- AI training and inference infrastructure leveraging GPUDirect RDMA for distributed model parallelism
- Multi-tenant cloud platforms benefiting from SR-IOV virtual function segmentation
- Storage array backends and NVMe-over-Fabrics (NVMe-oF) networks using advanced RDMA protocols
- Virtualized data center networks with overlay technologies (VXLAN/NVGRE) requiring stateless offload
For detailed specifications, compatibility validation, and deployment guidance on the MCX653106A-ECAT, contact Omnixon Global via RFQ.
Technical Specifications
| Brand | NVIDIA |
| Category | Network Adapters & NICs |
| SKU | NVIDIAMCX653106AECATCONNECTX6ENADA |
| Part Number | MCX653106A-ECAT |
| Condition | New |
| Capacity | 200GB |
| Form Factor | HHHL |
| Interface | PCIe Gen4 |
| Manufacturer Part Number | MCX653106A-ECAT |
| Product Series | ConnectX-6 EN |
| Network Interface Speed | 100GbE |
| Number of Ports | 1 x 100GbE |
| Port Connector Type | QSFP56 |
| Host Interface | PCIe 4.0 x16 |
| RDMA Support | RoCEv2 (RDMA over Converged Ethernet v2) |
| GPUDirect RDMA | Supported |
| SR-IOV Virtual Functions | Up to 127 VFs per port |
| Tunneling Offload | VXLAN, NVGRE, MPLS |
| Stateless Offloads | TSO, LRO, IP/TCP/UDP checksum offload |
| Flow Control | IEEE 802.1Qbb Priority Flow Control (PFC); IEEE 802.1Qaz ETS |
| Form Factor | Standard height, half-length PCIe card |
| Operating Temperature | 0°C to 55°C |
| Software Stack | NVIDIA MLNX_OFED; OpenFabrics Alliance (OFED) drivers |
| OS Support | Linux (RHEL, Ubuntu, SLES), Windows Server |
| Power Consumption (typical) | Approximately 18W |
| RoHS Compliance | RoHS compliant |
Frequently Asked Questions about NVIDIA MCX653106A-ECAT ConnectX-6 EN Adapter
What does the NVIDIA MCX653106A-ECAT ConnectX-6 EN Adapter do?
The NVIDIA MCX653106A-ECAT ConnectX-6 EN Adapter is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Juniper/Arista environments.
What are the headline specs of the NVIDIA MCX653106A-ECAT ConnectX-6 EN Adapter?
Key specifications for the NVIDIA MCX653106A-ECAT ConnectX-6 EN Adapter: interface PCIe 4.0; new condition; adapter family ConnectX-6 VPI Adapter; network ports 2x QSFP56; supported speed 100GbE / HDR100 / EDR; host interface PCIe 4.0 x16; form factor HHHL; use case High-performance server networking, virtualization, storage, AI, and cloud. Manufacturer part number MCX653106A-ECAT. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the NVIDIA MCX653106A-ECAT ConnectX-6 EN Adapter compatible with my infrastructure?
The NVIDIA MCX653106A-ECAT ConnectX-6 EN Adapter interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
