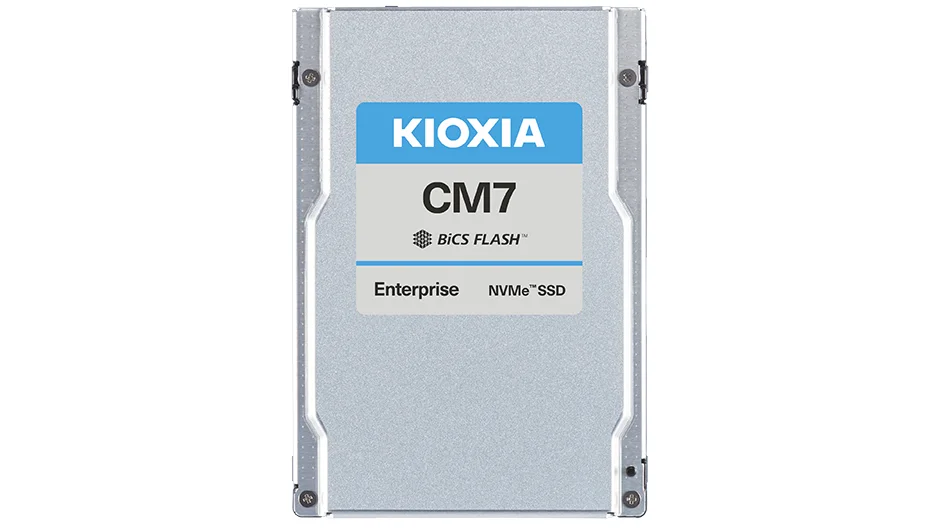

Kioxia CM7-V 6.400TB 2.5 Inch Dual x2 SSD
Brand: Kioxia | Category: Enterprise SSDs
SKU: KCMYXVUG6T40 | Part #: KCMYXVUG6T40 | MPN: KCMYXVUG6T40
Contact for Pricing — Request a Quote
About the Kioxia CM7-V 6.400TB 2.5 Inch Dual x2 SSD
At approximately 25 W during active read operations, the Kioxia CM7-V 6.400TB SSD delivers exceptional power efficiency for dense all-flash array deployments where thermal headroom and total cost of ownership directly impact operational margins. This 2.5-inch U.3 enterprise drive combines PCIe Gen 5 x4 NVMe 2.0 performance with Kioxia's BiCS FLASH 3D TLC technology to achieve sequential read speeds of up to 14,000 MB/s and sequential write performance reaching 7,000 MB/s. The dual-port x2 configuration (part number KCMYXVUG6T40) enables multi-path redundancy in high-availability SAN fabrics, while random I/O metrics of 2,500,000 read IOPS and 300,000 write IOPS address transactional workloads with deterministic latency requirements.
Storage architects and IT procurement teams standardizing on read-intensive workloads will recognize the 1 DWPD (drive writes per day) endurance rating as purpose-built for analytics, data warehousing, and archival acceleration use cases where write cycles are predictable and modest. The drive's AES 256-bit self-encrypting drive (SED) implementation with TCG Enterprise SSC security profile meets compliance mandates for regulated environments, while T10 DIF/DIX end-to-end data protection guards against silent data corruption across the I/O stack. Operating across the 0°C to 70°C temperature envelope and backed by SFF-TA-1001 U.3 connector standardization, this Kioxia product integrates seamlessly into tri-mode backplanes and NVMe 2.0–compliant infrastructure already deployed in tier-one data centers across the EMEA region.
For organization requiring 6.400TB capacity with enterprise-grade reliability, security, and thermal efficiency, contact Omnixon Global to request a formal quotation on the Kioxia CM7-V CM7-V configuration and volume pricing.
Technical Specifications
| Brand | Kioxia |
| Category | Enterprise SSDs |
| SKU | KCMYXVUG6T40 |
| Part Number | KCMYXVUG6T40 |
| Condition | New |
| Capacity | 6.400TB |
| Form Factor | 2.5" |
| Interface | Dual x2 |
| Speed | Read:14000 Mb/s,Write:6750 Mb/s |
| Manufacturer Part Number | KCMYXVUG6T40 |
| Product Series | CM7-V |
| Form Factor | 2.5-inch U.3 |
| Interface | PCIe Gen 5 x4 (NVMe 2.0) |
| Port Configuration | Dual port x2 |
| Raw Capacity | 6.400 TB |
| NAND Flash Type | BiCS FLASH 3D TLC |
| Sequential Read (Max) | 14,000 MB/s |
| Sequential Write (Max) | 7,000 MB/s |
| Random Read IOPS (Max) | 2,500,000 IOPS |
| Random Write IOPS (Max) | 300,000 IOPS |
| Power State (Active Read) | Approximately 25 W |
| End-to-End Data Protection | Yes (T10 DIF / DIX) |
| Encryption | AES 256-bit self-encrypting drive (SED), TCG Enterprise SSC |
| Workload Type | Read Intensive |
| Drive Writes Per Day (DWPD) | 1 |
| Operating Temperature | 0°C to 70°C |
| Connector | SFF-TA-1001 U.3 |
| OS/Compatibility | NVMe 2.0 compliant; compatible with tri-mode backplanes |
Frequently Asked Questions about Kioxia CM7-V 6.400TB 2.5 Inch Dual x2 SSD
What does the Kioxia CM7-V 6.400TB 2.5 Inch Dual x2 SSD do?
At 6.400TB, the Kioxia CM7-V 6.400TB 2.5 Inch Dual x2 SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The Dual x2 interface is supported by major server platforms.
What are the headline specs of the Kioxia CM7-V 6.400TB 2.5 Inch Dual x2 SSD?
Key specifications for the Kioxia CM7-V 6.400TB 2.5 Inch Dual x2 SSD: capacity 6.400TB; form factor 2.5 Inch; interface Dual x2; Manufacturer support support; new condition; model CM7-V; capacity 6.400TB; interface Dual x2; form factor 2.5 Inch; sequential read speed 14000 Mb/s; sequential write speed 6750 Mb/s. Manufacturer part number KCMYXVUG6T40. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Kioxia CM7-V 6.400TB 2.5 Inch Dual x2 SSD compatible with my infrastructure?
The Kioxia CM7-V 6.400TB 2.5 Inch Dual x2 SSD uses a Dual x2 interface in a 2.5 Inch form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
