Brand: Kioxia | Category: Enterprise SSDs
SKU: KCM7XRJE15T3 | Part #: KCM7XRJE15T3 | MPN: KCM7XRJE15T3
Contact for Pricing — Request a Quote

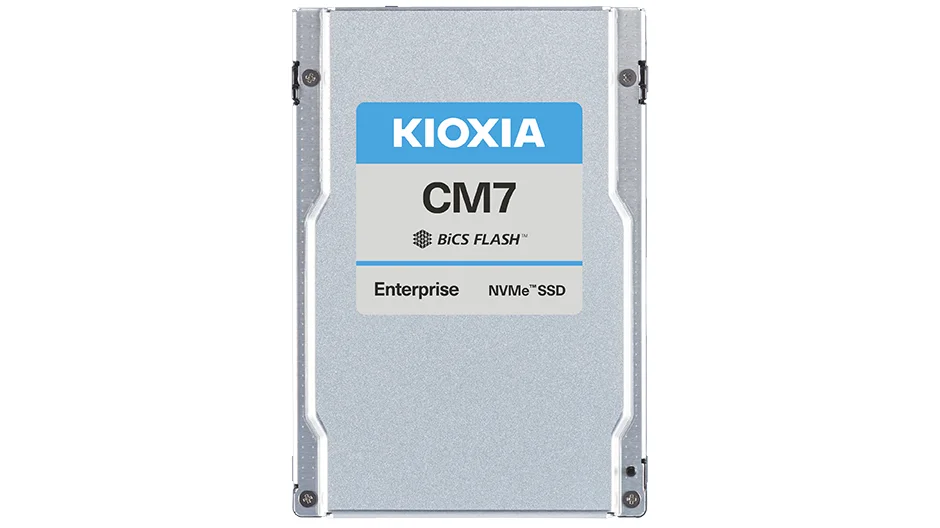

Part number KCM7XRJE15T3 — the Kioxia CM7-R 15.360TB E3.S Dual x2 SSD — is purpose-built for read-intensive enterprise workloads requiring high-density, dual-port NVMe storage. This drive delivers sequential read speeds up to 7,000 MB/s and sequential write speeds up to 4,000 MB/s, powered by Kioxia BiCS FLASH 3D TLC NAND technology in a compact E3.S 1T form factor measuring just 9.5mm in height. The dual-port PCIe 4.0 x4 architecture (configured as 2 x PCIe 4.0 x2) with NVMe 1.4 protocol support enables redundant connectivity and improved availability in mission-critical systems. Random performance reaches 1,500,000 IOPS for 4K reads and 200,000 IOPS for 4K writes, backed by T10 DIF/DIX-compatible end-to-end data protection and integrated power loss protection to safeguard data integrity.
Enterprise storage architects and IT procurement teams deploying hyperscale data centers, high-frequency trading platforms, and read-heavy analytical workloads turn to Kioxia for proven reliability and performance density. The CM7-R series operates across 0°C to 70°C, maintains an MTBF of 2,000,000 hours, and achieves an ultra-low UBER rating of 1 sector per 10^17 bits read—metrics that matter when infrastructure uptime directly impacts revenue. NVMe Power Management support further reduces operational costs in always-on environments. With 15.360TB of usable capacity in a dual-port design, the KCM7XRJE15T3 maximizes storage density per server socket while minimizing PCIe lane consumption compared to single-port alternatives.
Omnixon Global supplies the Kioxia CM7-R 15.360TB E3.S Dual x2 SSD and delivers to enterprise customers across the UAE and the wider Middle East region.
| Brand | Kioxia |
| Category | Enterprise SSDs |
| SKU | KCM7XRJE15T3 |
| Part Number | KCM7XRJE15T3 |
| Condition | New |
| Capacity | 15.360TB |
| Form Factor | E3.S |
| Interface | Dual x2 |
| Speed | Read:13000 Mb/s,Write:5300 Mb/s |
| Manufacturer Part Number | KCM7XRJE15T3 |
| Series | CM7-R |
| Form Factor | E3.S 1T (9.5mm) |
| Interface | PCIe 4.0 x4 (Dual Port x2 + x2) |
| Protocol | NVMe 1.4 |
| Capacity | 15.360 TB |
| NAND Flash Type | Kioxia BiCS FLASH 3D TLC NAND |
| Port Configuration | Dual Port (2 x PCIe 4.0 x2) |
| Sequential Read | Up to 7,000 MB/s |
| Sequential Write | Up to 4,000 MB/s |
| Random Read (4K) | Up to 1,500,000 IOPS |
| Random Write (4K) | Up to 200,000 IOPS |
| Power State | Supports NVMe Power Management |
| End-to-End Data Protection | Yes (T10 DIF/DIX compatible) |
| Power Loss Protection | Yes |
| UBER | 1 sector per 10^17 bits read |
| MTBF | 2,000,000 hours |
| Operating Temperature | 0°C to 70°C |
| Workload Profile | Read Intensive |
At 15.360TB, the Kioxia CM7-R 15.360TB E3.S Dual x2 SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The Dual x2 interface is supported by major server platforms.
Key specifications for the Kioxia CM7-R 15.360TB E3.S Dual x2 SSD: capacity 15.360TB; form factor E3.S; interface Dual x2; new condition; model CM7-R; capacity 15.360TB; interface Dual x2; form factor E3.S; sequential read speed 13000 Mb/s; sequential write speed 5300 Mb/s. Manufacturer part number KCM7XRJE15T3. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The Kioxia CM7-R 15.360TB E3.S Dual x2 SSD uses a Dual x2 interface in a E3.S form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
