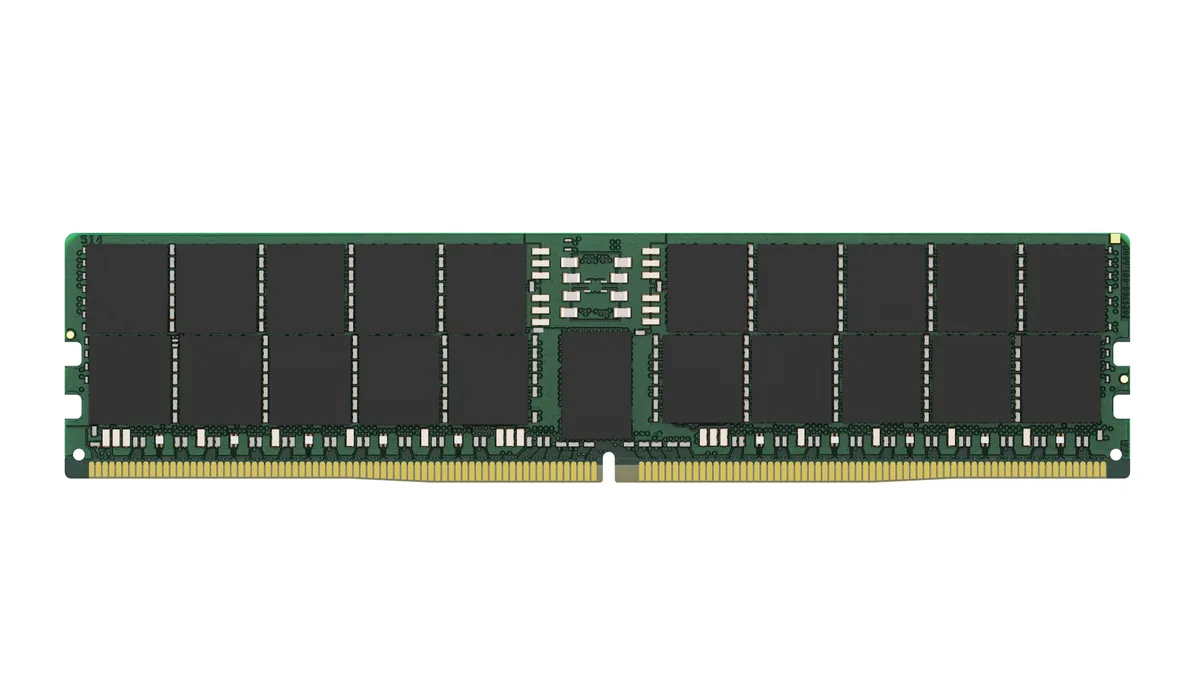

Kingston System-Specific Memory (Cisco) 96GB DDR5 5600MT/s ECC Registered DIMM (KCS-UC556D4-96G)

Kingston System-Specific Memory (Cisco) 96GB DDR5 5600MT/s ECC Registered DIMM (KCS-UC556D4-96G)

96GB of DDR5 5600MT/s ECC Registered memory for Cisco server platforms.

The Kingston KCS-UC556D4-96G is a 96GB DDR5 ECC Registered DIMM from the Kingston System-Specific Memory (Cisco) line. It runs at 5600MT/s with CL46 latency, uses a 2RX4 organisation built on 24Gbit DRAM, and operates at 1.1V in a 288-pin module.

Perfect for

• Virtualisation hosts adding memory capacity to run more virtual machines per server.
• Database servers supporting memory-intensive database workloads with ECC Registered modules.
• Cisco server upgrades expanding memory in Cisco systems with system-specific modules.
• Private cloud infrastructure building out DDR5 memory pools for consolidated enterprise workloads.

Why buyers choose this model

• High capacity per module. Each module provides 96GB of DDR5 memory.
• DDR5 5600MT/s speed. The module operates at 5600MT/s with CAS latency CL46.
• ECC Registered design. It is an ECC Registered DIMM intended for server memory configurations.
• 1.1V operation. The module runs at a voltage of 1.1V.
• 24Gbit DRAM density. It uses 24Gbit DRAM in a 2RX4 organisation on a 288-pin DIMM.

Key specifications

Specifications as published by Kingston for this part number. The full list is in the Specifications tab.
