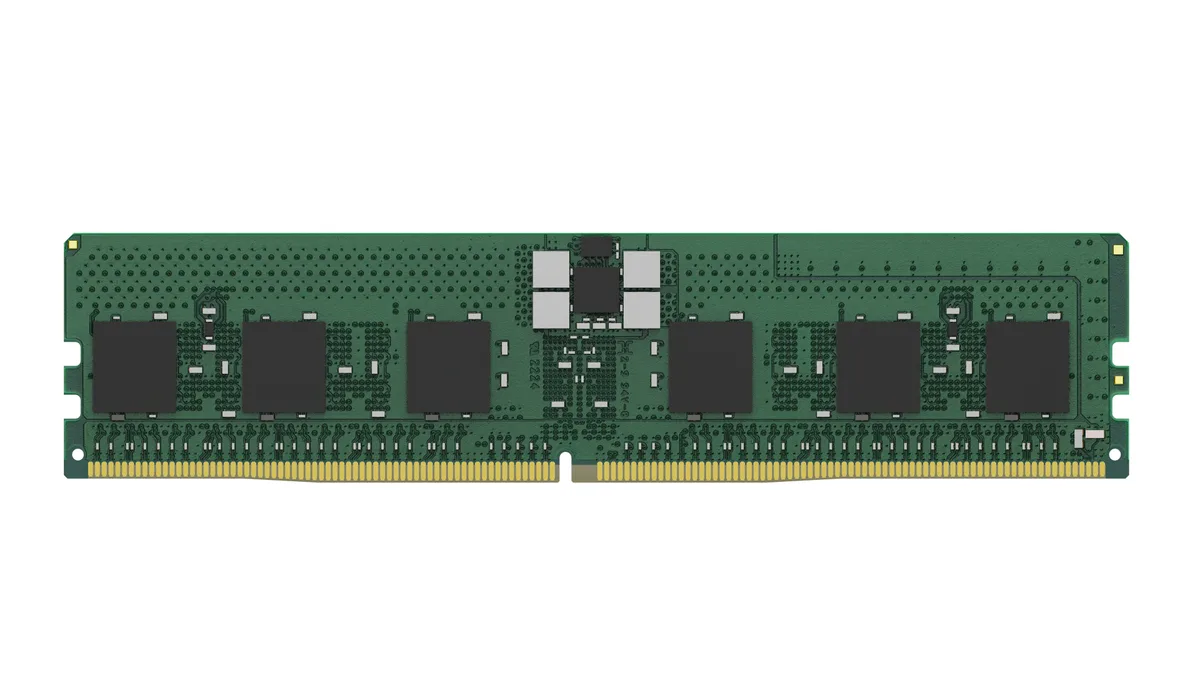

Kingston 16GB DDR5 6400MT/s ECC Registered DIMM (KTD-PE564S8-16G)

Kingston 16GB DDR5 6400MT/s ECC Registered DIMM (KTD-PE564S8-16G)

16GB of DDR5 6400MT/s ECC Registered memory for server workloads

The Kingston KTD-PE564S8-16G is a 16GB DDR5 ECC Registered DIMM rated at 6400MT/s with CL52 latency. This 288-pin, single-rank 1RX8 module operates at 1.1V and is built on 16Gbit DRAM. It suits server builds and upgrades that call for registered, error-correcting DDR5 memory.

Perfect for

• Virtualisation hosts adding ECC Registered DDR5 capacity for running multiple virtual machines
• Database servers supporting memory-intensive query and transaction workloads
• Server memory upgrades expanding DDR5 RDIMM capacity in existing server platforms
• Enterprise application servers providing error-correcting memory for business-critical services

Why buyers choose this model

• DDR5 bandwidth. The module is rated at a speed of 6400MT/s.
• ECC Registered design. It is an ECC Registered DIMM for server memory configurations.
• Low operating voltage. The module operates at 1.1V.
• Single-rank organisation. It uses a 1RX8 rank organisation built on 16Gbit DRAM density.
• Defined timing. The module is specified with CAS latency CL52.

Key specifications

Specifications as published by Kingston for this part number. The full list is in the Specifications tab.
