Brand: Kingston | Category: Memory (RAM)
SKU: KSM64R52BD8-32HA | Part #: KSM64R52BD8-32HA | MPN: KSM64R52BD8-32HA
Contact for Pricing — Request a Quote
32GB of DDR5 6400MT/s ECC Registered memory for data-intensive server workloads.
Quick facts

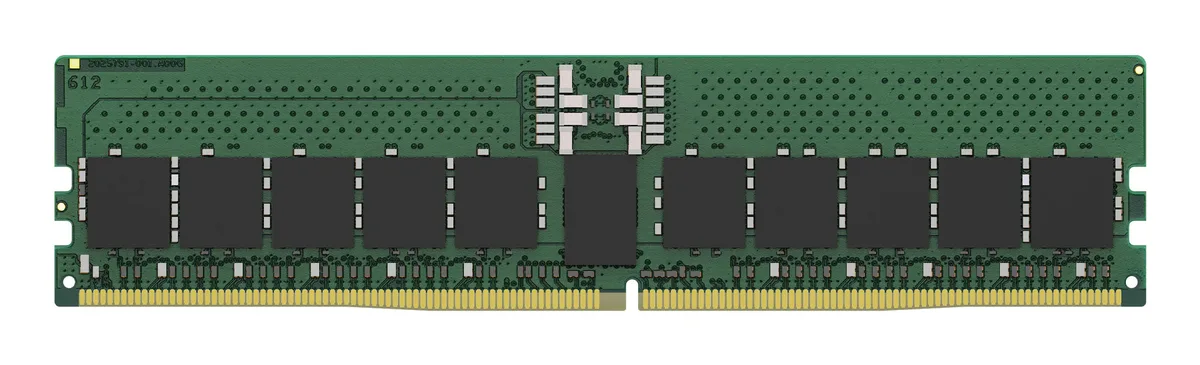

The Kingston Server Premier KSM64R52BD8-32HA is a 32GB DDR5 Registered DIMM rated at 6400MT/s with CL52 timing. Organised as 4G x 80-Bit in a 2Rx8 configuration, it uses twenty 2G x 8-bit FBGA components built on Hynix A-die 16Gbit DRAM. The 288-pin module combines On-Die ECC with x80 ECC across two independent I/O sub channels.
| Manufacturer part number | KSM64R52BD8-32HA |
| Capacity | 32GB |
| Organisation | 4G x 80-Bit, 2Rx8 |
| Type | PC5-6400 CL52 Registered EC8 288-Pin DIMM |
| Speed | DDR5 6400MT/s |
| CAS Latency | CL52 (52-52-52) |
| Components | twenty 2G x 8-bit FBGA components |
| DRAM | Hynix (A-DIE), 16Gbit |
| Voltage | VDD = 1.1V Typical; VDDQ = 1.1V Typical; VPP = 1.8V Typical; VDDSPD = 1.8V to 2.0V |
| ECC | On-Die ECC; x80 ECC (x40, 2 independent I/O sub channels) |
| Internal banks | 32 |
| Row Cycle Time (tRCmin) | 48ns(min.) |
Specifications as published by Kingston for this part number. The full list is in the Specifications tab.
Single units or project quantities. Tell us the quantity and destination and our team will reply with a quotation within 48 hours.
Request a QuoteTalk to our team
Manufacturer part number: KSM64R52BD8-32HA
Omnixon Global is an enterprise IT and computer hardware supplier based in Dubai, UAE, serving system integrators, resellers and IT teams across the UAE, GCC, Africa, Europe and Asia-Pacific. Request a quote or contact our team to discuss your requirements.
| Brand | Kingston |
| Category | Memory (RAM) |
| SKU | KSM64R52BD8-32HA |
| Part Number | KSM64R52BD8-32HA |
| Condition | New |
| Capacity | 32GB |
| Form Factor | 288-Pin Registered DIMM |
| Interface | DDR5 |
| Speed | 6400MT/s |
| Manufacturer Part Number | KSM64R52BD8-32HA |
| Capacity | 32GB |
| Organisation | 4G x 80-Bit, 2Rx8 |
| Type | PC5-6400 CL52 Registered EC8 288-Pin DIMM |
| Speed | DDR5 6400MT/s |
| CAS Latency | CL52 (52-52-52) |
| Components | twenty 2G x 8-bit FBGA components |
| DRAM | Hynix (A-DIE), 16Gbit |
| Voltage | VDD = 1.1V Typical; VDDQ = 1.1V Typical; VPP = 1.8V Typical; VDDSPD = 1.8V to 2.0V |
| ECC | On-Die ECC; x80 ECC (x40, 2 independent I/O sub channels) |
| Internal banks | 32 |
| Row Cycle Time (tRCmin) | 48ns(min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 295ns(min.) |
| Row Active Time (tRASmin) | 32ns(min.) |
| Row Precharge Time (tRPmin) | 16ns(min.) |
| PCB Height | 1.23” (31.25mm) |
| Operating Temperature | 0°C to +95°C |
It is a Kingston Server Premier 32GB DDR5 6400MT/s ECC Registered DIMM with CL52 latency, 2Rx8 organisation and Hynix A-die 16Gbit DRAM.
It is a 288-pin DDR5 Registered DIMM (PC5-6400 CL52 Registered EC8) with a PCB height of 1.23” (31.25mm), operating at 1.1V VDD typical.
Yes. We handle single units as well as project and volume requests from system integrators, resellers and IT teams. Quotes are prepared for your quantity and destination, and one RFQ can cover several part numbers.
Within 48 hours. Send the part number and quantity through the RFQ form and our team will reply with a quotation.
We are based in Dubai, UAE, and supply buyers across the UAE, the GCC, Africa, Europe and Asia-Pacific. Shipping method, lead time and documentation are confirmed in your quotation.
