Brand: Kingston | Category: Memory (RAM)
SKU: KSM64R52BS8-16HA | Part #: KSM64R52BS8-16HA | MPN: KSM64R52BS8-16HA
Contact for Pricing — Request a Quote
16GB of DDR5-6400 registered ECC memory for data-centre servers.
Quick facts

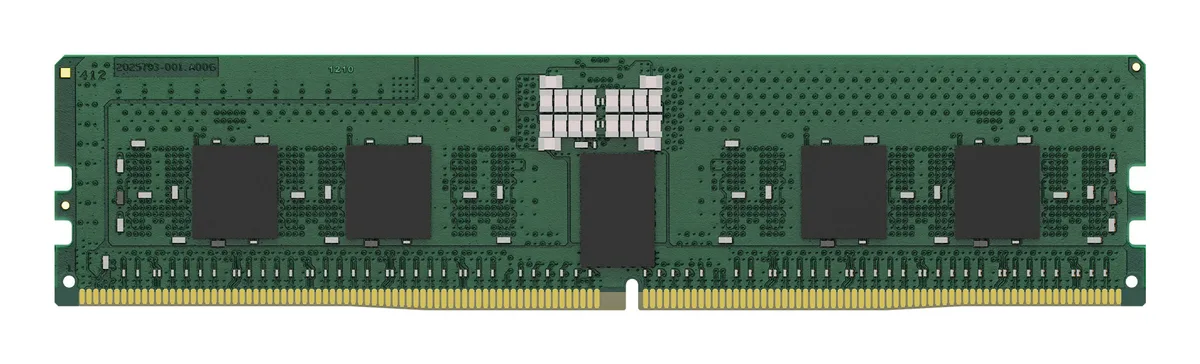

The Kingston KSM64R52BS8-16HA is a 16GB DDR5-6400 registered ECC 288-pin DIMM from the Server Premier line, organised as 1Rx8 2G x 80-bit. It runs at CL52 with 52-52-52 timing at 1.1V and is built with ten 2G x 8-bit FBGA components using Hynix A-die DRAM. On-die ECC is combined with x80 ECC across two independent 40-bit I/O sub-channels.
| Manufacturer part number | KSM64R52BS8-16HA |
| Capacity / Organisation | 16GB 1Rx8 2G x 80-Bit |
| Type | PC5-6400 CL52 Registered EC8 288-Pin DIMM |
| Speed | DDR5-6400 |
| CAS Latency | 52 cycles |
| Timing | 52-52-52 at 1.1V |
| Components | ten 2G x 8-bit FBGA components |
| DRAM | Hynix (A-DIE) |
| Row Cycle Time (tRCmin) | 48ns(min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 295ns(min.) |
| Row Active Time (tRASmin) | 32ns(min.) |
| Row Precharge Time (tRPmin) | 16ns(min.) |
Specifications as published by Kingston for this part number. The full list is in the Specifications tab.
Single units or project quantities. Tell us the quantity and destination and our team will reply with a quotation within 48 hours.
Request a QuoteTalk to our team
Manufacturer part number: KSM64R52BS8-16HA
Omnixon Global is an enterprise IT and computer hardware supplier based in Dubai, UAE, serving system integrators, resellers and IT teams across the UAE, GCC, Africa, Europe and Asia-Pacific. Request a quote or contact our team to discuss your requirements.
| Brand | Kingston |
| Category | Memory (RAM) |
| SKU | KSM64R52BS8-16HA |
| Part Number | KSM64R52BS8-16HA |
| Condition | New |
| Capacity | 16GB |
| Form Factor | 288-Pin RDIMM |
| Interface | DDR5 |
| Speed | DDR5-6400 |
| Manufacturer Part Number | KSM64R52BS8-16HA |
| Capacity / Organisation | 16GB 1Rx8 2G x 80-Bit |
| Type | PC5-6400 CL52 Registered EC8 288-Pin DIMM |
| Speed | DDR5-6400 |
| CAS Latency | 52 cycles |
| Timing | 52-52-52 at 1.1V |
| Components | ten 2G x 8-bit FBGA components |
| DRAM | Hynix (A-DIE) |
| Row Cycle Time (tRCmin) | 48ns(min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 295ns(min.) |
| Row Active Time (tRASmin) | 32ns(min.) |
| Row Precharge Time (tRPmin) | 16ns(min.) |
| Power Supply | VDD = 1.1V Typical; VDDQ = 1.1V Typical; VPP = 1.8V Typical; VDDSPD = 1.8V to 2.0V |
| ECC | On-Die ECC; x80 ECC (x40, 2 independent I/O sub channels) |
| Internal banks | 32 internal banks |
| Features | Hard/Soft Post Package Repair; Sideband access with I3C/I2C |
| PCB Height | 1.23” (31.25mm) |
It is a Kingston Server Premier 16GB DDR5-6400 registered ECC DIMM, 1Rx8, CL52 at 1.1V, built with Hynix A-die DRAM.
It is a PC5-6400 registered EC8 288-pin DIMM (RDIMM) with a PCB height of 1.23" (31.25mm), operating at 1.1V VDD/VDDQ.
Yes. We handle single units as well as project and volume requests from system integrators, resellers and IT teams. Quotes are prepared for your quantity and destination, and one RFQ can cover several part numbers.
Within 48 hours. Send the part number and quantity through the RFQ form and our team will reply with a quotation.
We are based in Dubai, UAE, and supply buyers across the UAE, the GCC, Africa, Europe and Asia-Pacific. Shipping method, lead time and documentation are confirmed in your quotation.
